Gipo H369e Screen Replacement

ID: 50136

Description:

Steps:

  1. Insert your thumb into the groove on the back lefthand corner of the phone to unsnap the back cover.
  2. Step image Step image
  3. Remove the battery from the back of the phone.
  4. Step image

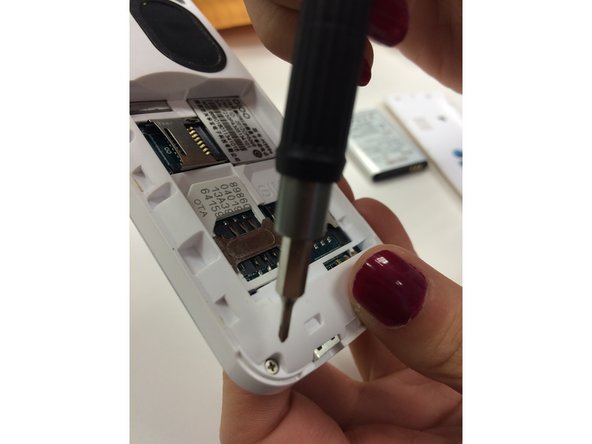

  5. Unscrew the 6 screws on the back of the phone using the Philips Head 000 screwdriver.
  6. You can use the back cover as a tray to hold the loose screws.
  7. Step image Step image
  8. Use the plastic opening tool to pry the front of the phone away from the back of the phone.
  9. Step image Step image

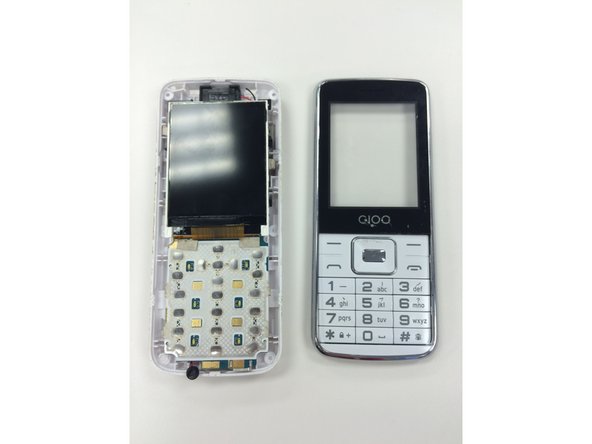

  10. Once the front and back of the phone are separated, push the keypad out of the front portion of the phone.
  11. Step image

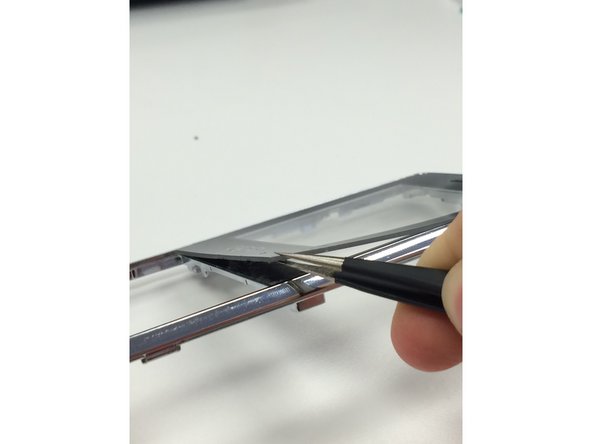

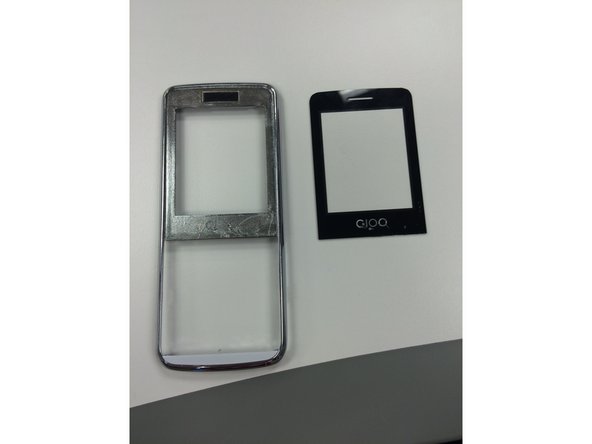

  12. Use the needle nose pliers to pull the screen away from the front of the disassembled phone. Replace it with your new screen.
  13. Step image Step image Step image
