How to Repair a Vintage Handheld 'Bricks' Video Game

ID: 56405

Description: Since the vintage hand-held 'Bricks/Tetris'...

Steps:

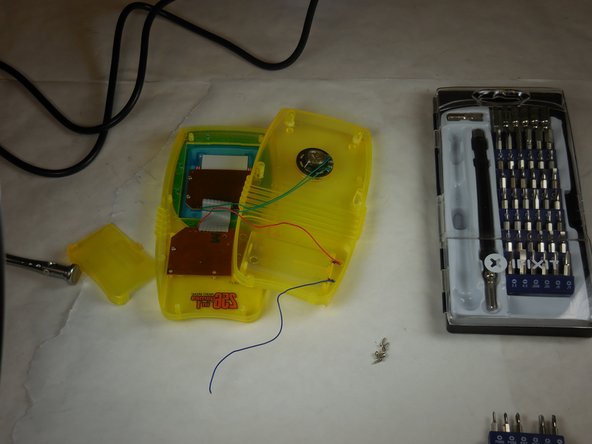

1. Use a Phillips 1 screwdriver to unfasten the four screws from the back of the case.
2. Remove the battery cover to expose the two remaining screws that hold the case together.

3. Unfasten the last two screws, and open the case.

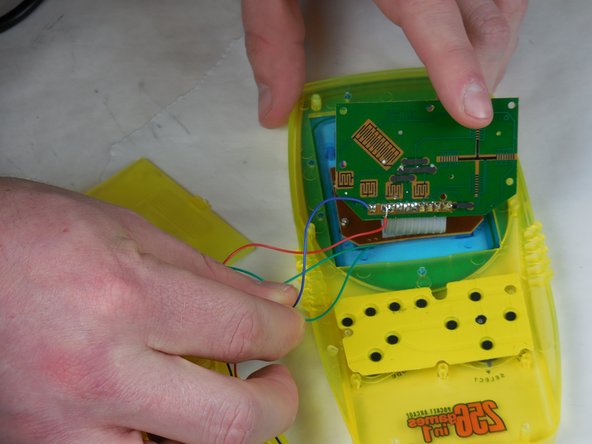

4. Identify the wire(s) which have been disconnected, and identify their original location.
5. If two or more wires were disconnected, use two AA batteries to verify the correct wiring. The game’s starting melody will be audible if the wiring is correct.

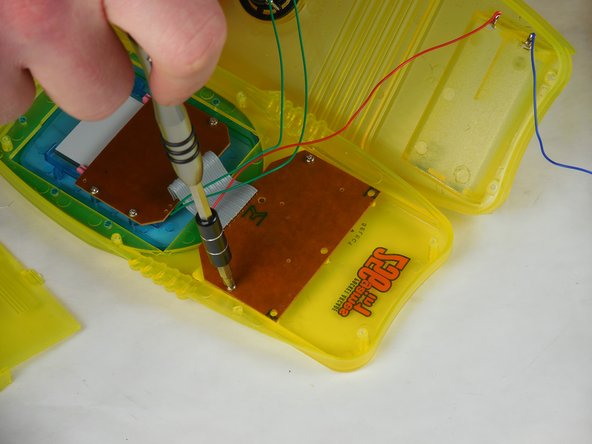

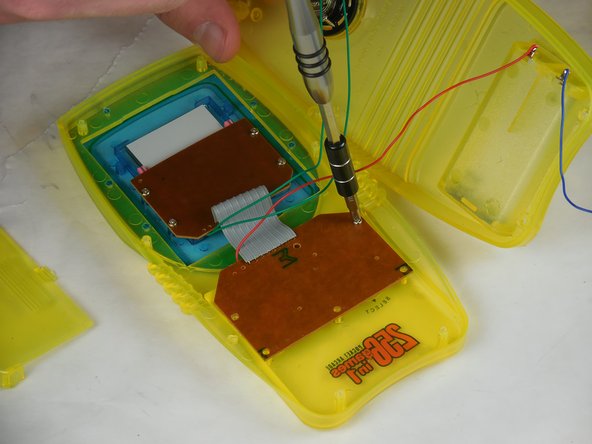

6. Using the same Phillips 1 screwdriver, unfasten the two smaller screws holding the controller board to the case .
7. Remember the position of the screws; take a picture if need be.

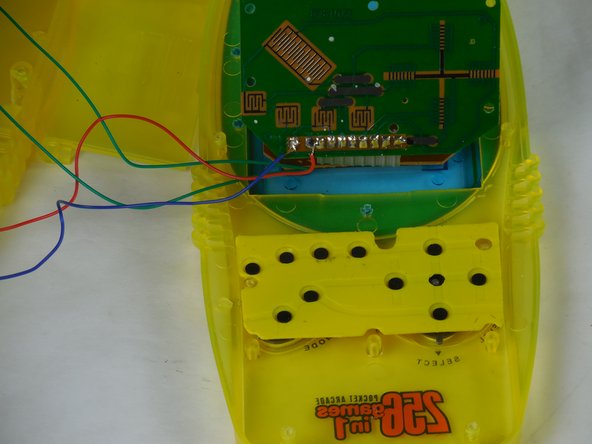

8. Verify that the detached wire(s) reach the intended destination.

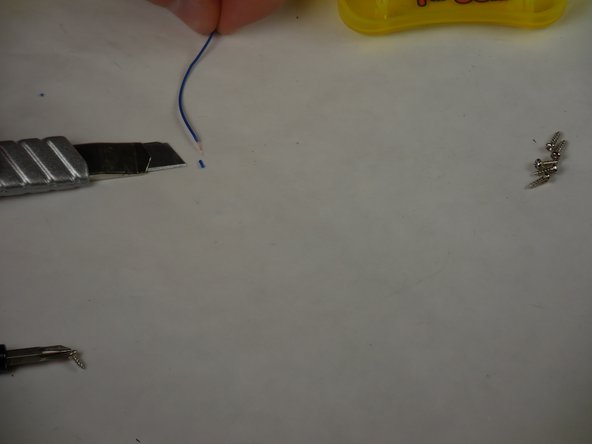

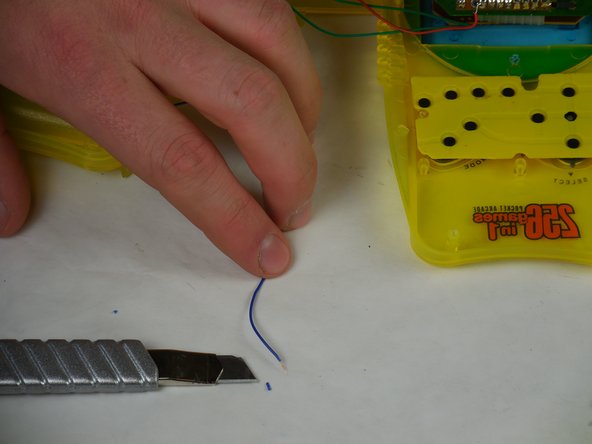

9. Use a blade or wire stripper to strip 0.5 cm of insulation off the end of the wire(s) to be soldered.
10. Sharp tool!

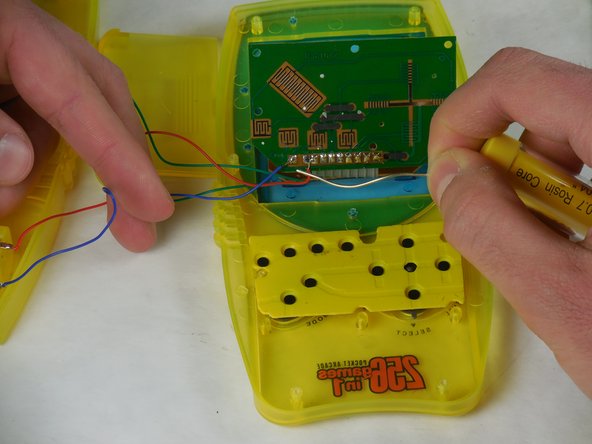

11. Re-solder the disconnected wire to the proper joint.
12. Lightly tug on the newly soldered wire to confirm a reliable solder joint.
13. Refer to How To Solder and Desolder Connections if needed.
14. Hot iron! Noxious fumes!

15. Assembly is the reverse of disassembly.
16. Install two AA batteries, and verify audibility of the game prior to reassembly.
