BLU Studio 7.0 II Microphone Replacement

ID: 65234

Description: This guide provides steps on how to replace the...

Steps:

  1. Locate the seam between the black and silver pieces of the phone.
  2. Insert a plastic opening tool into the seam and firmly pry the black back piece away from the silver front piece.
  3. To create the initial separation for the plastic opening tool, you may need to use either a spudger or metal spudger. If you use a metal spudger, be aware this can damage your phone if you aren't careful.
    4. Step image
  4. Work your way around the edge of phone, firmly prying the pieces apart.
    5. Step image
  5. Once the back has been removed, you can snap the new one into place by pressing firmly around the edges with your fingers.
    6. Step image Step image
  6. Using the PH00 screw driver, remove the two 3mm screws.
  7. These screws may be covered by small, round black stickers. Remove the stickers to continue.
  8. Remove the metal clip that connects the battery ribbon to the motherboard by lifting up. Precision tweezers work best for this part.
  9. Be sure to only grab the metal clip with the tweezers, not the connector underneath.
    10. Step image Step image
  10. Disconnect the battery connector using a plastic opening tool or the flat end of a spudger.
    11. Step image
  11. Remove two 3mm screws from the bottom black panel.
    12. Step image

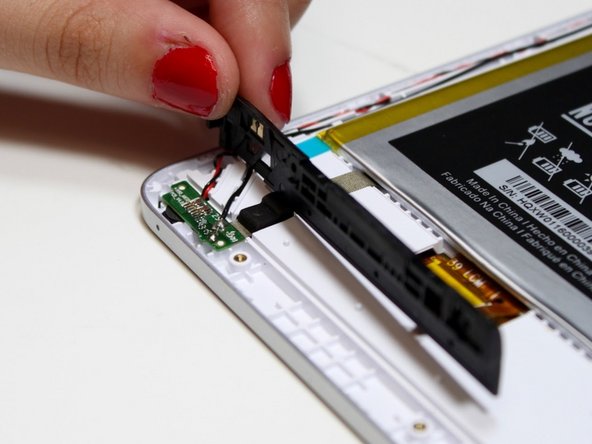

  12. Use the flat end of the black spudger to gently lift up the black plastic piece.
  13. Rest the plastic piece against the back of the phone.
  14. The black plastic piece is connected to the phone by a circuit ribbon. Be careful not to pull too hard or you may break this ribbon.
    15. Step image Step image

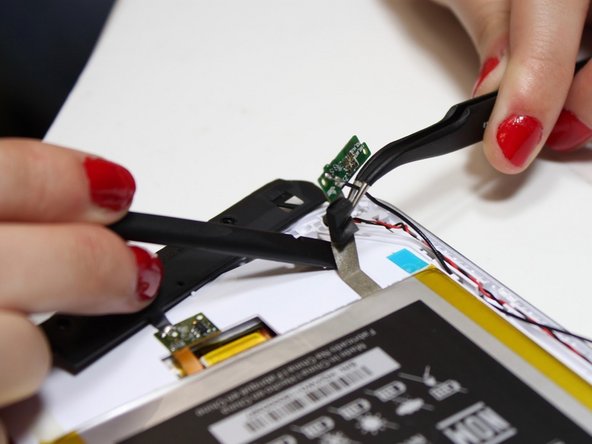

  15. Use the precision tweezers to grip the micro-circuit board. Lift straight up.
  16. The micro-circuit board is connected to the silver adhesive strip. You'll have to gently peel this strip back to get the micro-circuit board to move far enough to get to the microphone.
    17. Step image Step image

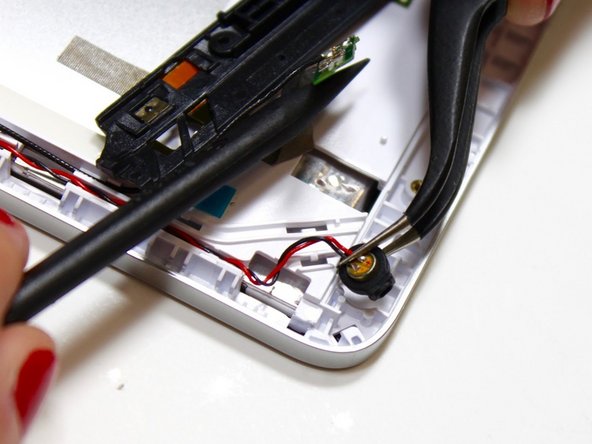

  17. Use the precision tweezers to grip the silicone around microphone and pull it from the plastic housing.
    18. Step image Step image
  18. The silicone around the microphone comes off easily; grip the red and black wires gently with either your fingers or a precision tweezer and use your other hand to pull off the black silicone piece.
  19. Desolder the contacts for the red and black wires to disconnect the microphone.
  20. For more information on soldering, view the Soldering Wiki page.
    21. Step image
