Vtech Emil the Panda

ID: 65287

Description: When Emil won't work well, deoxidize the spring...

Steps:

1. First you must detach thes round yellow plugs which cover the screws.
2. There are 6 short screws around the "display"
3. ...and two longer screws under that "display"

4. Here a view of these screws

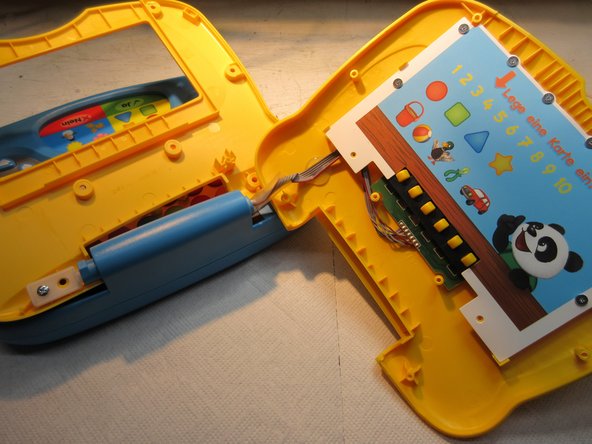

5. Now just pull it to open.
6. Down there is a spring and a plastic part, look at the pictures

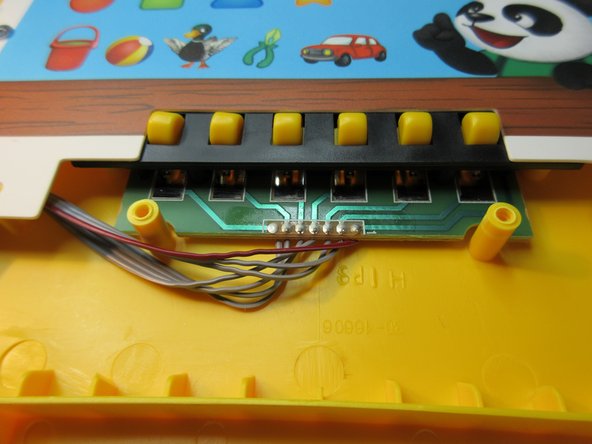

7. There you have these contact springs.

8. The springs are deoxidized with a electronics-cleaner-spray.
9. After reassembling, Emil nnow knows every card and can talk and sing.
10. Done. :)
