Huawei ascend G700 Touchscreen Display Replacement

ID: 65492

Description: An outline to teach others what they are about...

Steps:

1. Remove the back cover and battery

2. Remove the indicated screws

3. unhook Central frame using a thin tool behind joints along the entire perimeter of the phone

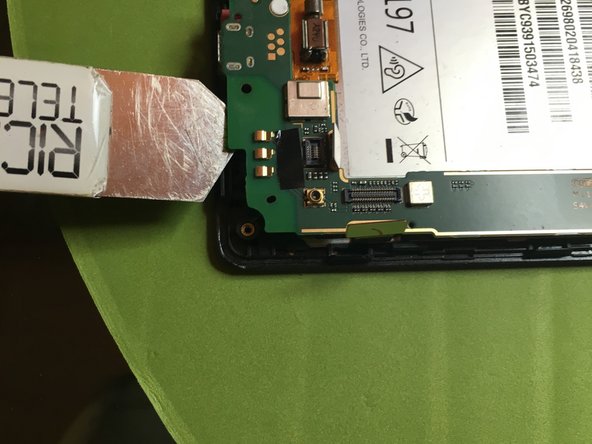

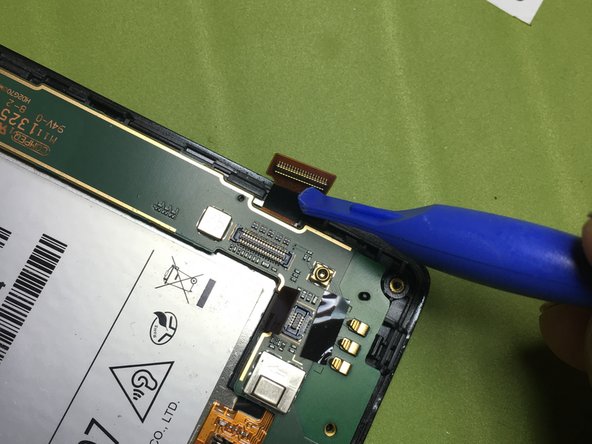

4. Unplug the touchscreen connector.
5. Unplug the motherboard connector.
6. Unplug the side volume key connector.

7. Unplug the display connector.
8. Unplug the camera connector.

9. Unplug the motherboard.

10. Remove the camera with a heat source because it's glued to the bottom.
11. Remove the motherboard from the main body of the phone.
12. Remove the power button using a heat source.

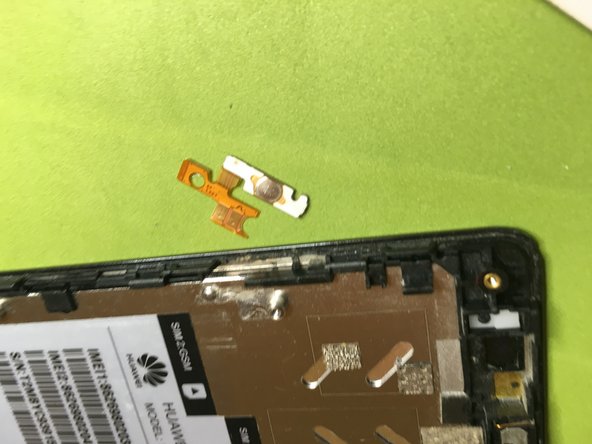

13. Remove the volume key using a heat source.

14. Remove the speaker cover.
15. Using a heat source, delicately remove the daughterboard.

16. Remove the speaker using a heat source.
17. Remove the technical adhesive strips using a heat source.
