1992-1999 BMW 3 Series Oil Replacement

ID: 66245

Description: How to change the oil in your E36 BMW. It is...

Steps:

  1. Open the hood of the car by first pulling the black lever located in the drivers side footwell.
  2. Lift upward on the latch located underneath the hood to release the hood.
  3. Step image Step image
  4. Jack up the car using the jack points located underneath the sides of the car.
  5. Tip: it is advised to use Jackstands to support the car in case of jack failure.
  6. Tip 2: It may only be necessary to lift one corner of the car in order to change the oil. The right front jack point seems to be the best for this.
  7. Step image Step image

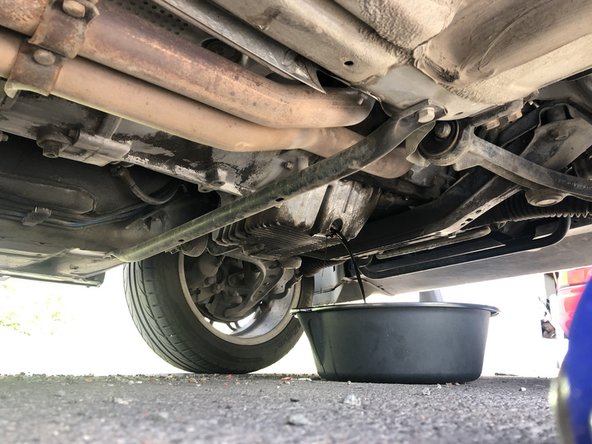

  8. Place the oil pan underneath the plug

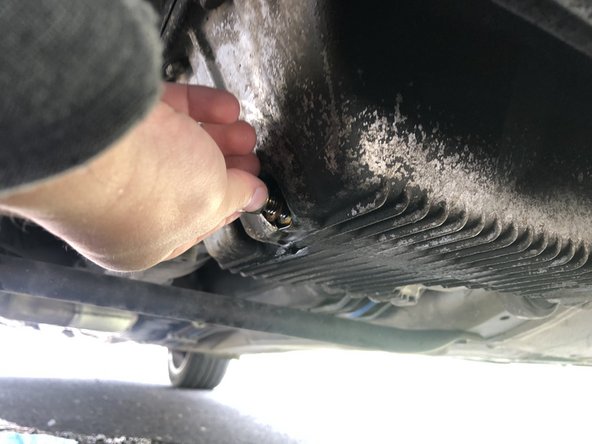

  9. Using a 17mm socket, remove the drain plug.
  10. Allow the oil to fully drain into the oil pan.
  11. Reinstall the drain plug after the the oil stops dripping from the drain hole.
  12. Step image Step image Step image

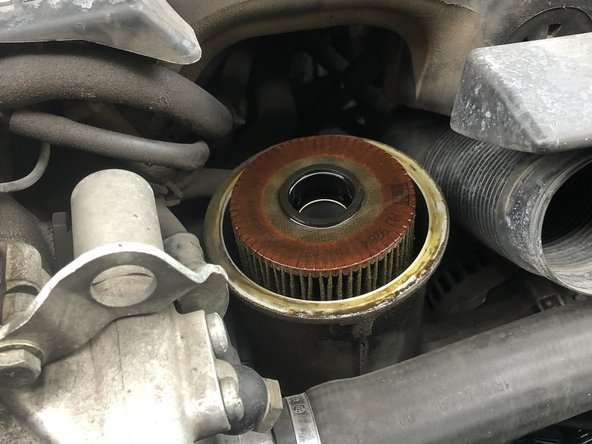

  13. Remove the Oil Filter Housing bolt using a 13mm socket. Lift upwards on the oil filter housing cap to remove it.
  14. Lift the old oil filter straight up to remove it. Place a towel underneath it as you lift to catch any dripping oil.
  15. While the oil filter is out, inspect the gaskets on the oil filter housing cap and bolt. Replace if necessary.

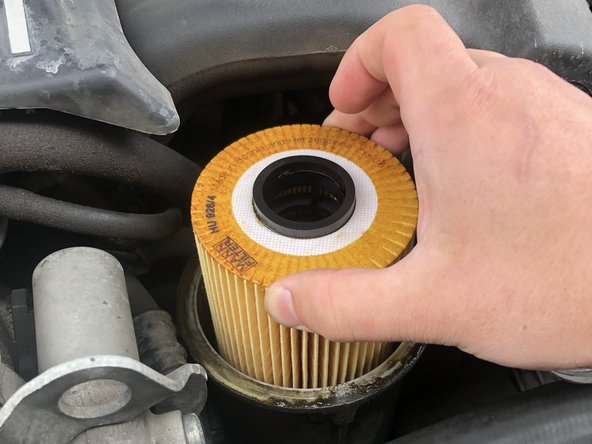

  16. Install the new oil filter and reinstall the oil filter housing.
  17. Step image Step image Step image
  18. Remove the oil filler cap and slowly pour seven quarts of oil into the engine.

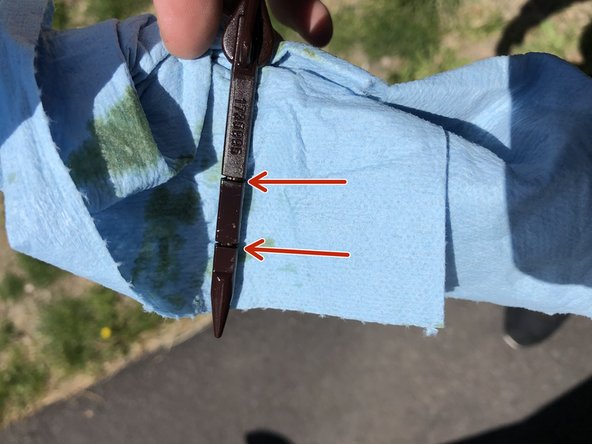

  19. Pull the Dipstick out and inspect the oil level. The oil level should be between the two marked lines.
  20. Step image Step image Step image
