De' Longhi CTOV 2103- AZ

ID: 67075

Description: I show how it is opened.

Steps:

1. First unplug the cable. ...Pull off the lever, it is snapped in.
2. Pull out the drawer.
3. Now clean it with a vacuum.
4. On the underside are 4 screws Torx 10 resistant visible - in each corner one.

5. Detail of the screw

6. here you have two pictures of the housing and the chrome plastic frame.

7. Here you have details of the lever and how it is snapped in the mechanic.

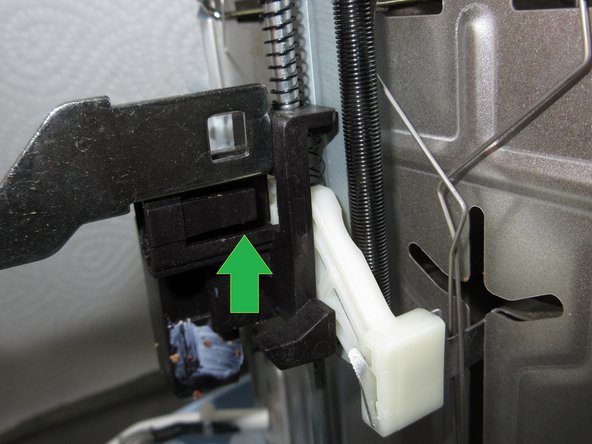

8. This shows you how to unlock it when you dismantle the housing. Good luck. ;)

9. Detail of the Sensor: It is the little black pearl at the black hoses which is strapped to the white hose.

10. The connector from the main platine to the switch platine.

11. Details of the plug and the bottom part after disassembly.
12. Where to find the plug for the yellow ground wire i show you in the next step. :)

13. here you can see where the yellow cable belongs to.

14. Reassembly: Putt all cables at the right places, don't forget the yellow cable at the housing !!!
15. Look at the picture how to fit in the metal notch in the right place !

16. Here the notch is in the right place.
17. Do NOT forget to make an insulation test. Check the wiring with a multimeter.
18. Made in China.
19. Hope it was fun and may the pictures help you. Greets. :)
