Nikon D90 Replacing the SB / IF card

ID: 67100

Description: Replacing the board holding the GPS, DC in and ...

Steps:

1. Remove the three screw in red
2. Remove the three long screw in orange

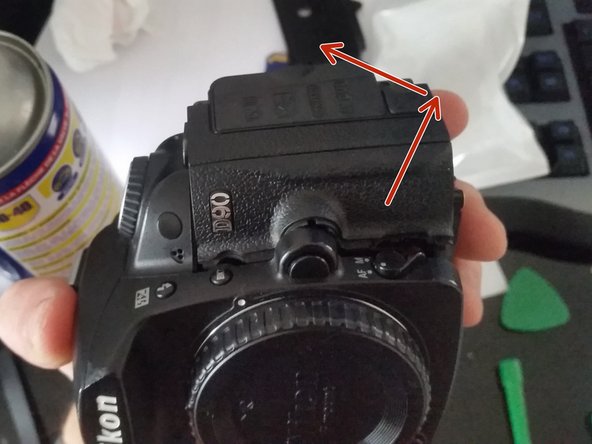

3. Remove the screw in yellow
4. Use a little of WD40 if the screw is blocked

5. Remove the 4 screw in green
6. Remove the 2 screw in yellow

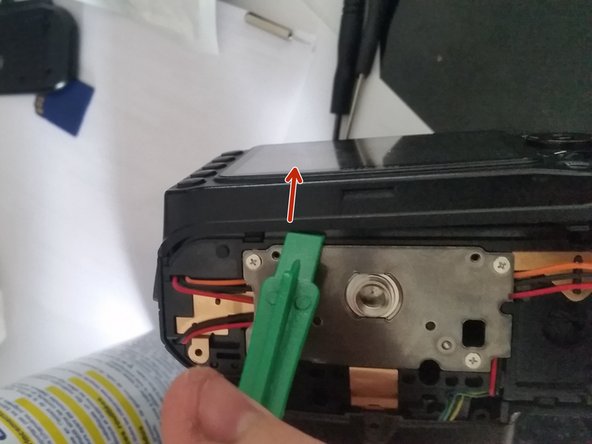

7. Slacken the grip side of the cover first
8. Remove the cover wholly.

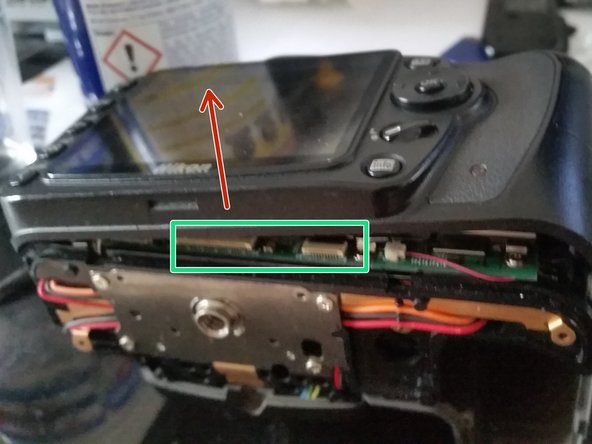

9. Be carefull with the two flex cables

10. Disconnect the FPC of the back cover
11. Toggle up the black plate to free the flex cable
12. Remove the grip cover by rotating

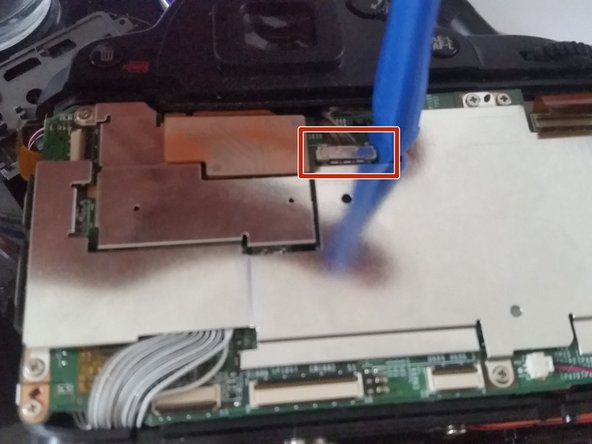

13. Toggle up the black plate and disconnect the flex cable
14. Toggle up the white plate and disconnect the flex cable
15. Push up the right slide of the connector to free it

16. Push up the bottom of the connector to free it

17. Remove the six screws to free the protection plate

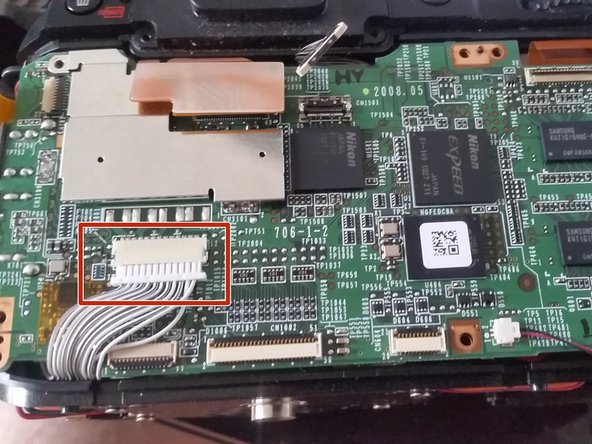

18. Disconnect the white cables
19. Disconnect the microphone Cable

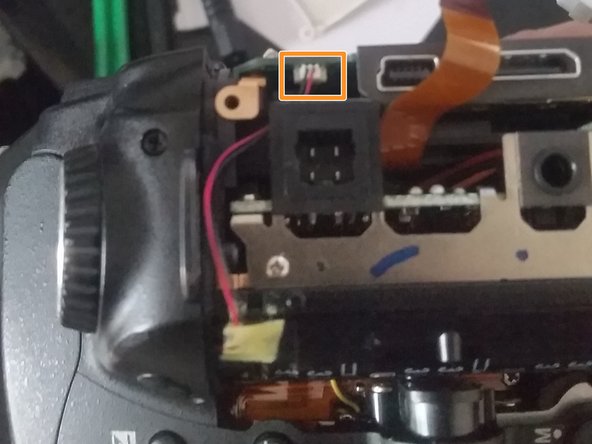

20. Disconnect the speaker cable

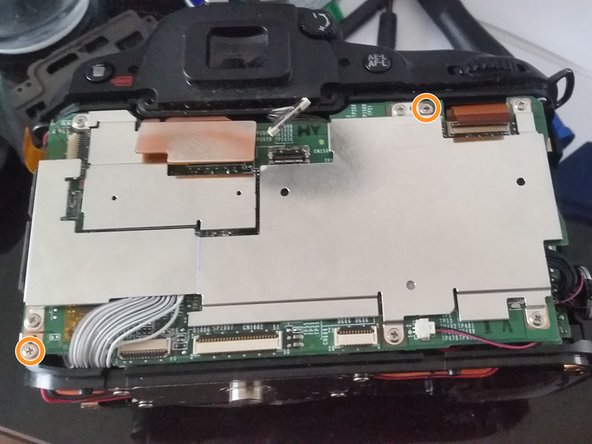

21. Remove the two screws to free the PCB
22. Toggle th PCB from Left to Right

23. Disconnect the black cables

24. Remove the two screws

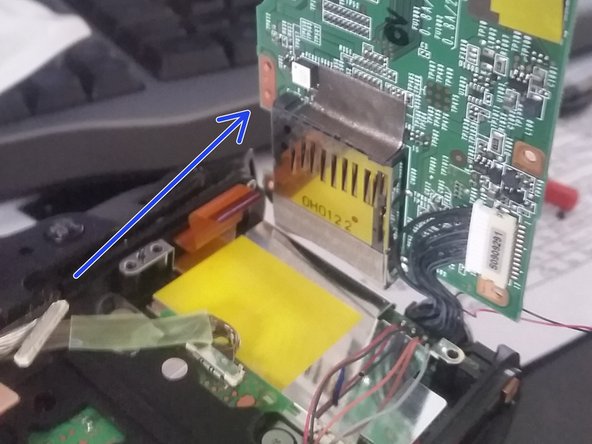

25. Push the IF/SB PCB

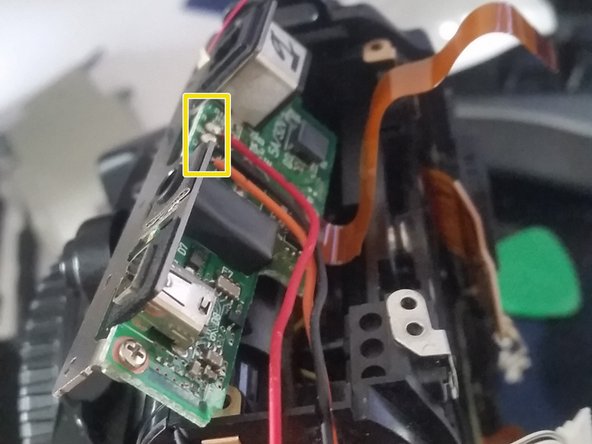

26. Unsolder the 3 Wires ( Red, Black, Orange )
