Samsung ML2510 Side Cooling Fan Replacement

ID: 6911

Description: This guide will require you to disassemble the...

Steps:

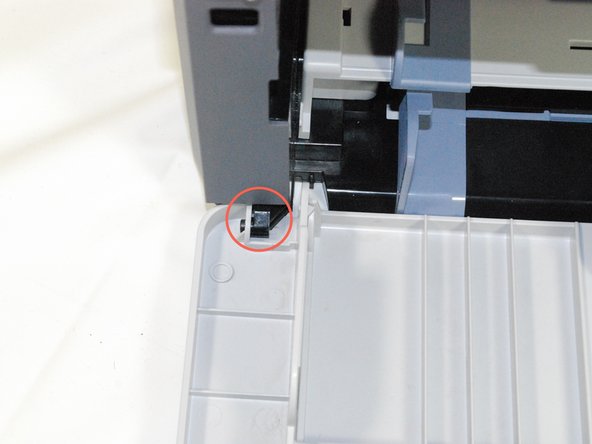

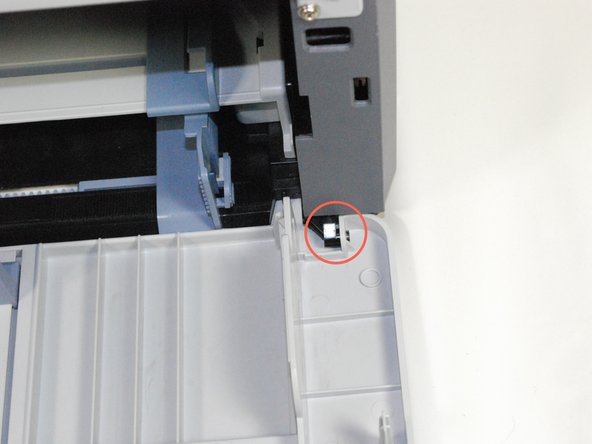

1. Remove the top hinged panel by taking out the pins at the bottom of this panel.

2. Using a Phillips #2 screwdriver, remove the four screws on the back of the printer.

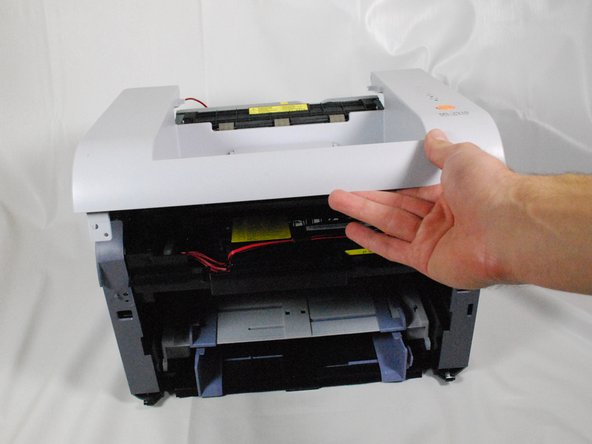

3. Gently lift the top panel while simultaneously pulling off the back panel.
4. Before pulling out the back panel entirely, make sure to remove the rear cooling fan from its slot.

5. Locate the holes on the panel that are attached to the main body.
6. Remove the front panel by gently moving the holes from the pegs one by one.

7. Using a Phillips #2 screwdriver, remove the two 1" screws on the front face of the printer.

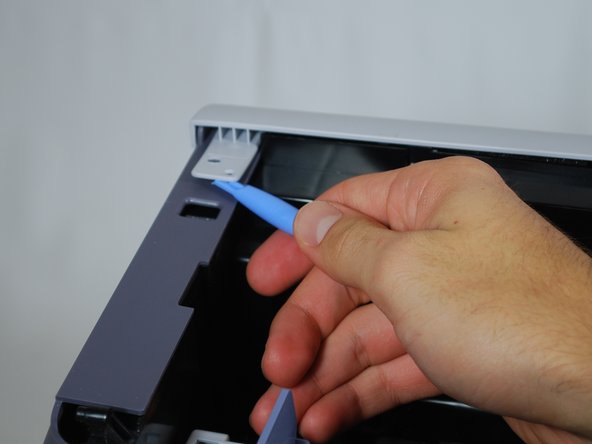

8. Using a plastic opening tool, gently lift one side of the top panel from its peg.
9. Repeat process for the other side.
10. Lift the top panel from the front to remove it entirely.

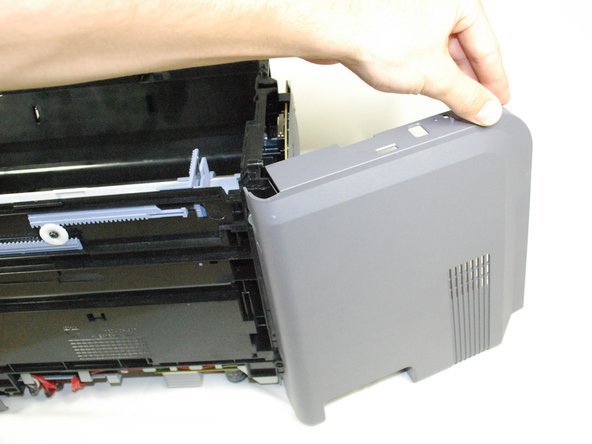

11. Lift the right side-panel up from the raised stops.
12. Gently rotate the panel as indicated in the picture to remove the panel entirely.

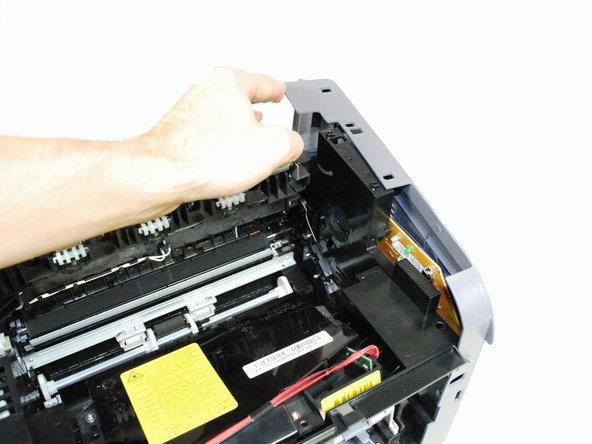

13. Poke out the side fan from the inside of the printer.

14. Unplug the fan's wires from the side circuit board.
15. Replace the fan and reassemble the printer using reverse procedures.
