Kyocera Opal S14 Display Panel Replacement

ID: 6968

Description: The Kyocera Opal S14 is a reliable mobile...

Steps:

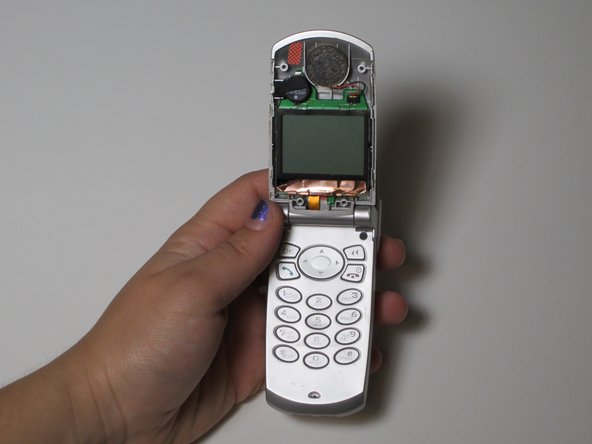

1. Open the phone and power off the device.
2. Remove the SIM and SD cards.

3. Place the phone face-up with the display facing you.
4. Use a Phillips #00 to remove the four screws.

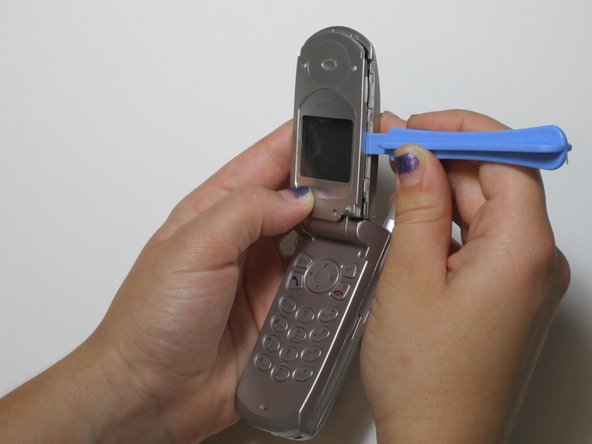

5. Starting at the corner, use the iFixit prying tool and gently insert it between the edge of the screen and the frame.
6. Apply gentle pressure and slowly pry the screen away.
7. Work your way around the edge of the device in a circular motion.
8. Make sure the screen is lifting evenly from all sides.

9. After working your way around the screen with the prying tool, gently lift the display panel from the frame.
10. As you lift the screen, you'll start to expose the bottom parts of the phone, be careful not to pull the screen away too quickly, as it is still connected to the device via cables.
