Nokia N70 Back Camera Replacement

ID: 7000

Description:

Steps:

1. Orient the phone as shown.
2. Press the button with the plastic opening tool and slide the back case downward relative to the phone.

3. Remove the battery cover by lifting it away from the phone.

4. Insert the plastic opening tool into the marked space.
5. Lift up the side of the battery closest to the bottom edge of the phone using the plastic opening tool.

6. Remove the battery from the phone.

7. Insert the plastic opening tool in the marked areas in between the front and back covers.
8. Pry each corner with the plastic opening tool until the front case completely detaches.

9. Orient the phone so that the keypad is facing you.
10. Remove the keypad by lifting it away from the phone.

11. Using T6 Torx screwdriver remove the six 15 mm torx screws.

12. Separate the front panel from the back by lifting the bottom of the front panel at a 45 degree angle.
13. Remove the front panel by lifting the panel away from the phone at a 45 degree angle.

14. Locate the rear circuit board by flipping over the front panel.

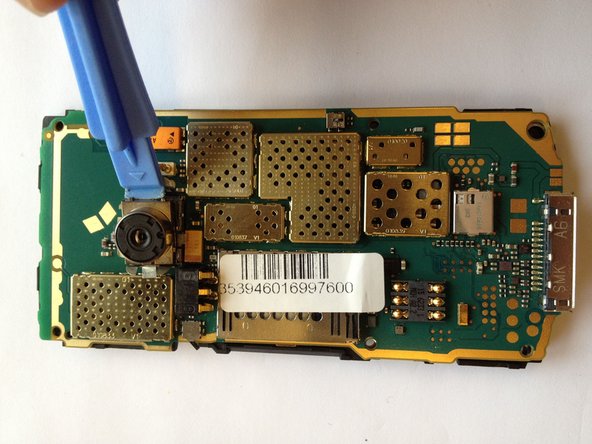

15. Locate the rear camera and by using the plastic opening tool, gently lift the camera out of the slot.
16. Caution: Be careful when prying camera out of the slot for the connections are fragile.
