Sony Tablet S Battery Replacement

ID: 72792

Description: This guide will help users replace the battery...

Steps:

  1. Ensure that the device is completely turned off before attempting a repair. The battery may still have charge; use caution touching the components.
  2. Use a plastic opening tool to remove the two rubber grips on the back of the tablet.
    3. Step image Step image
  3. Remove the two 10mm Phillips #0 screws located under the grips.
    4. Step image
  4. Flip the tablet over and use a plastic opening tool to pry the casing away from the top of the screen. Push the back cover off.
  5. There is adhesive holding the case on located at the top of the screen. Push the casing toward the top of the screen while also wiggling it back and forth.
    6. Step image Step image
  6. Once the casing is off, remove the nine 5mm Phillips #0 screws shown.
    7. Step image
  7. Remove the white ribbon cable by pulling the blue tab straight up out of the socket and then peeling up the tape securing it to the tablet.
  8. Use caution when removing the cable, as the socket is very fragile.
    9. Step image
  9. Remove the copper ribbon cable by gently using a spudger to pry it up from its socket.
  10. Use caution when removing the cable, as the socket is very fragile.
    11. Step image
  11. Slide the bottom grey cover piece away from the body and remove it.
  12. If this piece gives resistance, use a spudger on the sides of the tablet to pry it loose.
    13. Step image
  13. Remove the five 4mm Phillips #000 screws.
  14. Remove the two 5mm Phillips #000 screws holding the charger in place.
    15. Step image
  15. Position the charging port at an angle so you can thread it through the opening as you remove the black plastic cover from the back of the tablet.
  16. If the cover is not coming off easily, use a plastic opening tool to pry it loose from the edges of the screen.
    17. Step image Step image Step image
  17. Use a spudger to lift the zero insertion force connector latch for the long ribbon cable to the right of the battery, then pull the cable loose from its socket.
  18. Use caution when removing the cable, as the socket is very fragile.
    19. Step image Step image
  19. Remove the three 5mm Phillips #0 screws securing the original battery.
    20. Step image

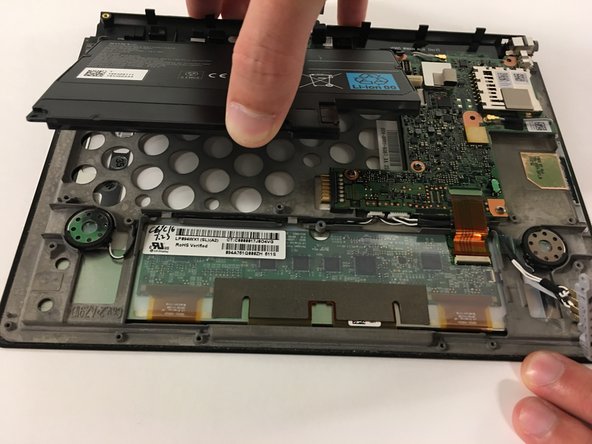

  20. Use the spudger to pop the battery loose and remove the battery.
    21. Step image Step image
