e-lite web150 Disassembly

ID: 72833

Description: Im going to show how to open a leaf blower and...

Steps:

1. Firmly press the yellow button and slide the blower nozzle off.

2. un-screw all of the screws

3. pull apart the 2 halves

4. This is the inside of the blower

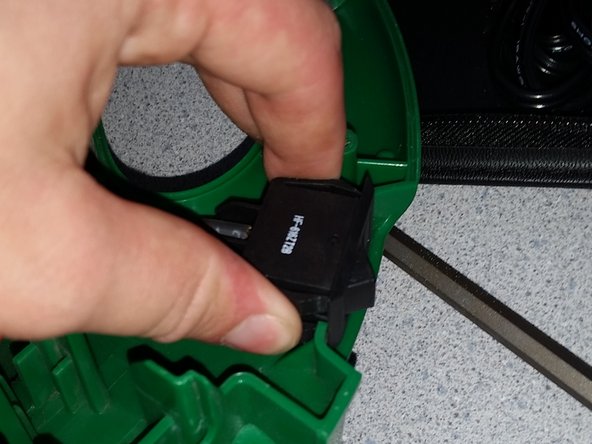

5. gently pull out the power plug and switch

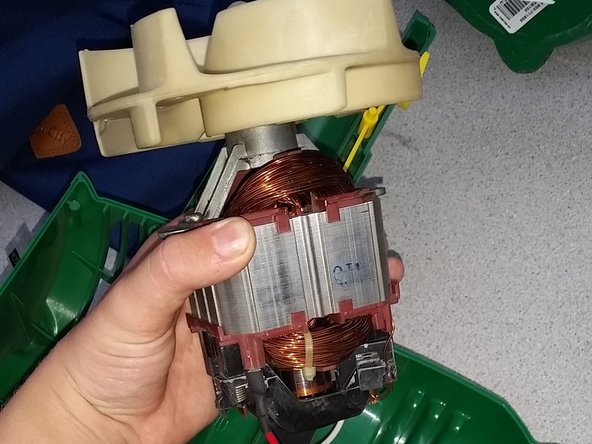

6. gently pull out the motor paying attention to which side it came out of.

7. clean the dust out if you need to. then carefully put the motor back in making sure you put both of the tabs on the motor into their respective slots. you can't see the other one because I had to crop it out.

8. carefully put the plugs back into their holders.

9. fit the 2 halves back together

10. replace all of the screws

11. slide the blower nozzle on to the main body until it locks in place, you are done.
