Filter Housing Replacement for GE Refrigerators model GSS25KSW / GSF25KGW

ID: 72844

Description: Simple step-by-step instructions to replace the...

Steps:

1. Disconnect the electric plug from the wall.

2. Turn off or push down off water main valve from the wall.

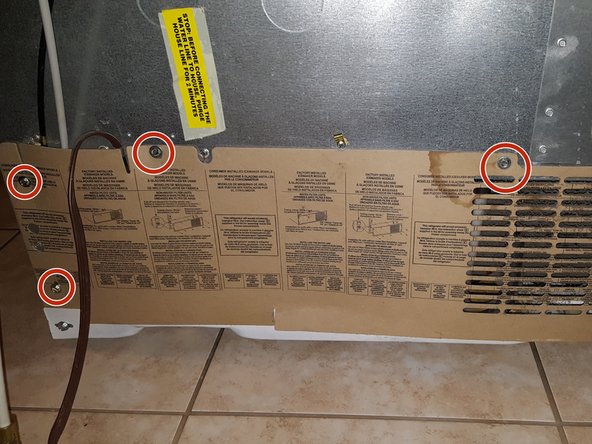

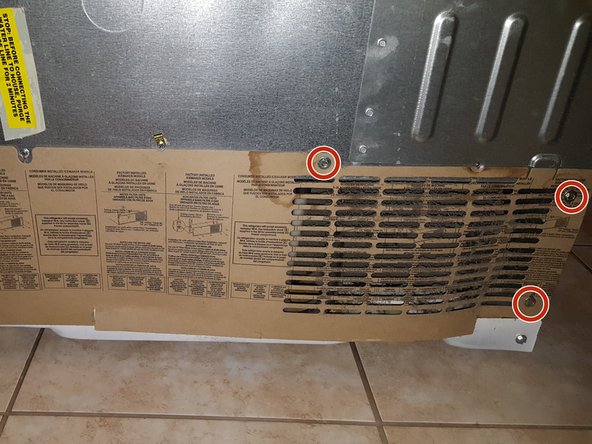

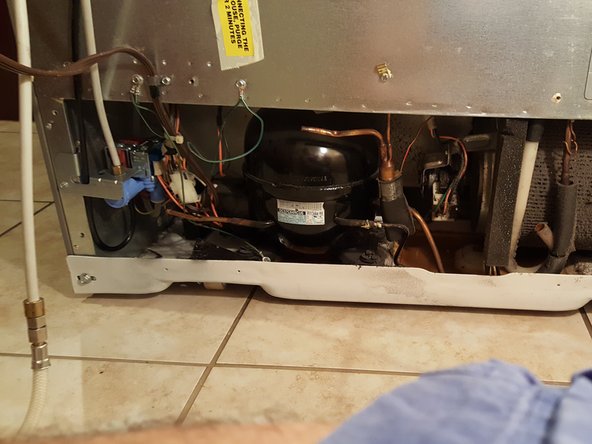

3. Remove the back panel with 6 screws from the back panel using a 8 mm nut driver.

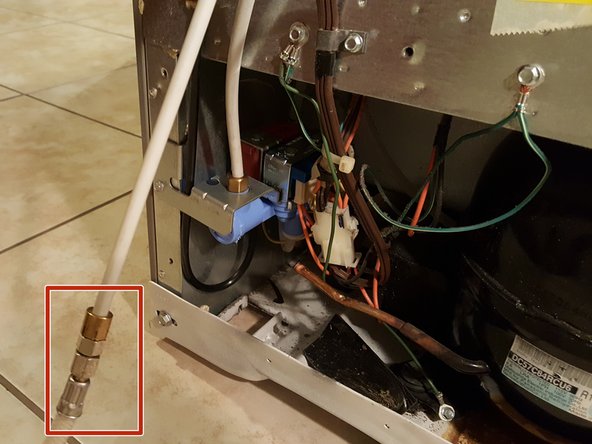

4. Disconnect the water supplied line from the refrigerator using two 13 mm open-end wrenches.

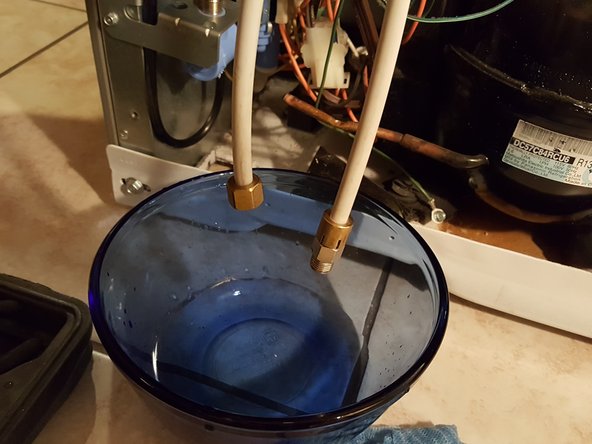

5. Use a little bucket to receive the water from the water lines.

6. Disconnect the water line from the water inlet valve using and open-end wrench size 15mm

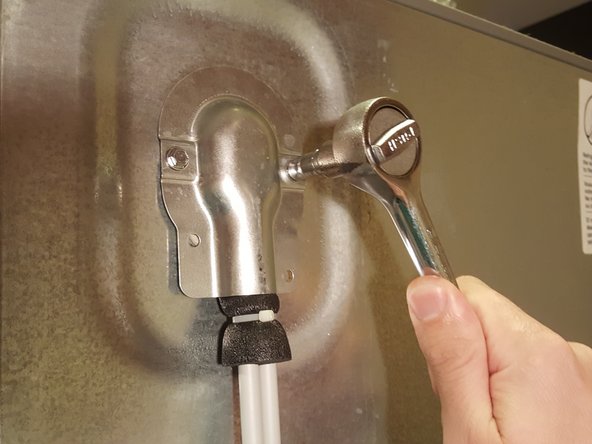

7. Disconnect the water line cover removing 2 screws using a 7 mm nut driver.

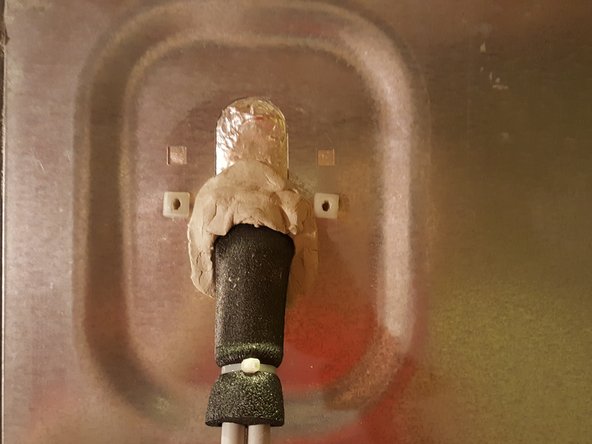

8. Pull up the gum seal compound.

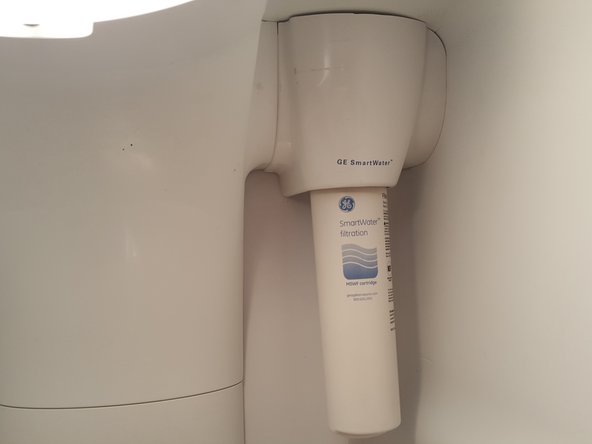

9. Push the left side of the filter cover and pull it straight out.

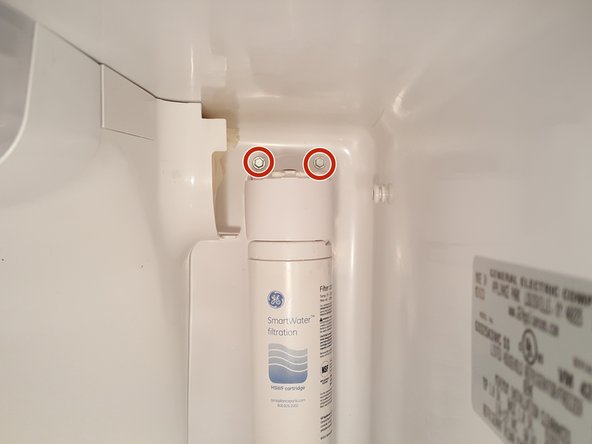

10. Remove the 2 screws on top of the housing using 7 mm nut driver.
11. Pull the housing and filter out slowly.

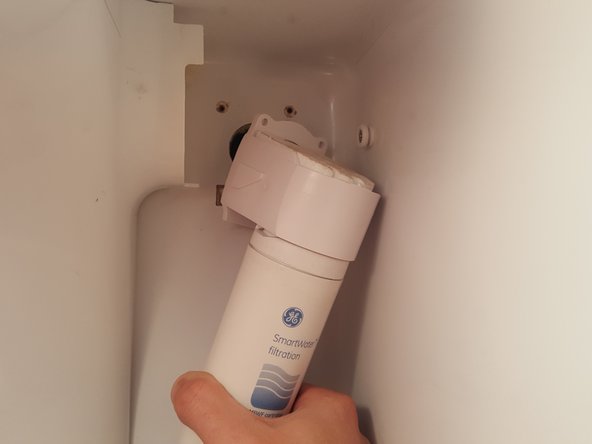

12. Remove the filter by turn it counterclockwise
