Xbox One Wireless Controller Teardown

ID: 72986

Description:

Steps:

1. Start off with having an Xbox One Controller (:

2. Start with removing the battery pack and exposing the T8 security screw. The screw should be hidden behind a warranty sticker.

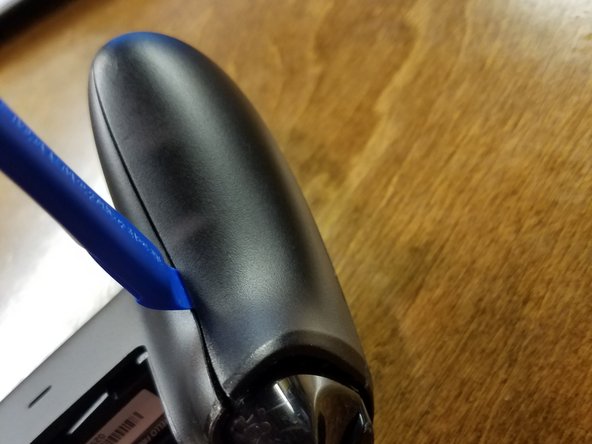

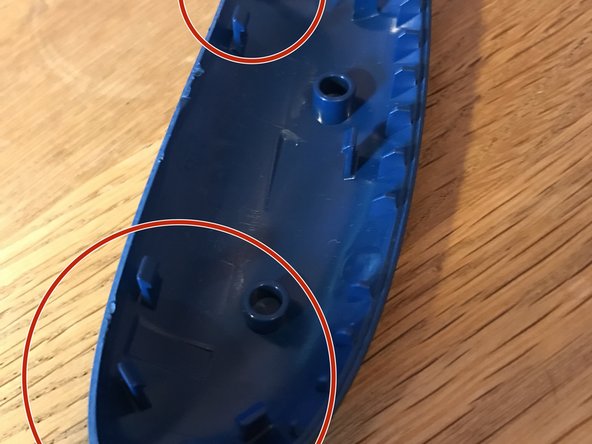

3. Remove the side panels exposing the second T8 security screw using a spudger, an IFixit Opening Tool, or your nails, each choice is fun.

4. By removing all side panels all 5 TR8 security screws have appeared!

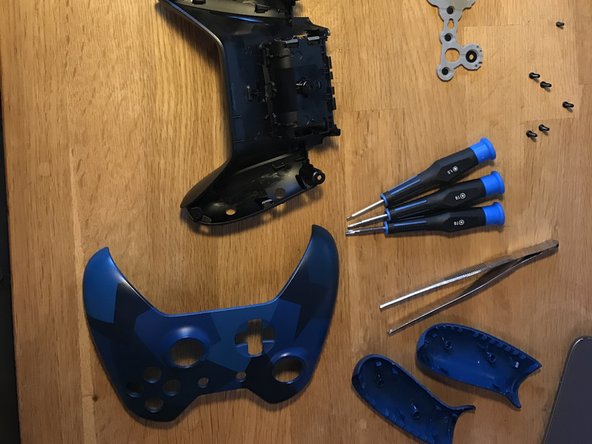

5. Once you removed the T8 security screws remove the front face plate.

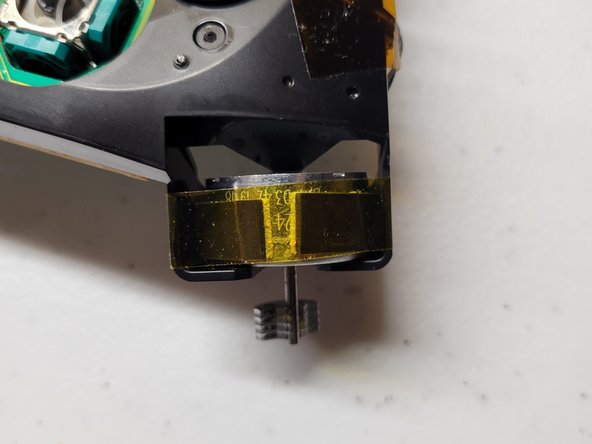

6. Tape down the rumbler motors to prevent them from falling out.

7. Remove the T6 screws to remove the PCB's.
8. It takes a pull to seperate the connectors.

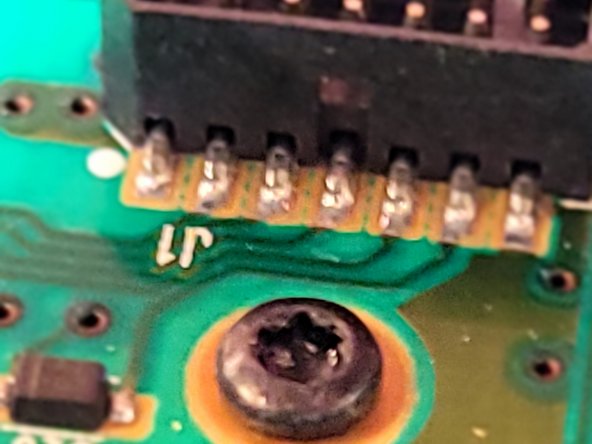

9. Watch the wires! You can not fully remove the circuit board without removing the wires and it requires soldering.

10. Remove the top cover, it folds over.
11. There are 6 T6 screws to remove.

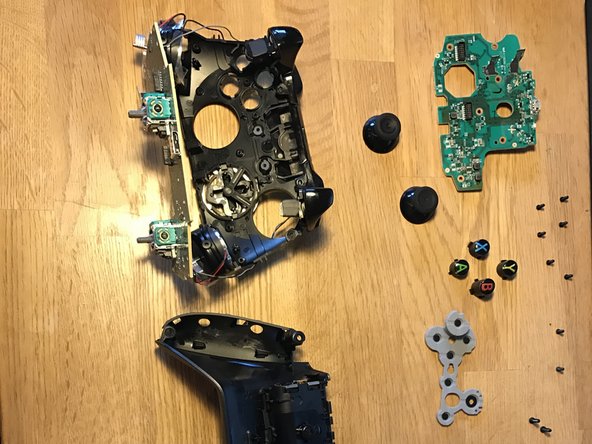

12. Remove the circuit board

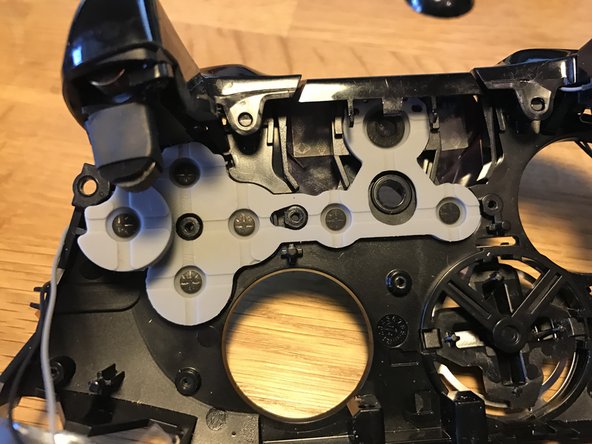

13. Under the rubber is the A B X Y buttons.

14. Follow the instructions in reverse to get everything together again. :D
