Motorola Buzz ic502 Keypad Replacement

ID: 74621

Description: This guide will teach you how to remove the keypad

Steps:

1. First flip the phone over.
2. Then find the back release circled in red.

3. Carefully remove the back using the release.
4. Lift from the bottom!

5. Lift the battery from the right side.
6. After the battery has lifted about a 45 degree angle remove from phone.

7. Remove the plastic pieces with metal spudge

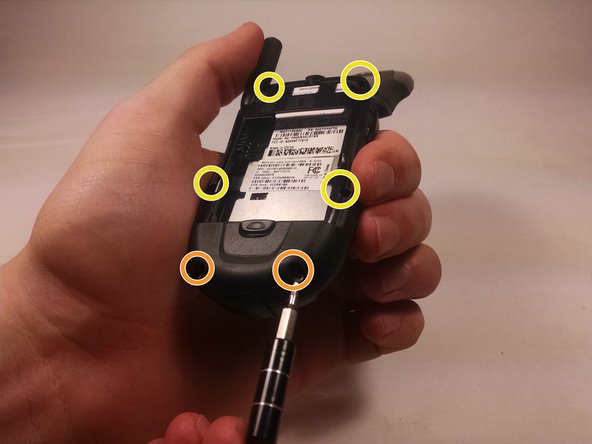

8. Under both are two screws, remove those as well.
9. Remove the other four screws on back of phone.

10. Carefully lift screen as to not snap wire that connects it (shown is a version in which the screen has been fully removed).
11. Lift off keypad and replace.
