Canon ELPH Z3 Camera Film Chamber Replacement

ID: 74768

Description: Film is a crucial component when it comes to...

Steps:

1. Unscrew the 7 4.1mm screws around the camera using a PH000 screwdriver.

2. Split the front and back coverings of the camera.
3. Remove the back covering completely.
4. This allows for easier access to the shutter button carrier.

5. Slide the shutter button carrier off of the camera.
6. Notice shutter button is on the right hand side of the carrier.

7. Press upward on the shutter button from the underside of the carrier by using your thumb.
8. Separate the shutter button from the carrier.

9. Separate the front and back coverings of the camera completely.
10. Remove both coverings from the body of the camera.

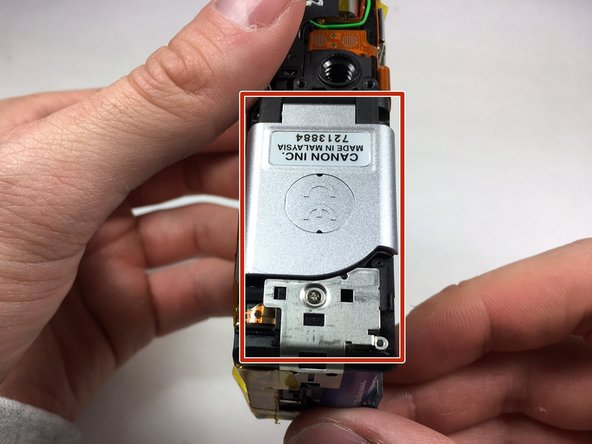

11. Flip the camera upside down and focus on the bottom right portion.

12. Unscrew the 4.1mm screw using a PH000 screwdriver.

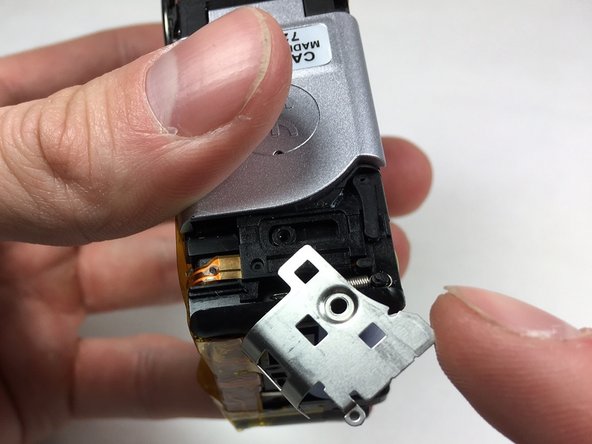

13. Swivel the now loose metal portion to the right.

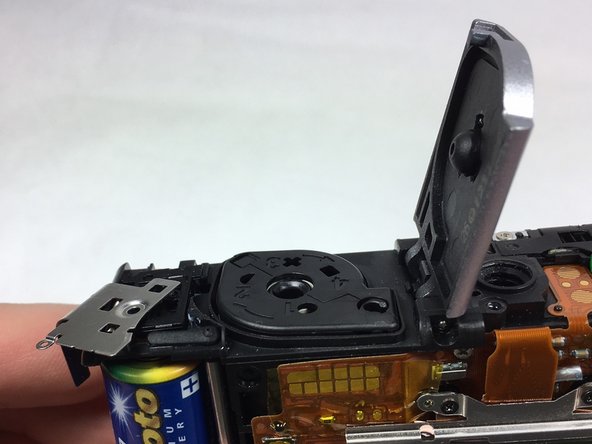

14. This action will open the film chamber and thus exposing the film.

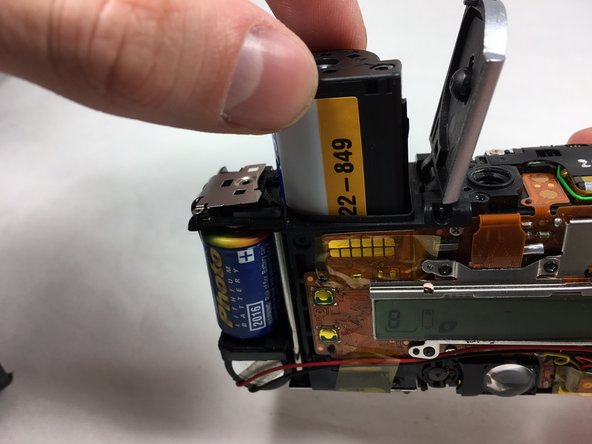

15. Press gently on the film using your finger to slightly eject the film.

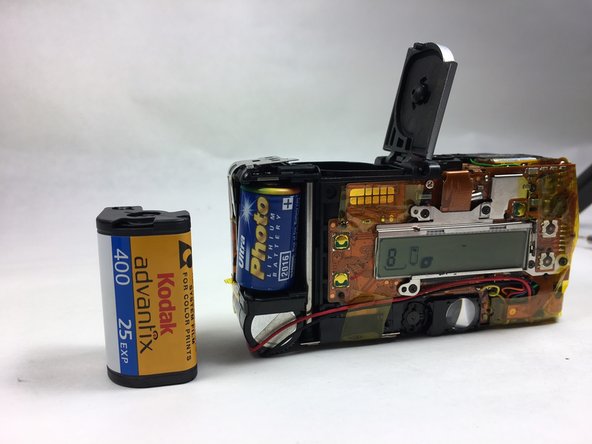

16. Pull the film from the chamber.
