Magellan Roadmate 9055-LM Speaker Replacement

ID: 74789

Description:

Steps:

1. Flip your device with back panel facing up.

2. Unscrew four Phillips #0 screws from the back panel.

3. Unscrew two Phillips #0 screws from the back panel.

4. Use a plastic opening tool to pop the right side of the panel.

5. Lifting the back panel too quickly or forcefully may damage the speaker cable and battery cable, which are still attached underneath.
6. Gently lift up the back panel.

7. Remove the tape.
8. Unplug the cable for the speaker.

9. Remove the cable of the battery.
10. Tape removal is not necessary.

11. Place the back panel gently on the table.

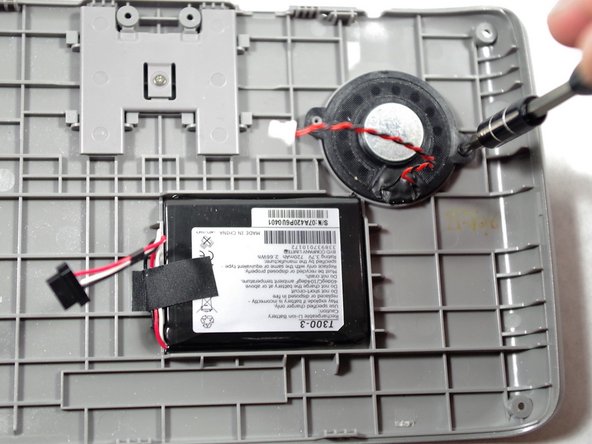

12. Unscrew the left and the right screws using the ifixit screwdriver.

13. Now that you removed the screws, you can finally replace the speaker.
