Magellan Roadmate 9055-LM Touchscreen Replacement

ID: 74798

Description:

Steps:

1. Flip your device with back panel facing up.

2. Unscrew four Phillips #0 screws from the back panel.

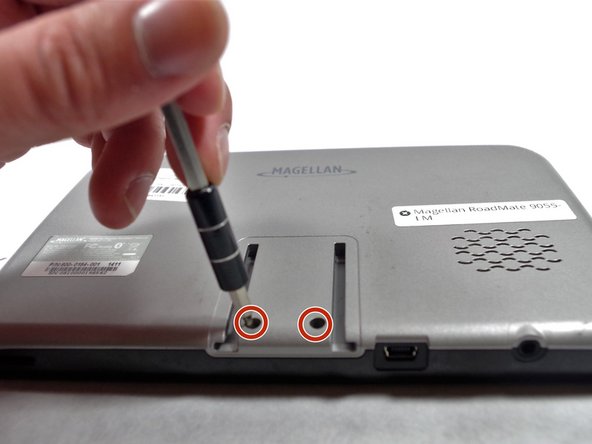

3. Unscrew two Phillips #0 screws from the back panel.

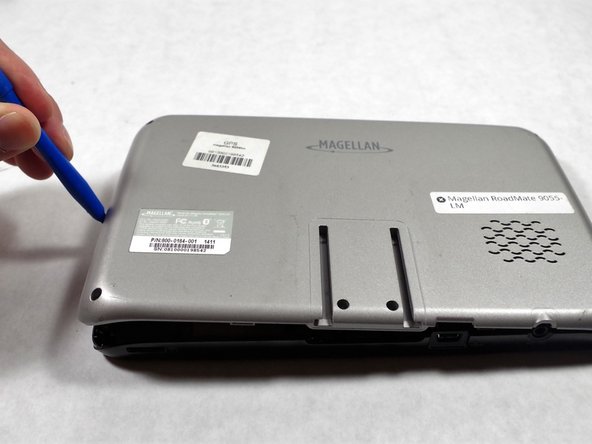

4. Use a plastic opening tool to pop the right side of the panel.

5. Lifting the back panel too quickly or forcefully may damage the speaker cable and battery cable, which are still attached underneath.

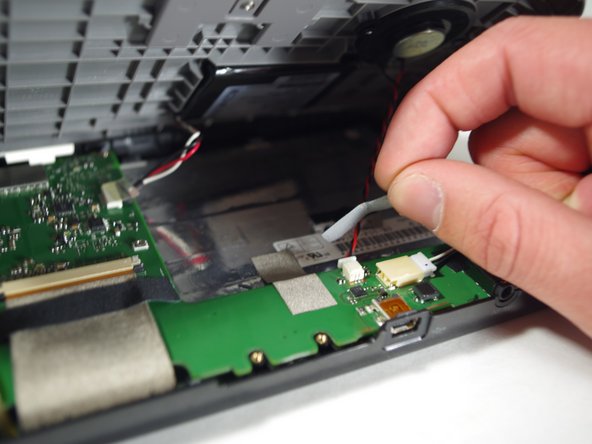

6. Gently lift up the back panel.

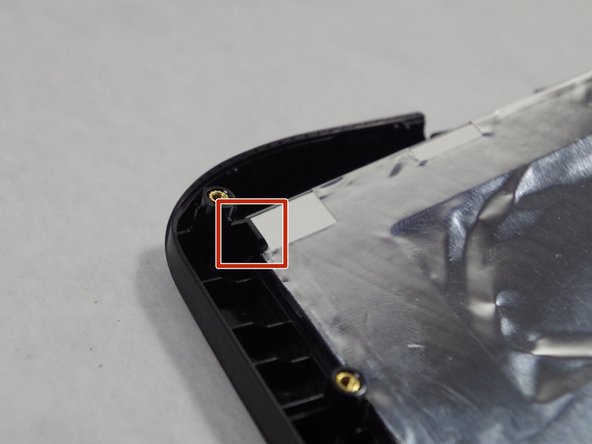

7. Remove the tape.

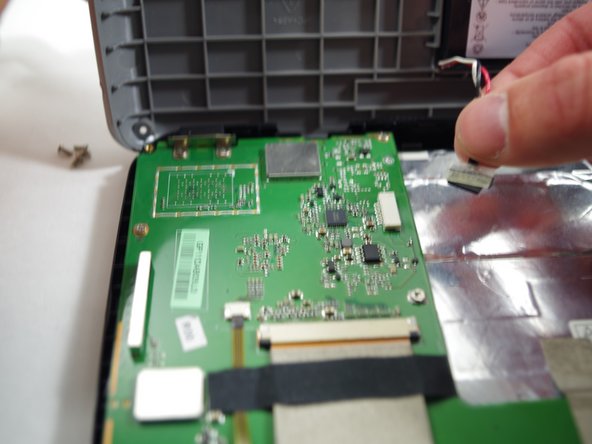

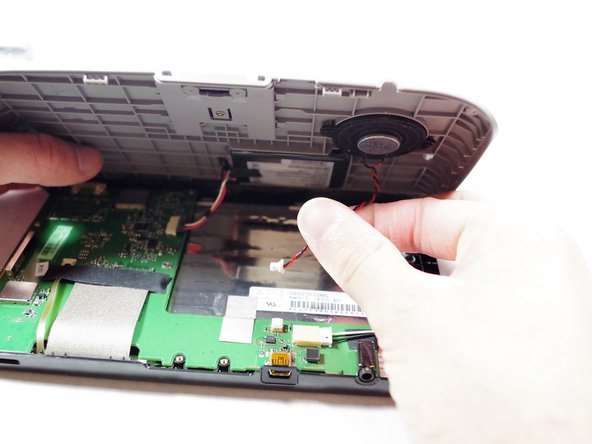

8. Unplug the cable for the speaker.

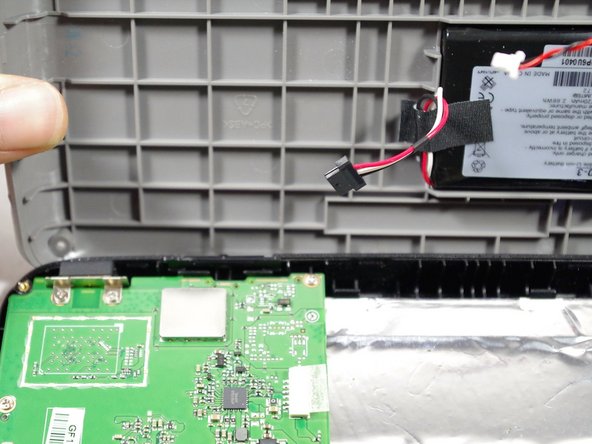

9. Remove the cable of the battery.
10. Tape removal is not necessary.

11. Place the back panel gently on the table.

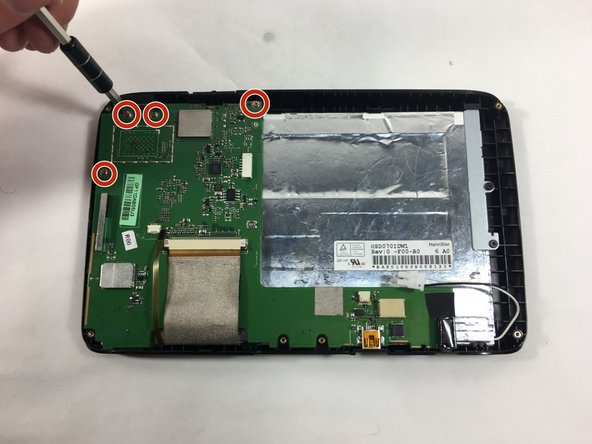

12. Unscrew four screws in the top left corner by using Phillips #0 size screwdriver.

13. Remove all the electrical tapes from different places as indicated.

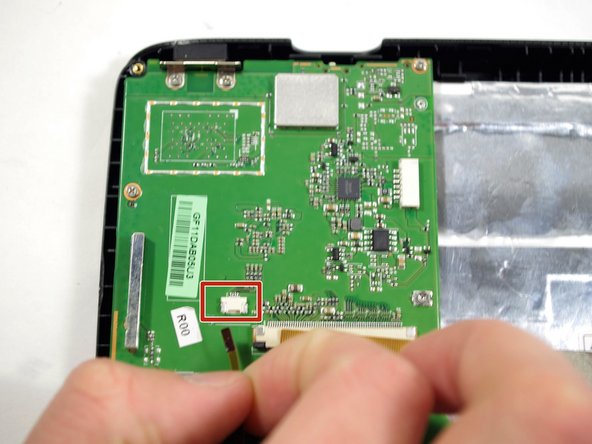

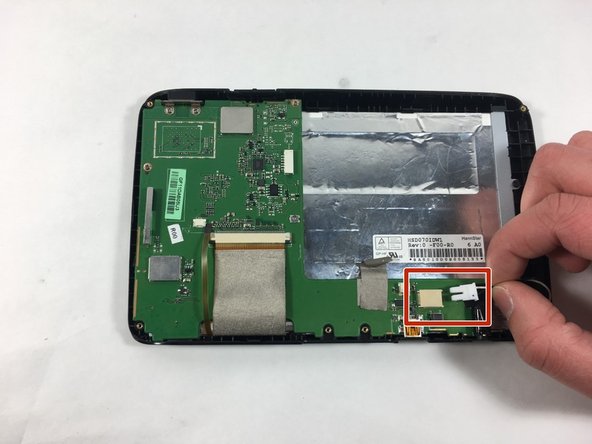

14. Remove the white clip attached with black and white wires.
15. Carefully remove the clip by pulling it to the opposite side from the clip.

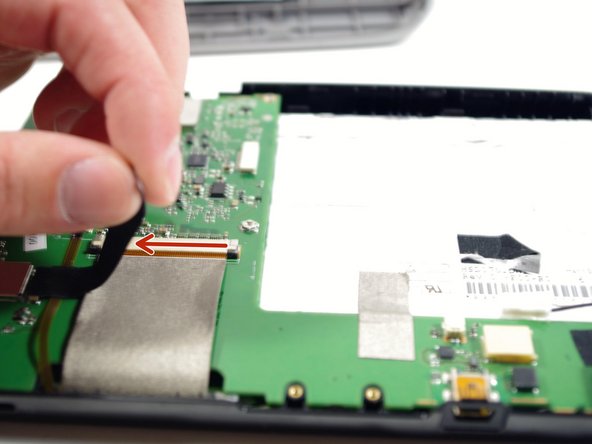

16. Unplug the wires by pushing it down and slowly pulling it towards you.

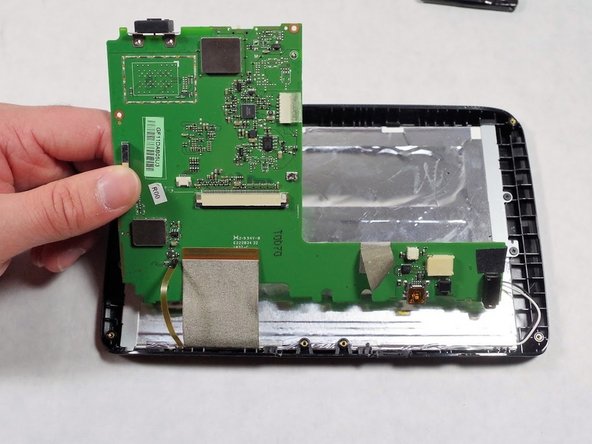

17. After unplugging the wires, take the motherboard out.

18. Unscrew four Phillips #1 screws.

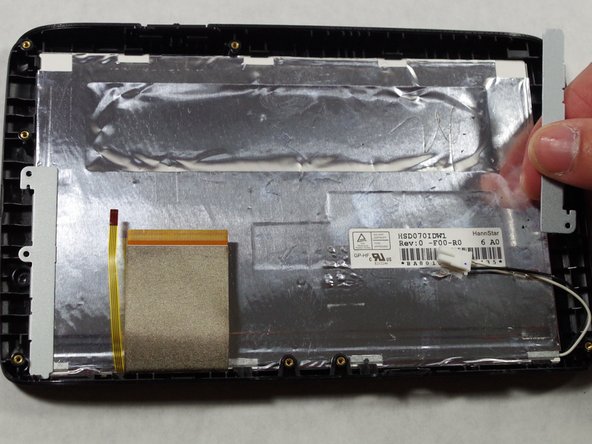

19. Remove the two metal pieces on two corners.

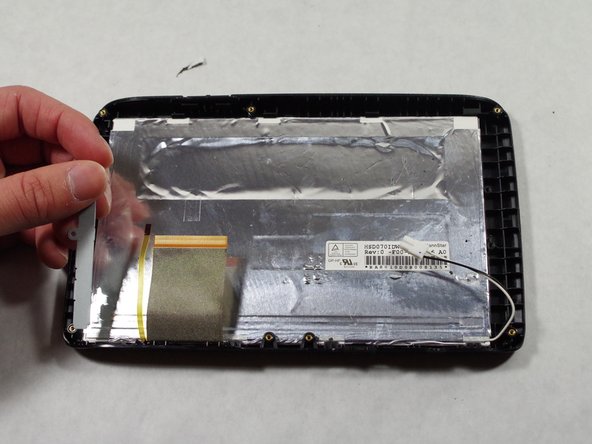

20. Lift touchscreen from the right side.
21. Slide the touch screen out from the top left corner.

22. Place the touchscreen gently on the table.
