GIGABYTE 15.6" P55Wv6-NE2 Disassembly

ID: 75112

Description: This is a basic disassembly guide and parts...

Steps:

  1. As with all electronics, ensure that you are in a static free environment, and the computer is turned off.
    2. Step image Step image Step image
  2. Use a PH00 to remove the 15 Screws holding in the bottom cover. There are no large clips holding in the back cover, so gentle pressure should release it.
    3. Step image

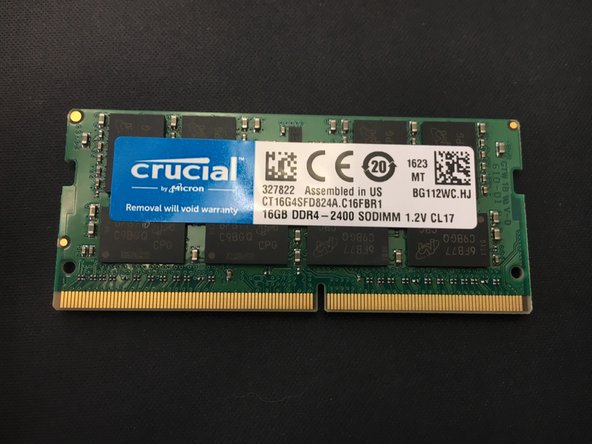

  3. There are 2 SODIMM Slots, Mine came with 16GB of Crucial Memory.

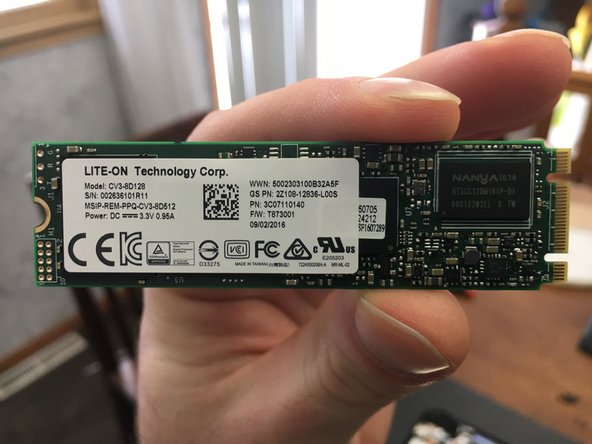

  4. The M.2 2280 SSD that mine came with was a Lite-On. The 2.5" 1TB HHD was nondescript.
  5. The wifi chip is an Intel 8260NGW
    6. Step image Step image Step image
