TEFAL juicer Gear Replacement

ID: 75204

Description: This guide tells you how to fix your TEFAL...

Steps:

1. Before dismantling, disconnect the juicer from the grid.
2. Remove the lid of the juicer by lifting it up and away from the juicer.
3. Remove the upper inner part of the juicer.

4. Slide the beige button to the right so that the beige bottom casing of the juicer unlocks.
5. Remove the middle casing.

6. Pull the three black rubber grips from the bottom with your fingers.
7. Use a Torx T15H security bit screwdriver to untwist the three 15.5 mm long socket screws of 5.5 mm head diameter that are hidden behind the black rubber grips.
8. Lift the bottom of the juicer.

9. Pull on the power cable of the juicer.
10. Remove the power cable with the attached motor.

11. Clamp the shaft tight with a needle nose plier.
12. Disassemble the shaft, the bottom of the juicer and the gear by pulling the pressfitted parts from each other.
13. When reassembling make sure to press the components tight again.

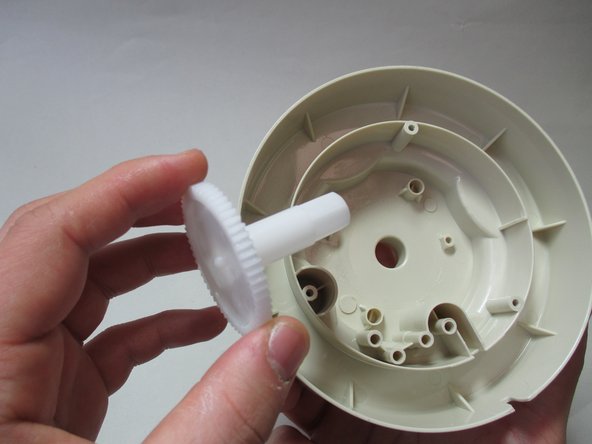

14. Remove the gear from the bottom casing.
