Waterproof Bluetooth HEMA speaker Battery Replacement

ID: 78699

Description: This guide will tell you how to replace the...

Steps:

  1. Turn the device upside down.
    2. Step image
  2. Pull off the rubber suction cup.
    3. Step image
  3. Unscrew the four 6mm round Phillips #000 head screws on the bottom of the product.
    4. Step image
  4. Remove the rear clamshell.

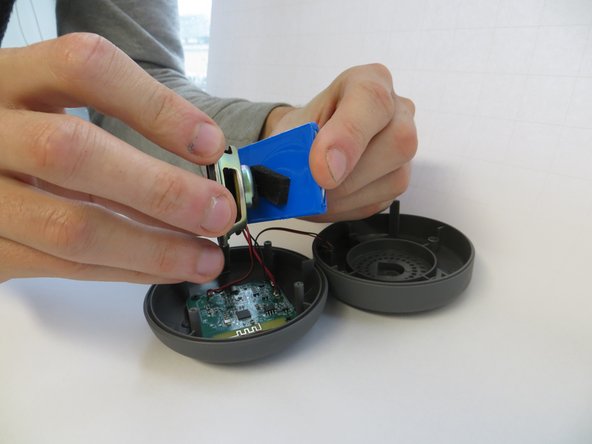

  5. Separate the battery from the speaker by pulling gently. The foam adhesive will release.
    6. Step image Step image
  6. Unscrew the four 4 mm round Phillips #000 screws that keep the circuit board in place.
  7. Take out the circuit board.
    8. Step image

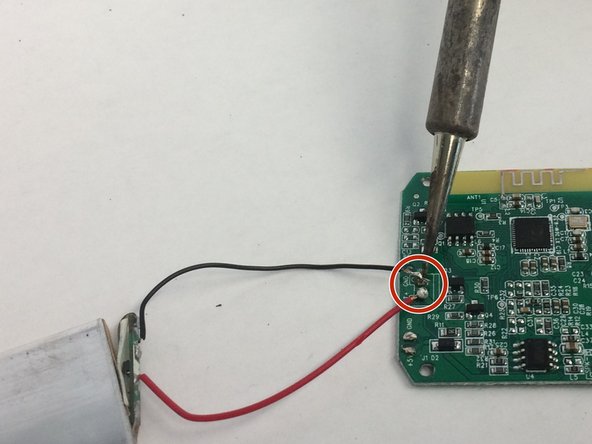

  8. Detach the battery by gently unsoldering the wires with a soldering iron. Also look at the colors of the wires,
  9. Take note of the location the wires were attached and the negative and positive side.
  10. Take a new 3,7V 400 mA Lithium battery and solder it to the circuit board where the old battery was attached.
    11. Step image
