Ruton Mixer Gear Replacement

ID: 78706

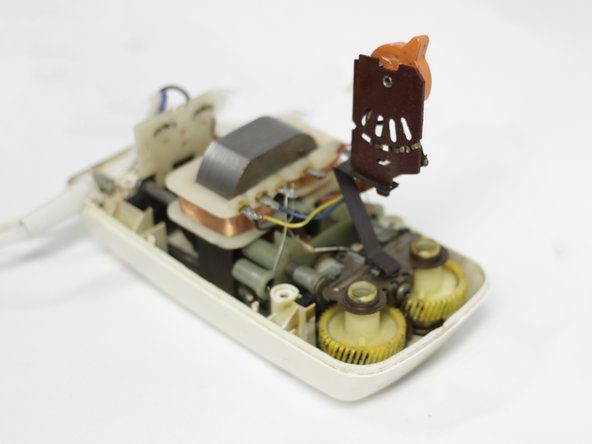

Description: When the gears of a hand mixer are warped or...

Steps:

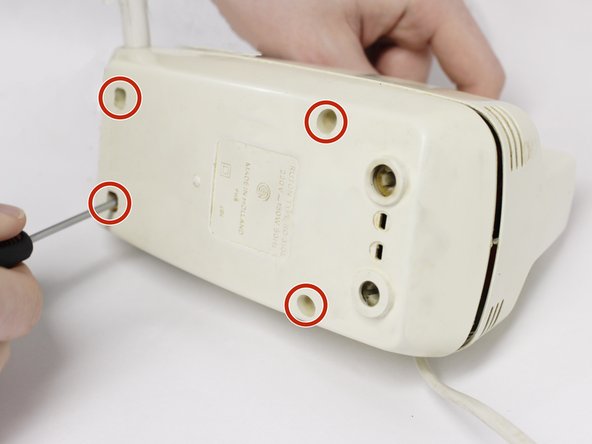

1. Slightly loosen all four 2.54 cm Phillips #1 screws and remove them.

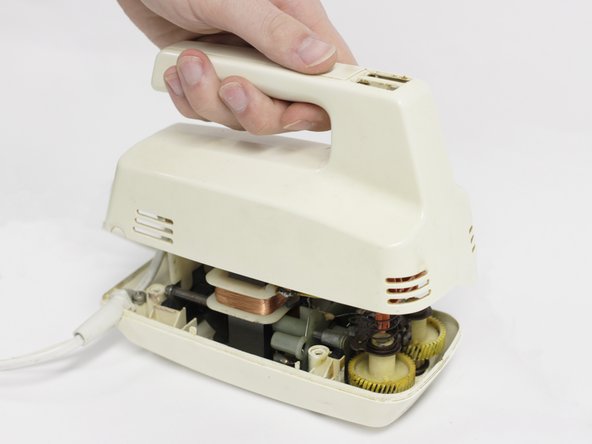

2. Remove the top casing.

3. Remove the button unit, including the spring.

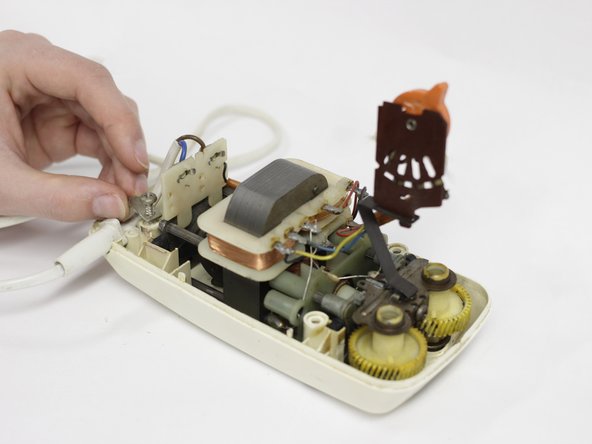

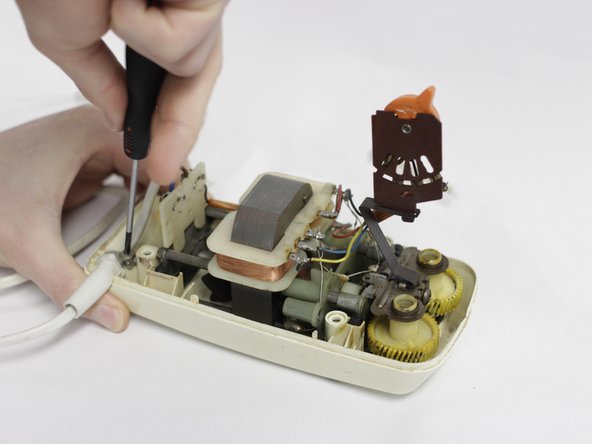

4. Remove the 1.50 cm Phillips #1 screw that holds the cable clamp.
5. Remove the cable clamp.

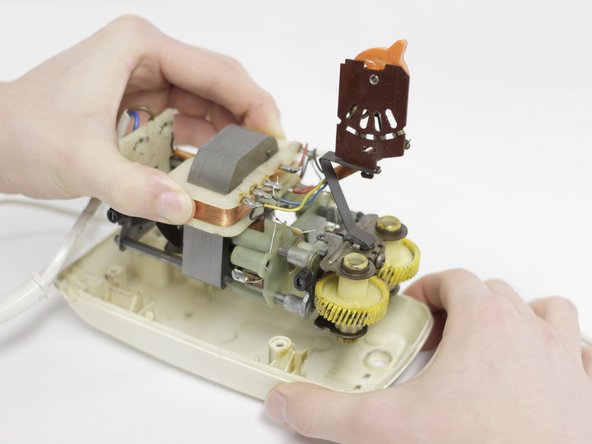

6. Lift the product from the bottom casing.

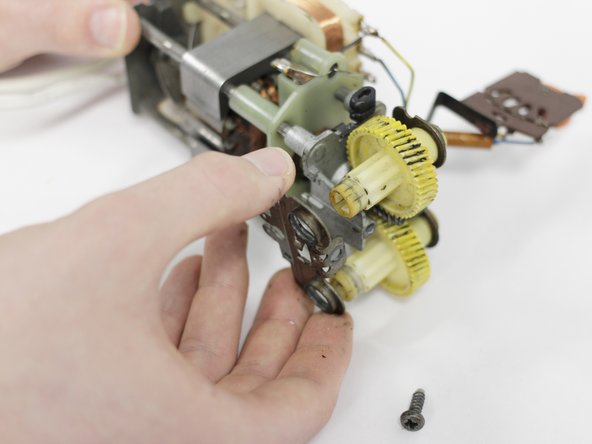

7. Lay the product on its side and remove the 1.27 cm Phillips #1 screw holding the bottom metal plate in place.

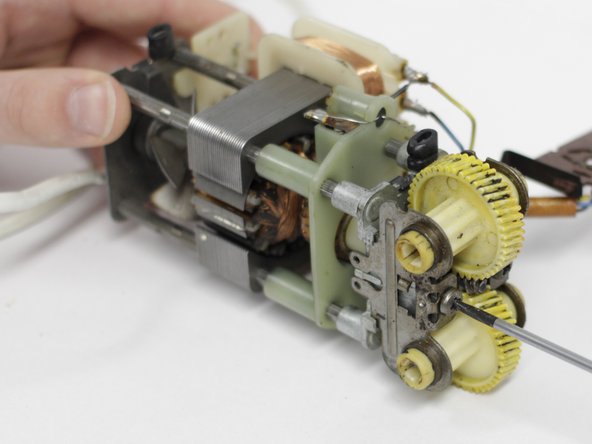

8. Remove the metal plate holding the gears in place.

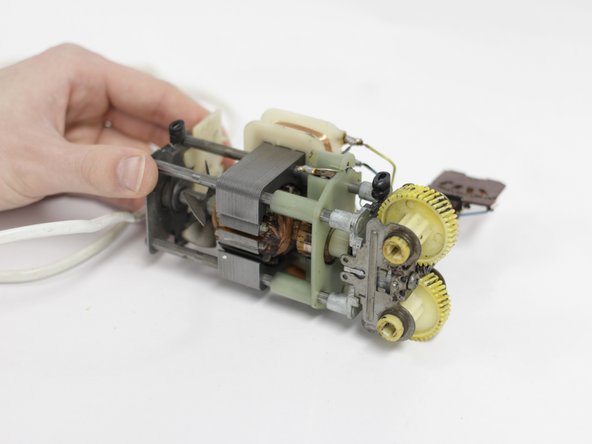

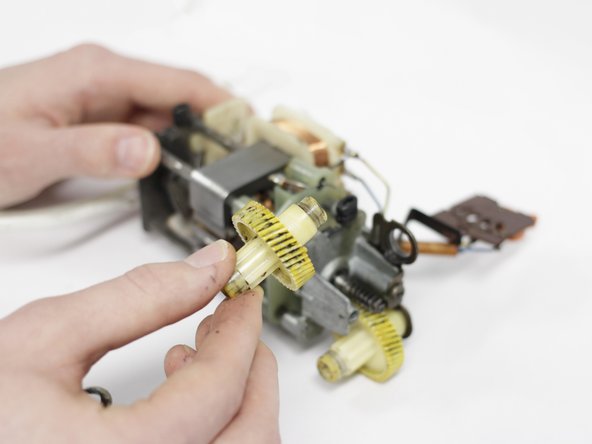

9. Remove the gears.

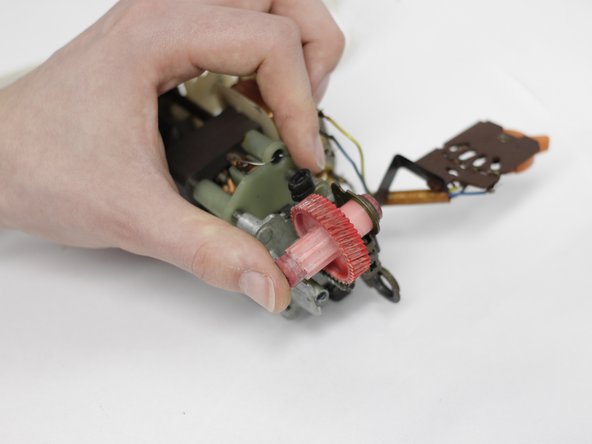

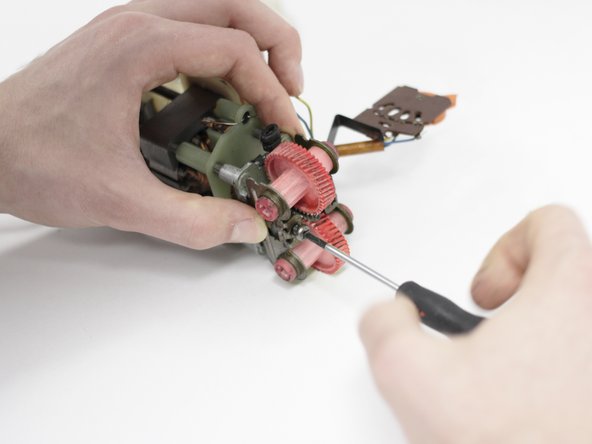

10. Replace the gears with new ones.

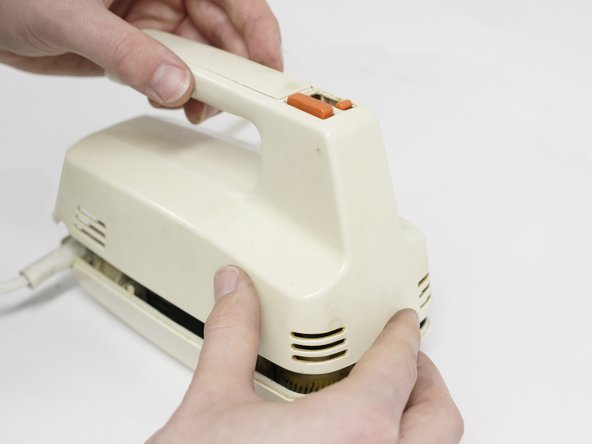

11. Reassemble the mixer.

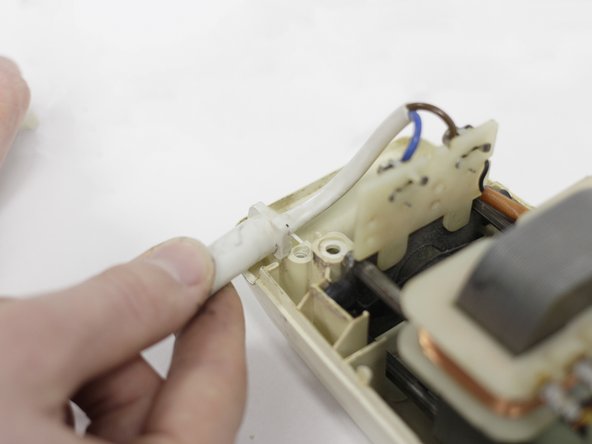

12. Put the cable protection in the correct position before fastening the cable and reassembling the mixer.
