Huawei P9 Lite Rear Camera Replacement

ID: 79077

Description: Use this guide to replace the rear camera in...

Steps:

1. Use an opening pick to unclip the rear cover, starting from the bottom corner.
2. Work your way around counterclockwise and carefully pry the plastic tabs open one by one.

3. There is adhesive underneath the back cover that holds it to the battery and the metal plate at the top.
4. Be careful with the flex cable at the right hand side.
5. Twist the opening pick to lever the back cover away and loosen it from the adhesive.

6. When the back cover is freed from the adhesive you can pop it off by hand completely.

7. Remove the nine Phillips #00 screws that secure the metal shield plate.
8. Some screws may be covered with tamper proof stickers. Remove them to ensure a proper seating for your driver.

9. Do not remove the shield plate yet, it is attached by a connector and an adhered cable.
10. Use a spudger to disconnect the fingerprint sensor from the motherboard.
11. Peel the NFC antenna cable off of the metal plate.

12. Release the rear camera connector.

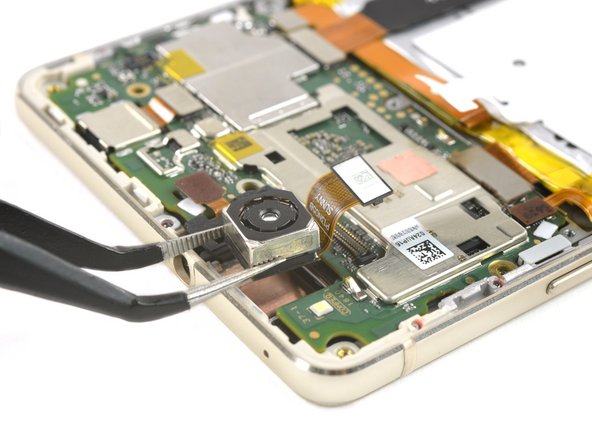

13. Take the camera out of its recess.
