Toshiba Chromebook CB35-A3120 Speakers Replacement

ID: 79755

Description: In this guide we plan to remove the internal...

Steps:

1. Using a Y1 screw driver head remove all ten .9mm screws from the back cover
2. Set the screws aside in preparation for reassembly

3. Remove the back cover by placing a prying tool in the SD slot and popping the clips out of place.

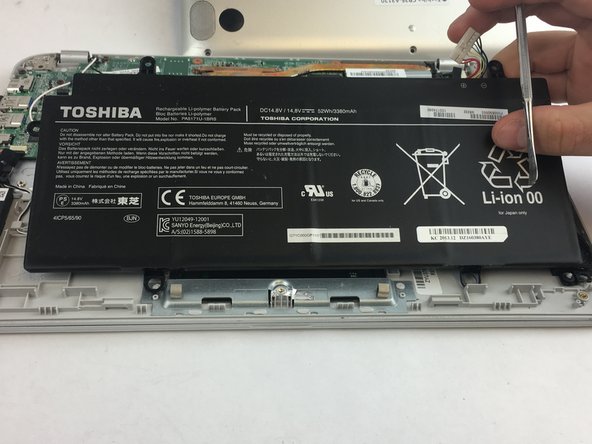

4. Unscrew the battery by using a J1 screw driver head, and place the four .7mm screws off to the side

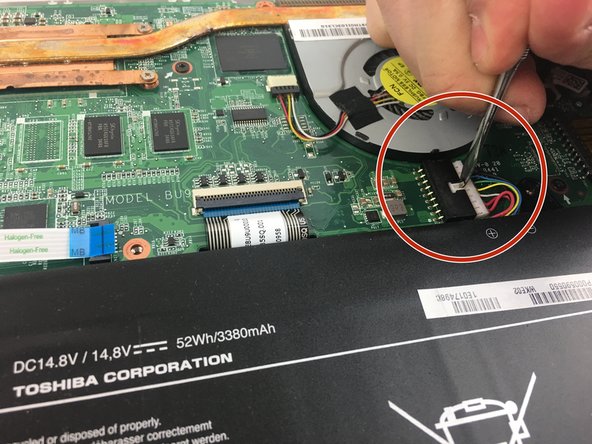

5. Using a pry tool, pop the battery connector out of place and gently lift the battery upward.

6. Remove the right side speaker by popping it out of place with your finger
7. Follow the speaker wire along the clips underneath the battery until you reach the left hand speaker

8. Unplug the connector wiring the speaker to the mother board.
9. Pop the speaker out of the computer, similar to the method used in the previous step.
