Sony Xperia T2 Ultra Dual Motherboard Replacement

ID: 79969

Description: The motherboard is where all the different...

Steps:

1. Using the spudger, pry open the back cover by starting alongside the edge of the back cover.

2. Once the part of the back cover has been opened up. Slide the spudger to pry completely detach the cover from the phone.

3. Using the Phillips #00 Precision screwdriver, take out 8 silver screws (3.15mm) and 5 gold screws (3.9mm) for a total of all the screws attached to the flat plate. 3 of the gold screws are located at the top of the phone and the other 2 screws are located at the bottom of the phone.

4. To remove the internal cover, use the plastic spudger tool and pry the cover from the phone as shown in the picture.

5. To take out the back facing camera, flip open the flap labelled ‘film’ to reveal the chip that connects to the motherboard.

6. Use the tweezer, carefully pry open the chip for the back facing camera.

7. Then using the tweezer, carefully remove the back facing camera component.

8. Using the tweezer, carefully pry open the chip for the front facing camera as shown. Then using the tweezer, carefully remove the front facing camera component.

9. Using tweezer, locate the audio jack as shown and pull out the chip connected to the motherboard.

10. Carefully remove the audio jack by using the tweezers and pull firmly straight out of the motherboard.

11. Using tweezers, locate the battery connector and carefully pull up to disconnect it.

12. Carefully remove the button circuit connector by using tweezers and gently pulling up.

13. Carefully remove the silver plug by using the tweezers to lift straight up.

14. Carefully remove the SIM card connector using tweezers by gently pulling it straight up.

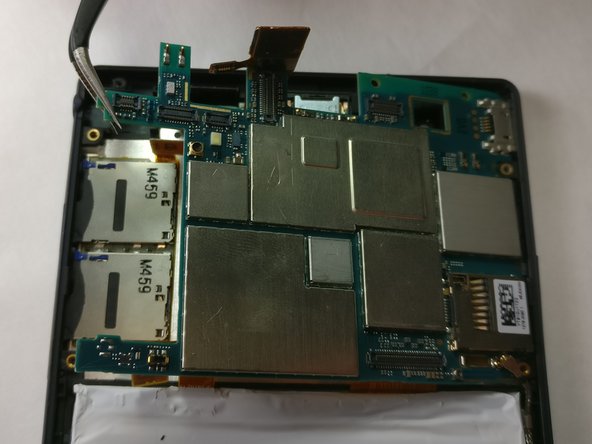

15. Using tweezers, carefully remove the motherboard by pulling it up and out of the backing.
