2009-2015 Toyota Prius Engine Air Filter Replacement

ID: 95238

Description: The engine air filter should be replaced once...

Steps:

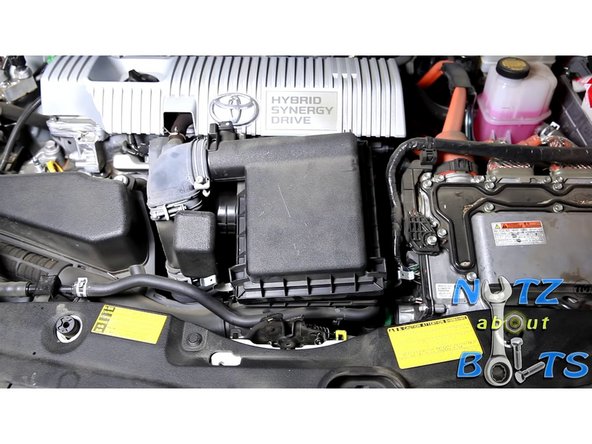

  1. Locate the air box in the engine compartment
  2. source.
  3. Step image

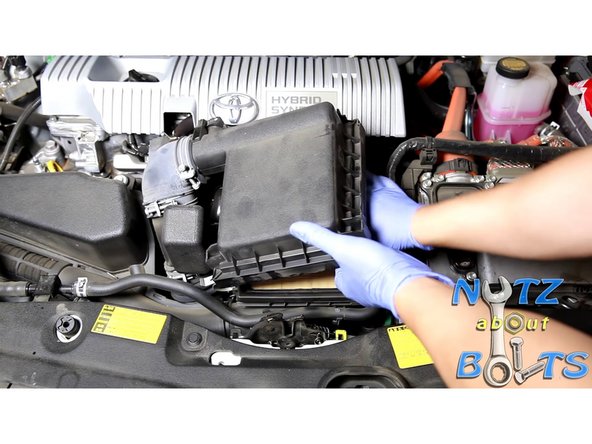

  4. Unclip the air box by releasing the clips holding it in place
  5. source.
  6. Step image

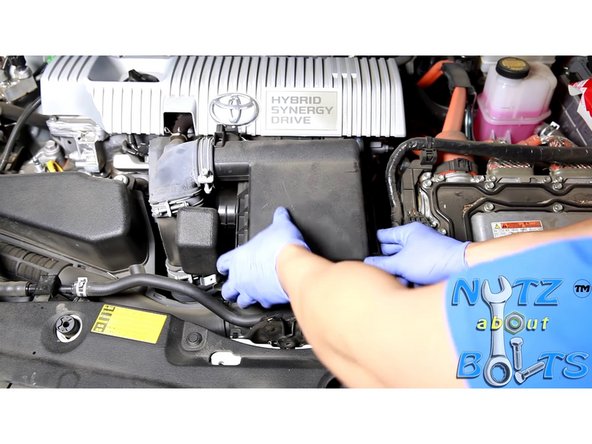

  7. Carefully slide the air box out, making sure to avoid damaging the connected components
  8. source.
  9. Step image
  10. Remove the old engine air filter from the air box
  11. source.
  12. Step image
  13. Inspect the old filter and determine if it needs replacement based on its condition and mileage
  14. source.
  15. Step image
  16. If the filter needs to be replaced, insert the new engine air filter (part number 17801-37021) into the air box
  17. source.
  18. Step image

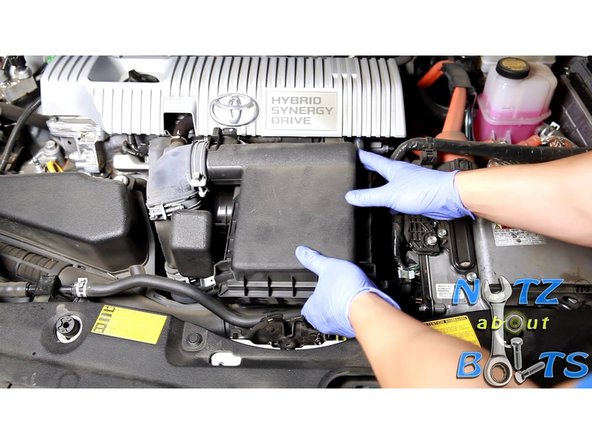

  19. Reinstall the air box by carefully sliding it back into position and securing it with the clips
  20. source.
  21. Remember to always check your engine air filter when replacing it, and be mindful of your driving environment, as some areas may be dirtier or dustier than others
  22. Regularly replacing your engine air filter can help maintain optimal engine performance and efficiency.
  23. Step image
