Samsung SmartCam HD Speaker Replacement

ID: 96076

Description: Steps how to replace the SmartCam Speakers...

Steps:

1. Remove the mount.
2. Use the mount replacement guide if necessary to take the mount off.

3. Unscrew the screw next to the mount holder.

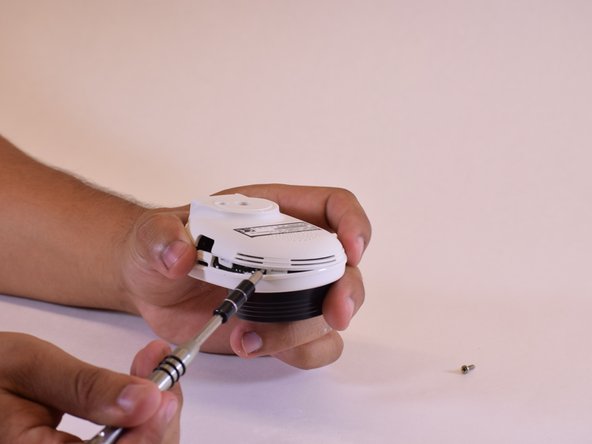

4. At the bottom of the SmartCam there is a tab that you can stick a spudger r in.
5. Once the spudger is in, gently pry it open.

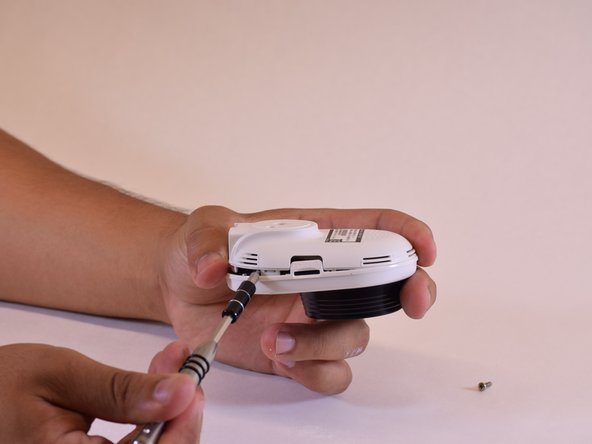

6. Work your way around the SmartCam with the spudger loosing 8 clips.
7. Buttons may fall out, but can be reinserted easily.

8. Gently remover the cover.
9. Beware of the wires connected to the camera.

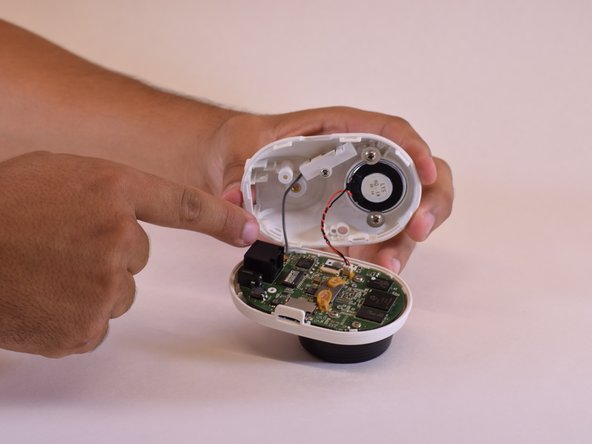

10. The speaker should be attached to the cover with red and black wires going to the main board.

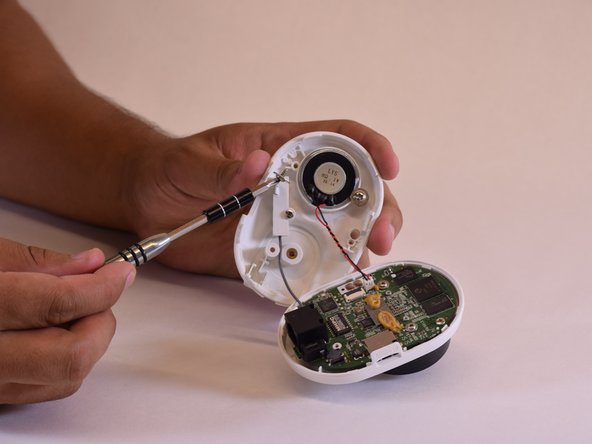

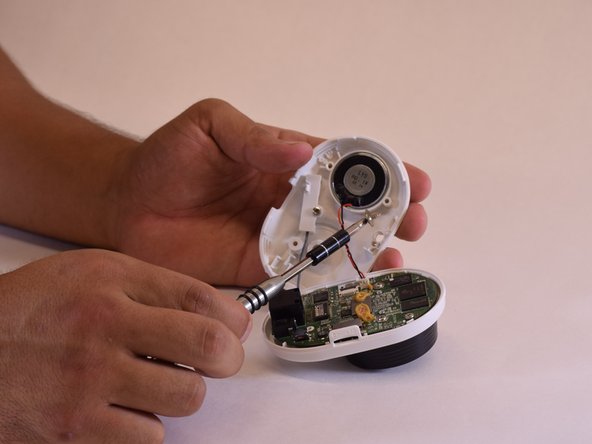

11. Unscrew the two screws holding the speaker in place.

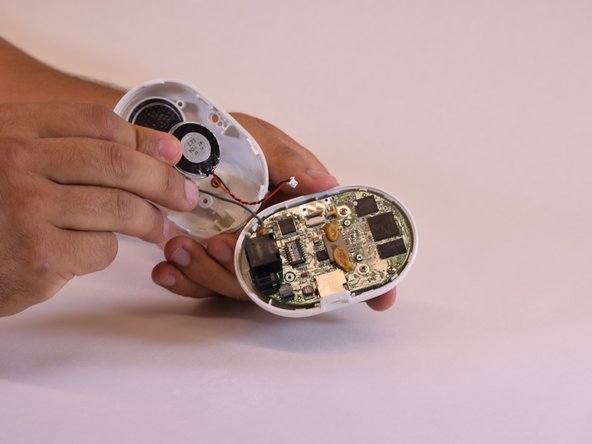

12. Gently take the speaker out of the cover.

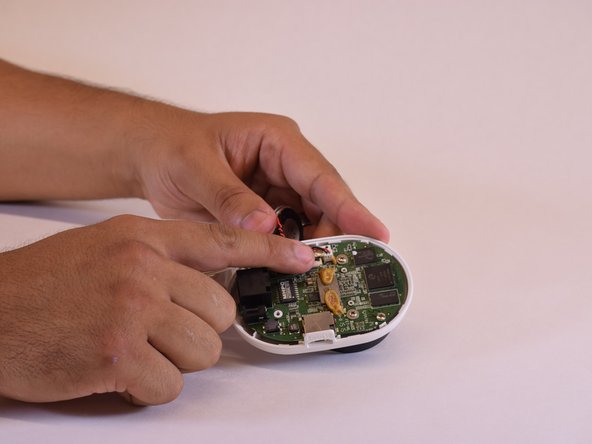

13. Take out the red and black wires from a small plug-in on the main board.
