Toolcraft ST-50D solder station Disassembly

ID: 96209

Description: I want to show you how to disassembly the body...

Steps:

1. I think you can disassembly other models of Toolcraft ST solder stations 50/80/100 analog or digital the same way.

2. There are two holes with screws on the bottom side (green circles on the picture) and the 2-nd pair of screws is under the two rubbery "legs" (red circles).

3. ... by nails or by flat screwdriver and you will see the second pair of holes with screws.

4. ... by Phillips #1 screwdriver and you can open the body of the solder station.

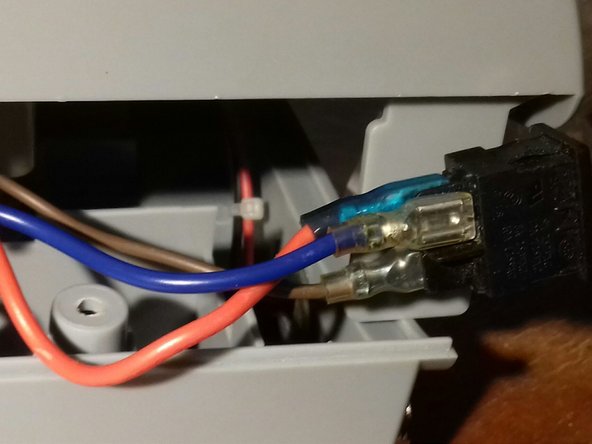

5. The cables connected to switch: ON is Up , from inside: 1) RED + BLUE 2) BROWN

6. From inside.
