Warm Audio EQP-WA Tube Replacement

ID: 96384

Description: This guide will show you the very easy steps to...

Steps:

1. Unplug the unit from the mains power before opening it.

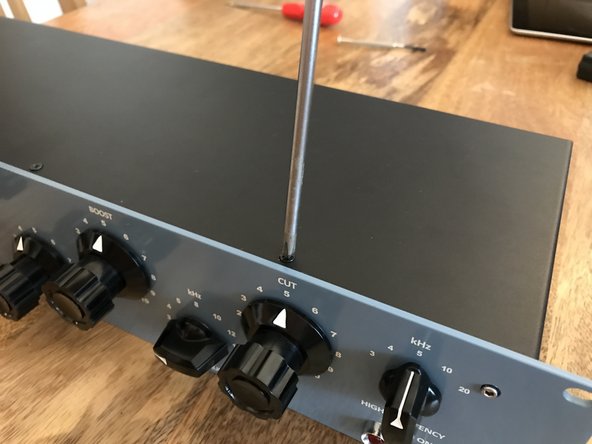

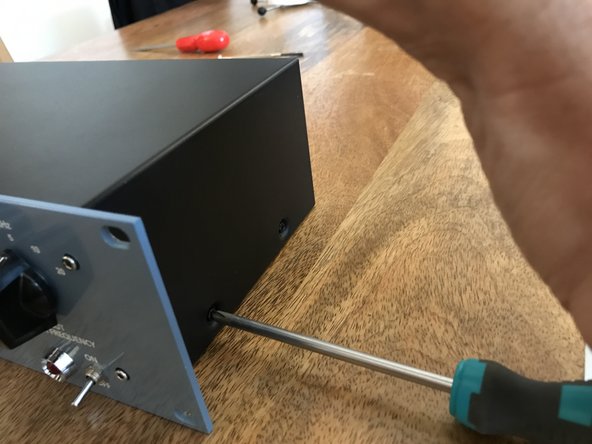

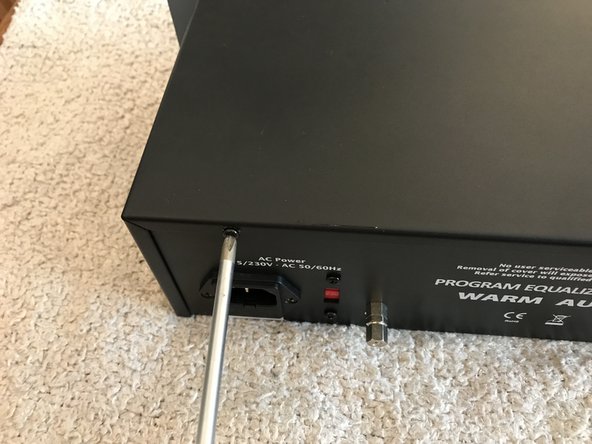

2. Remove the screws at the top, sides and back of the unit with a standard phillips screwdriver.

3. Remove the lid and locate the tubes.

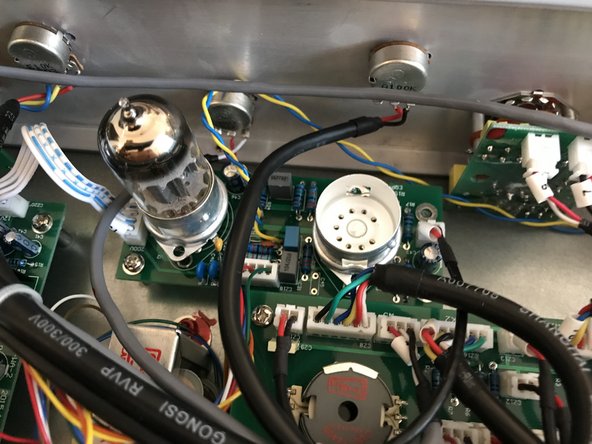

4. The tubes are covered by a metal shield. To remove this shield, push down a bit and rotate, then pull up the shield.

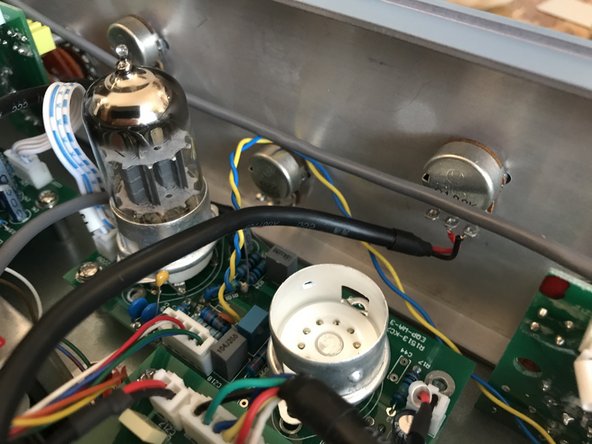

5. Pull out the tube that needs changing. Only the glass part comes out.
6. It will probably need some wiggling as you pull.

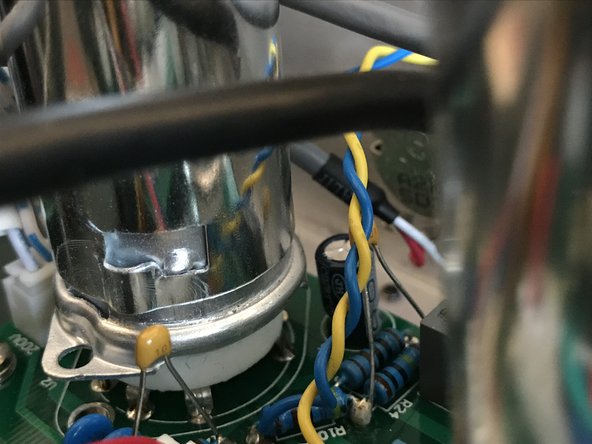

7. When inserting the new tube, pay attention to how it lines up in the socket, make sure it's completely aligned before pushing, because it will need a good push down and if not aligned correctly, this can bend the tube legs.
