Samsung HMX-F90 Strap Side Outer Casing Replacement

ID: 98970

Description: Use this guide to remove the outer casing of...

Steps:

1. Pull the release tab away from the battery.
2. Slide the battery towards the release tab and then pull the battery away from the camcorder.

3. Rotate the camcorder so that the strap side is facing you.

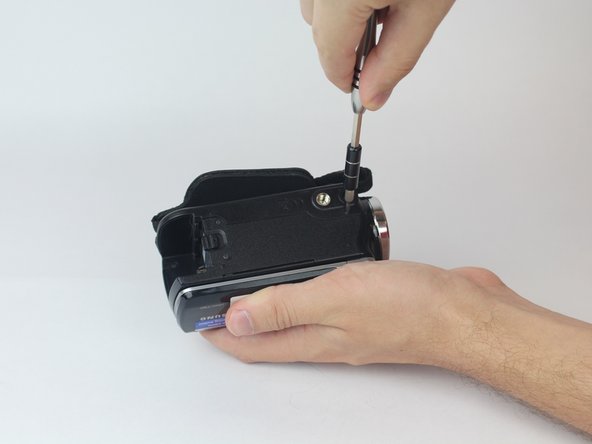

4. Locate and remove the three 4.5mm Phillips #00 screws around the hand strap.

5. Rotate the camcorder so that the battery slot is facing you.
6. Located in the top left corner of the battery slot, remove the 4.5mm Phillips #00 screw.

7. Rotate the camcorder so you are looking at the bottom of the camcorder.
8. Locate and remove the last three 4.5mm Phillips #00 screws.

9. With both hands, pull the side strap apart from the rest of the camcorder.
