Parrot Mambo (PF727001) Motor Replacement

ID: 99135

Description: I've got a Parrot Mambo that flew itself into...

Steps:

1. This motor is the defective one. The motor shaft is allowed to move freely up and down. Mine was the front right motor.

2. Flip quadcopter over to its underside
3. Use spudger or your fingernail to get underneath the rubber foot.
4. Remove rubber foot

5. Use the T4 driver to remove 4 screws.
6. Gently lift up the panel starting from the rear of the quad, and unhooking from the lip on the front.

7. You will now disconnect the motor wires that correspond to the motor you are replacing. I had to disconnect the rear right in order to correctly rewire the front right motor.
8. Pull gently on the wire and use the spudger to pop the connector out of its socket
9. Pull wires free from board

10. Grasp the motor you want to remove in one hand and the frame in the other and pull firmly to pull the motor out.

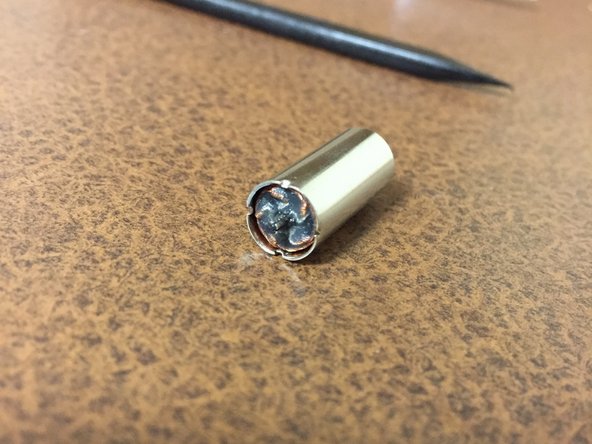

11. My motor did not work because the contacts were broken in the crash. Thus, the motor separated from its contacts.

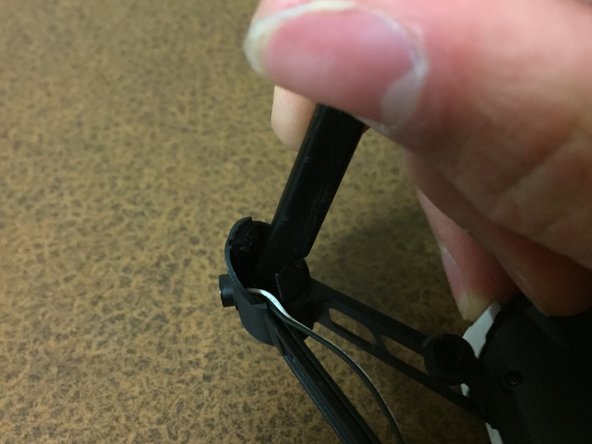

12. Use the spudger to remove the base of the motor by pushing it through the top.
