IQ America VD-8810L Motherboard Replacement

ID: 100365

Description: Replacing your motherboard can get your device...

Steps:

1. Wedge the spudger into the slot of the panel on the bottom of the device.
2. Rotate out the panel to reveal the screw holding the device together.

3. Use the Phillips head screwdriver to remove the screw.
4. Separate the Top and bottom halves of the device.

5. Remove batteries from the battery slot.

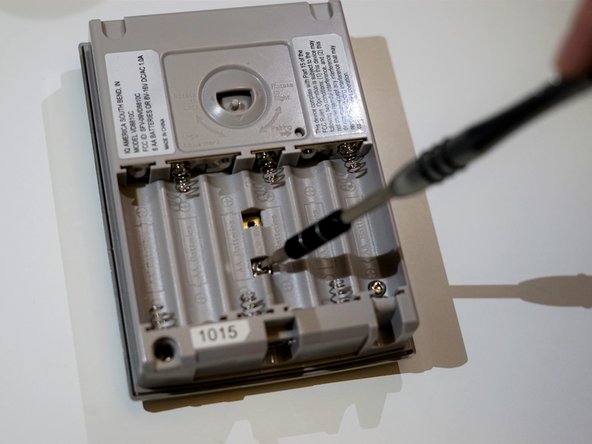

6. Unscrew the two Phillips head screws in the center of the battery slot.

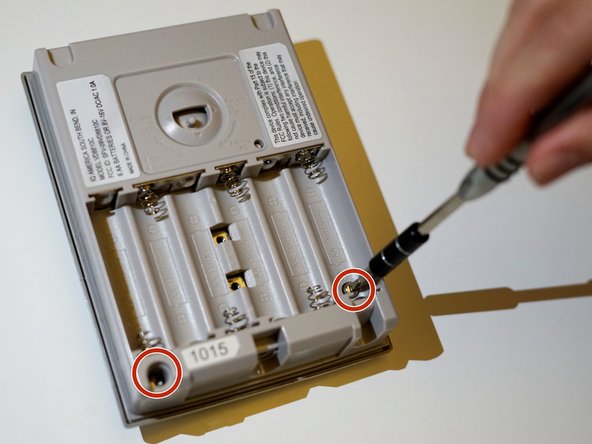

7. Unscrew the remaining two screws at the bottom of the unit using the 3.0 triangle head screwdriver.

8. Use the spudger to separate the top and bottom halves of the screen.

9. Disconnect the wires from the green motherboard to the bottom half by pulling apart the connecting pins.

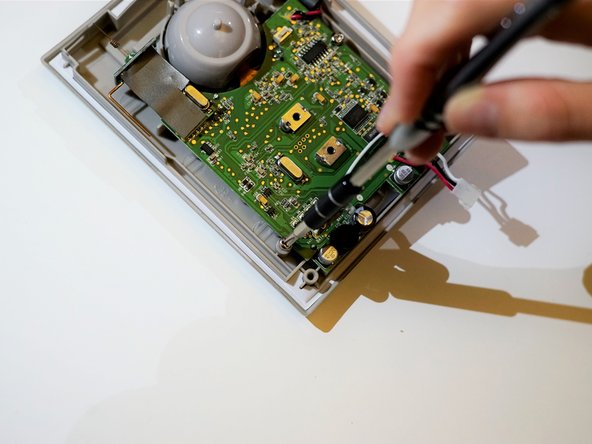

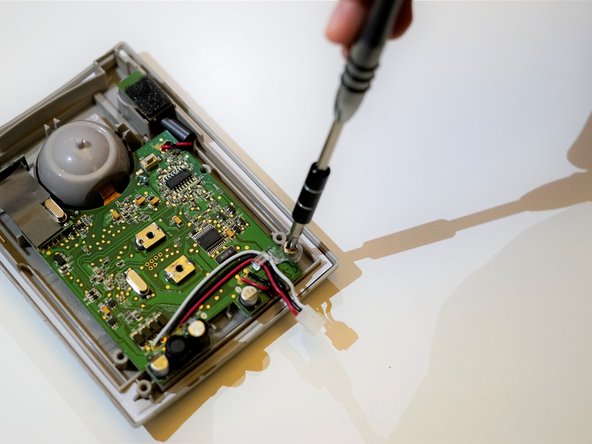

10. Unscrew all 3 Phillips head screws on the outside edges of the motherboard.

11. Carefully remove the microphone from the casing by pulling away from the device.

12. Gently lift the motherboard from the casing to reveal the speaker.

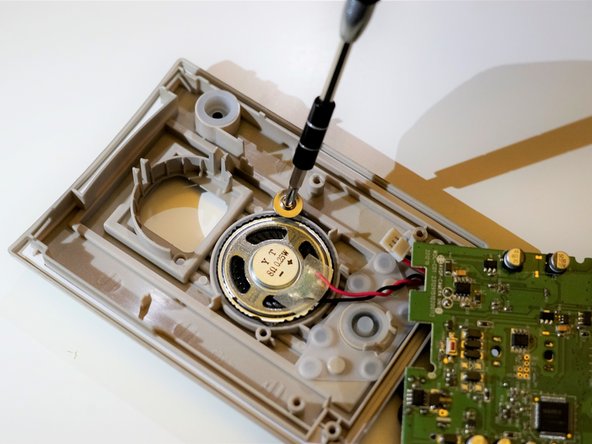

13. Unscrew the two Phillips head screws that hold the speaker in place.

14. Refer to this guide to desolder the speaker from the motherboard.
