IQ America VD-8810L Buttons Replacement

ID: 100366

Description: If the keypad has stuck buttons or is...

Steps:

  1. Remove the battery cover by pushing downwards and sliding the cover away from the device.
  2. Step image Step image
  3. Use a TA20 screwdriver to remove the screw in the center of the battery slot.
  4. Step image

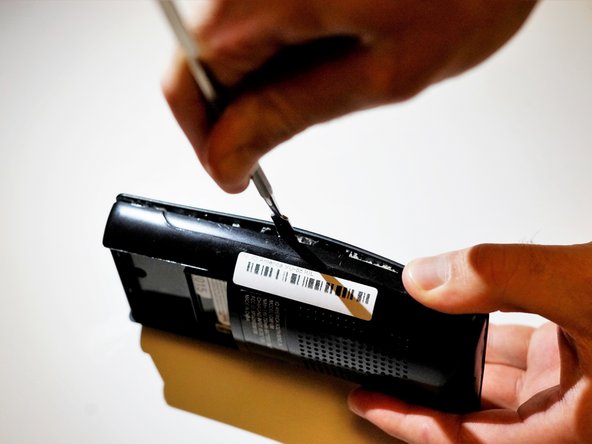

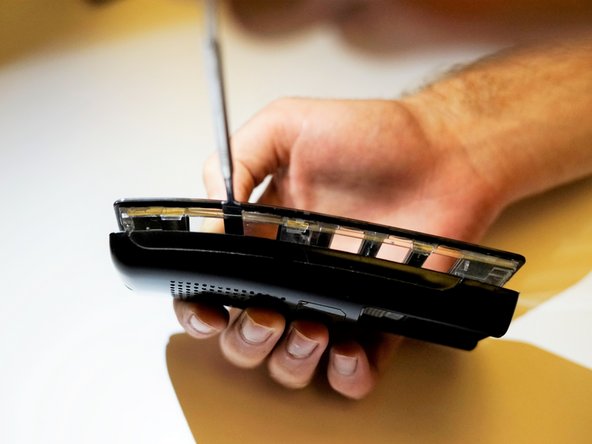

  5. Carefully wedge the flat metal spudger between the two sides of the remote until they separate. An intermediate amount of force will be needed to separate the pieces.
  6. Step image Step image Step image

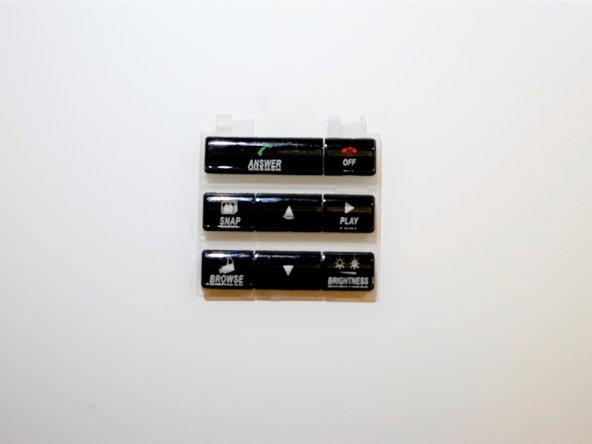

  7. Remove the buttons.
  8. Step image Step image
