LG X Style Camera Flash Replacement

ID: 108355

Description: Use this guide to remove the front camera...

Steps:

1. Power down the device and make sure that it is turned off.
2. Insert the plastic opening tool into the bracket space on the back bottom left of the phone.
3. Gently twist tool clockwise until the back case pops open [this will create a small gap].
4. Slide the tool along the gap around the entire device.

5. Insert the plastic opening tool into the indent below the battery, and pry up to lift and remove the battery.

6. With a Phillips #000 screwdriver, remove the twelve 3mm screws.

7. Create a gap with plastic opening tool by applying pressure between glass screen and plastic edge of device.
8. Slide prying tool around entire device beginning toward the top.
9. Lift off and remove the screen from the device.

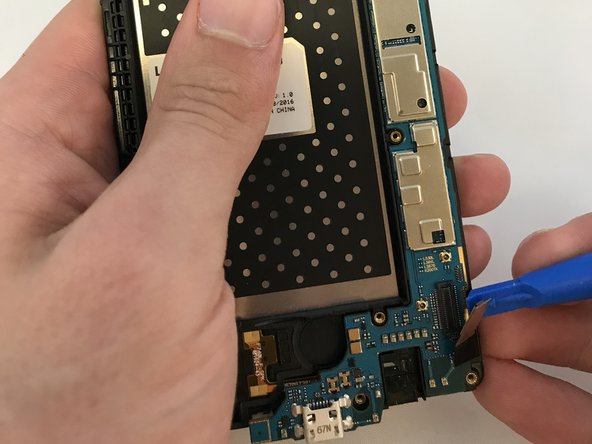

10. Using a plastic opening tool, lift up display connection until disconnected from the lower right hand of the phone.
11. Carefully lift the metal connection perpendicular to the mother board.

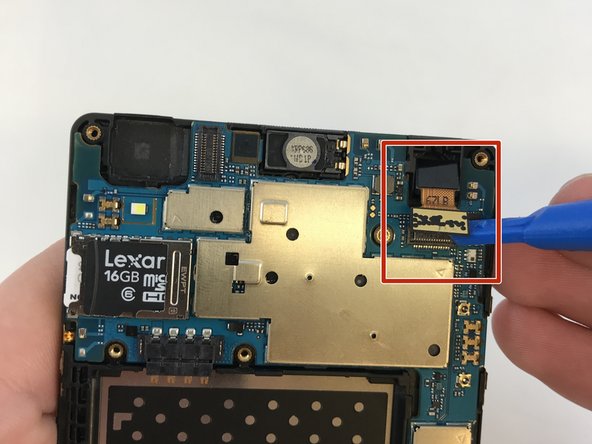

12. Gently lift the camera ribbon cable until the entire front camera housing is removed.

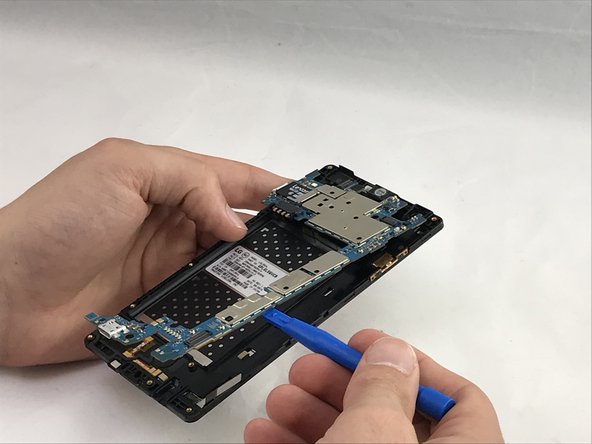

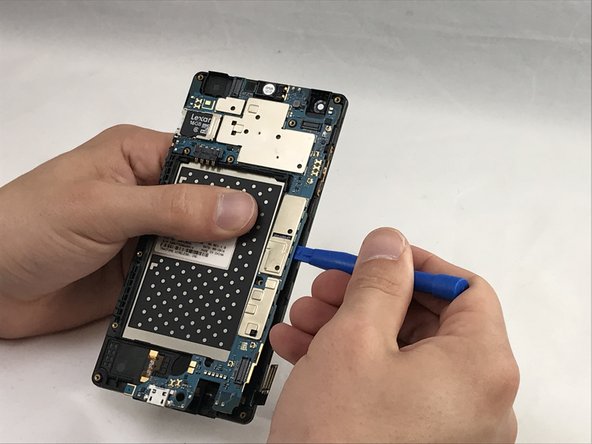

13. Use the opening tool, gently pry up along the edge of the motherboard.
14. Gently pull up and remove the motherboard from the device.
