Samsung WF1752WPW Washing Machine Door Seal/ Diaphragm Replacement

ID: 108570

Description: If your washing machine became leaky the...

Steps:

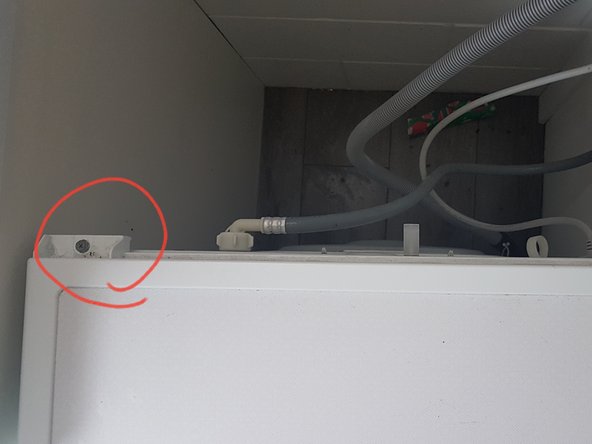

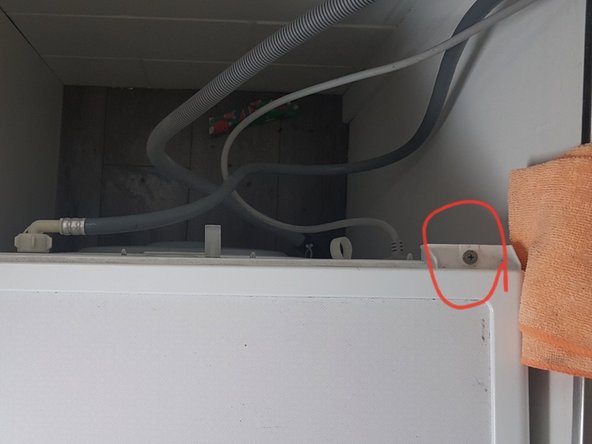

1. Unscrew the top lid
2. Take it off by sliding it towards back side of the washing machine

3. Take out loading bay

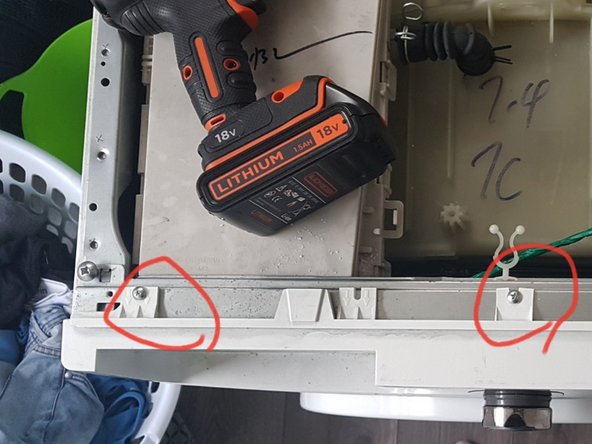

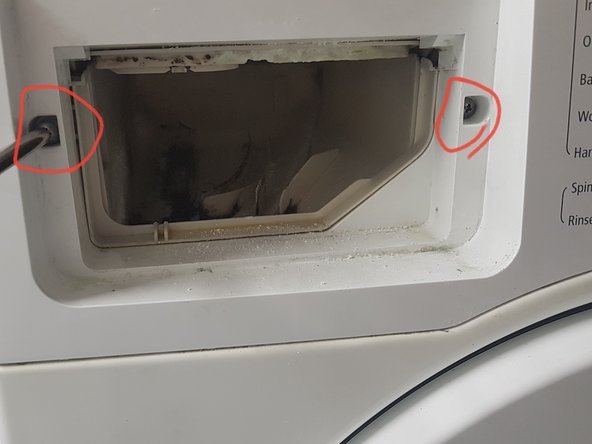

4. Remove 5 screws

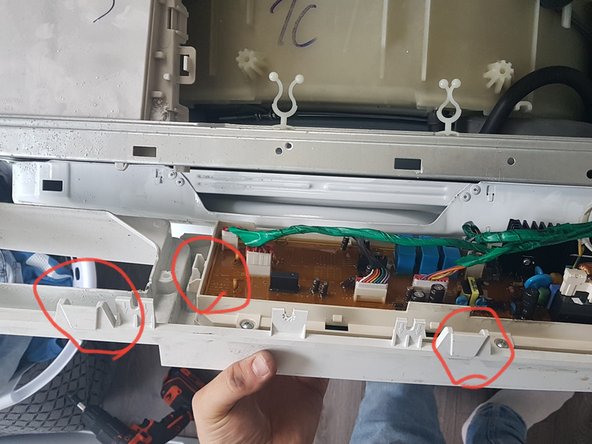

5. carefully unclip control panel

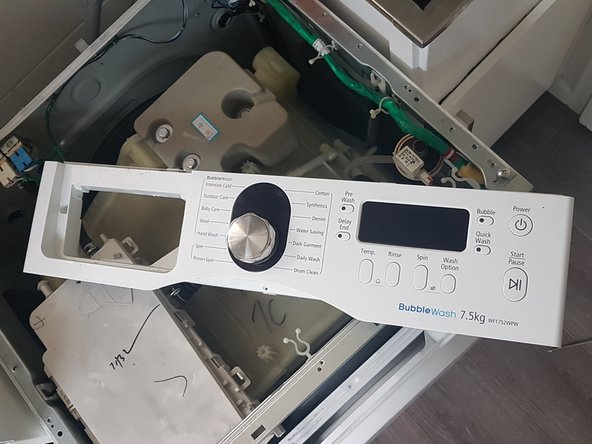

6. place it on top of your washing machine

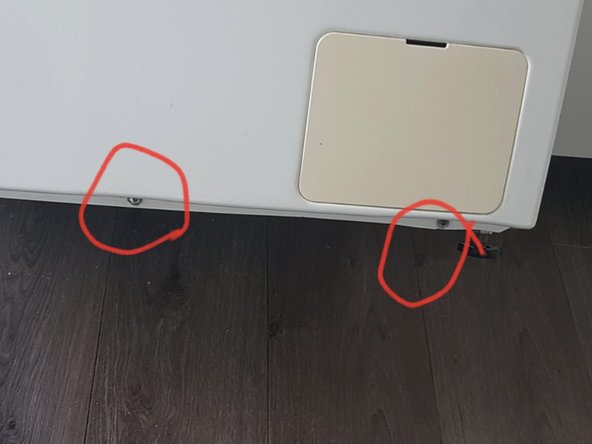

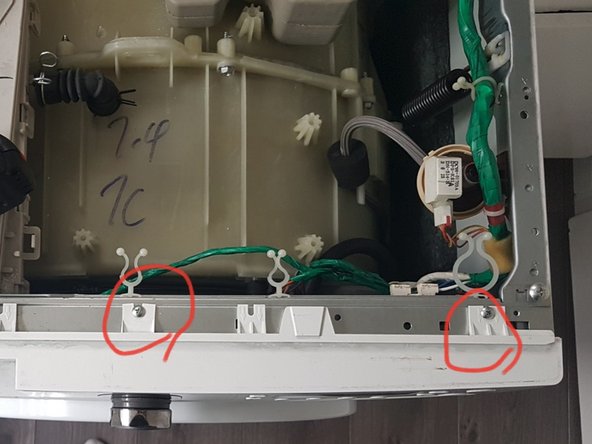

7. Remove 5 screws

8. Remove the front rim
9. Unclip Front Panel

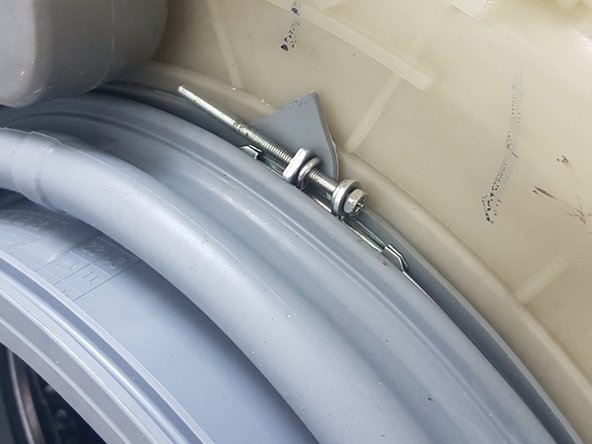

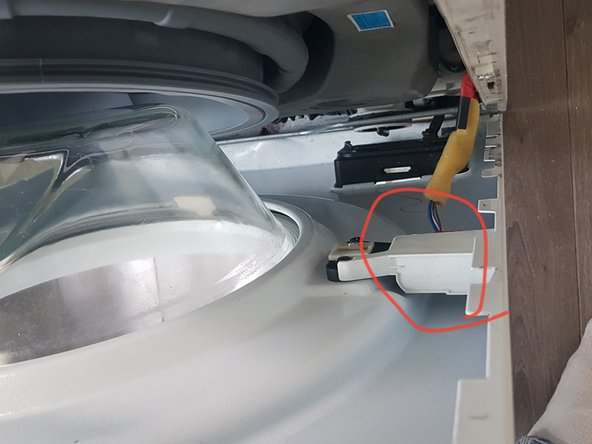

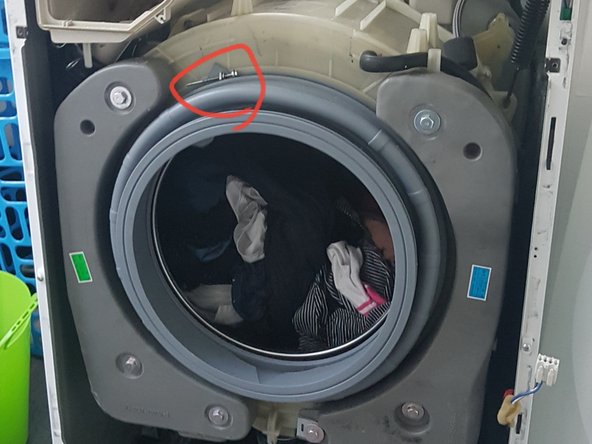

10. Unclip the door lock controller
11. Remove Front Panel

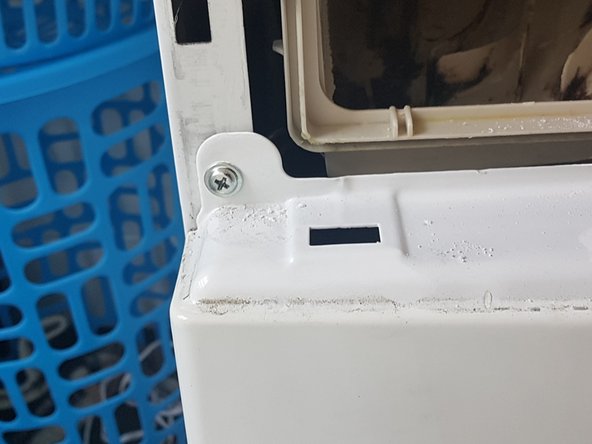

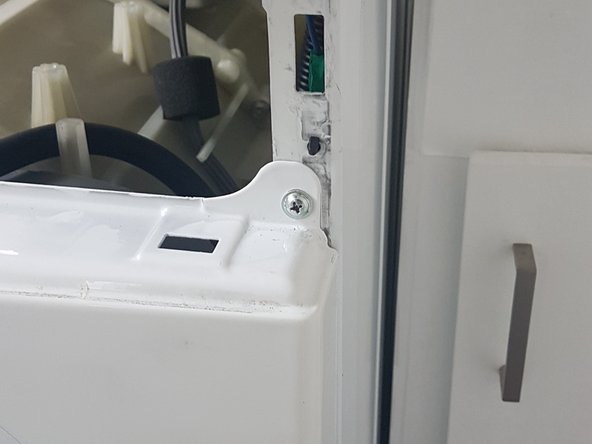

12. Unscrew 2nd rim
13. Remove 2nd rim
14. Replace Door Seal
