Edco KL14 Carburetor Replacement

ID: 130305

Description: Follow this guide to remove a carburetor on the...

Steps:

1. Before you begin, ensure that the machine is powered down and cool to the touch.
2. Disconnect the spark plug to prevent the engine from accidentally starting up during service:
3. Grab the plastic spark plug cap at the end of the spark plug wire.
4. Firmly pull to disconnect the spark plug cap from the spark plug.

5. To prevent the concrete saw from rolling during service, place wheel chocks in front of and behind a rear wheel.

6. Use your fingers to unscrew and remove the wing nut securing the air filter cover.

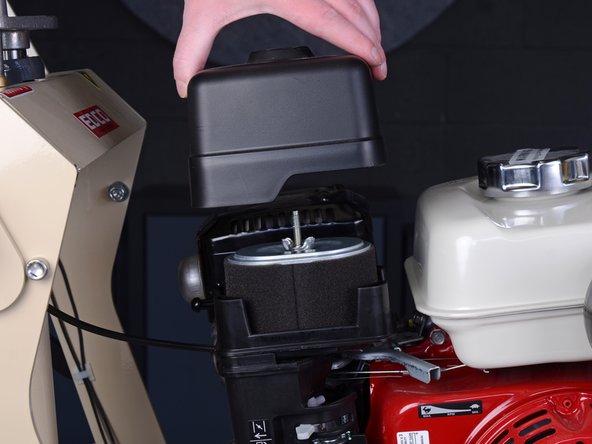

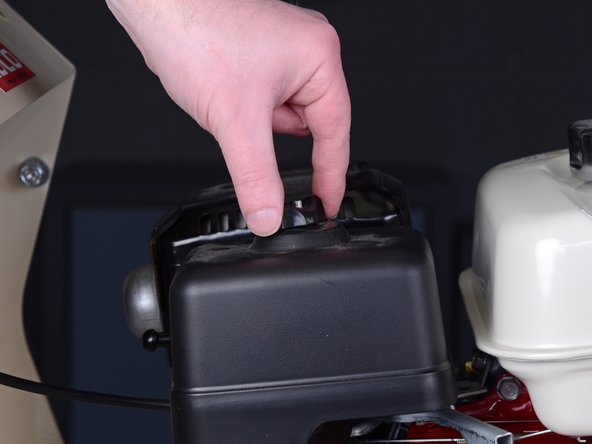

7. Lift the air filter cover straight up to remove it.

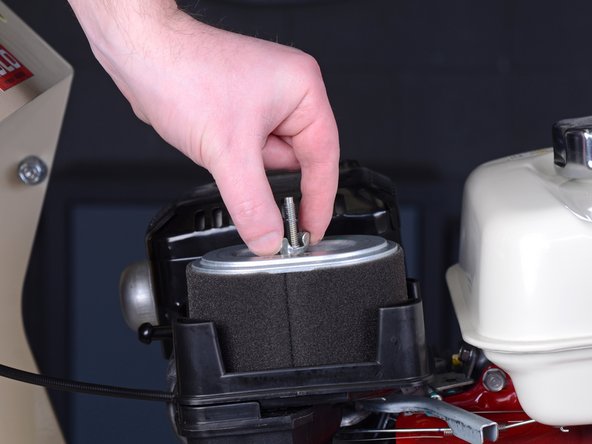

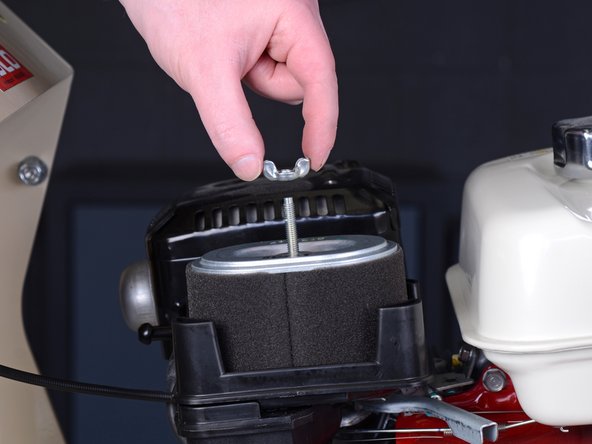

8. Use your fingers to unscrew and remove the wing nut securing the air filter.

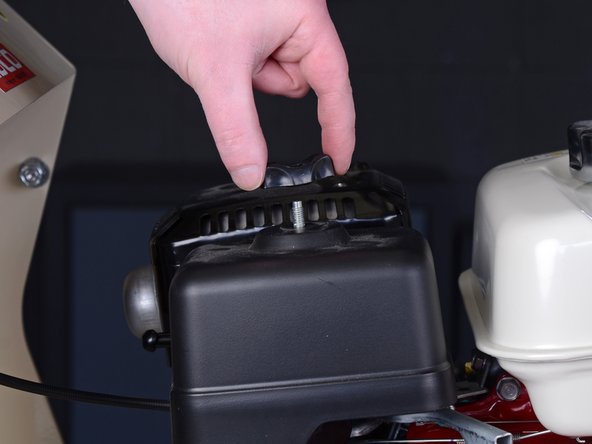

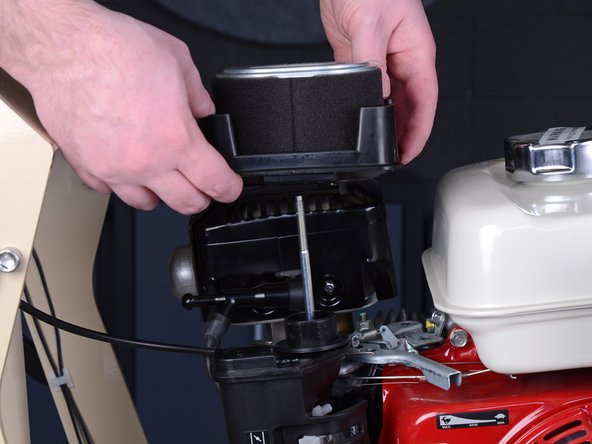

9. Grab the black plastic air filter platform and lift it straight up with the air filter to remove both components.

10. Use a 10 mm wrench to remove the two nuts securing the air filter elbow to the carburetor's threaded rods.

11. Use a 10 mm wrench to remove the bolt securing the air filter elbow to the concrete saw.

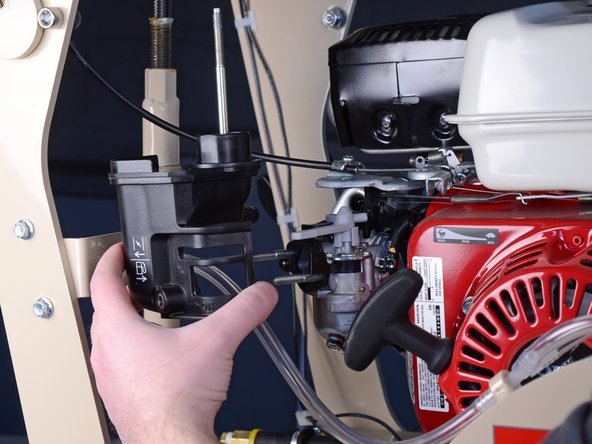

12. Pull the air filter elbow straight off of the carburetor's threaded rods.

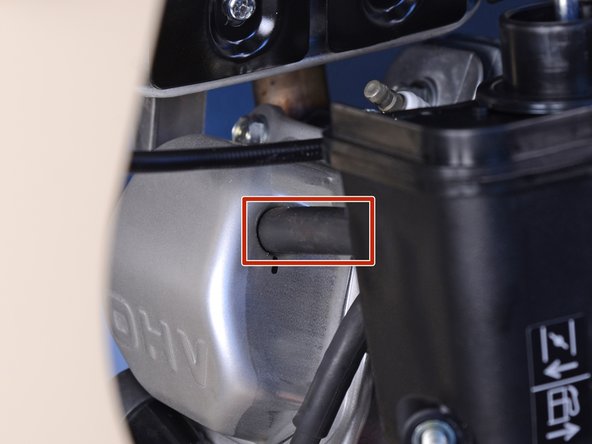

13. The breather tube on the rear side of the air filter elbow should come out with the elbow. If you have difficulty removing the elbow because of the breather tube, use your fingers to loosen its press-fit connection to the engine's valve cover.

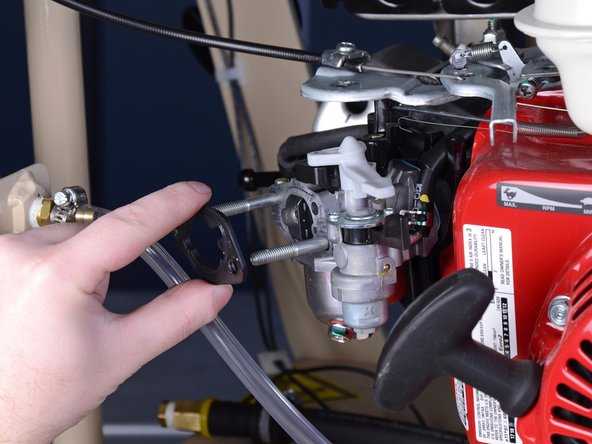

14. Pull the carburetor spacer straight off, making sure it clears the threaded rods.

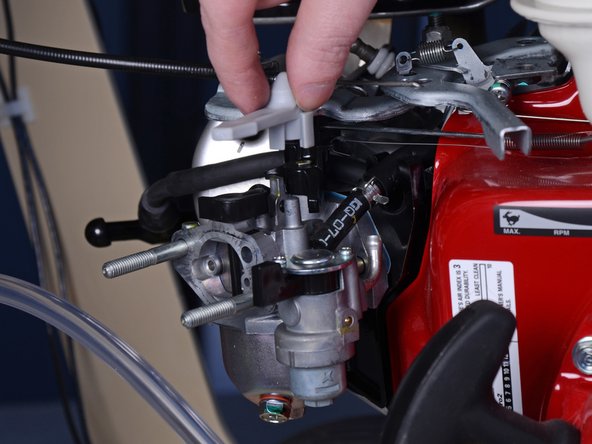

15. Pull the choke lever straight up to remove it from the carburetor.

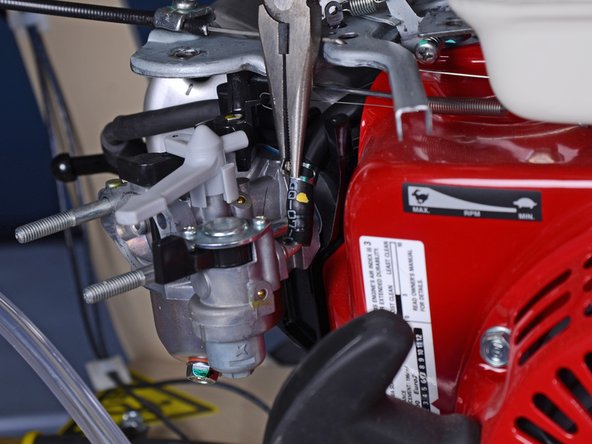

16. Use a pair of needle nose pliers to squeeze and loosen the spring hose clamp on the fuel supply hose.

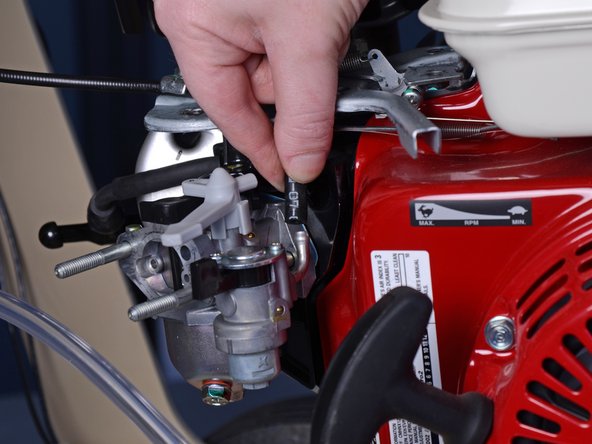

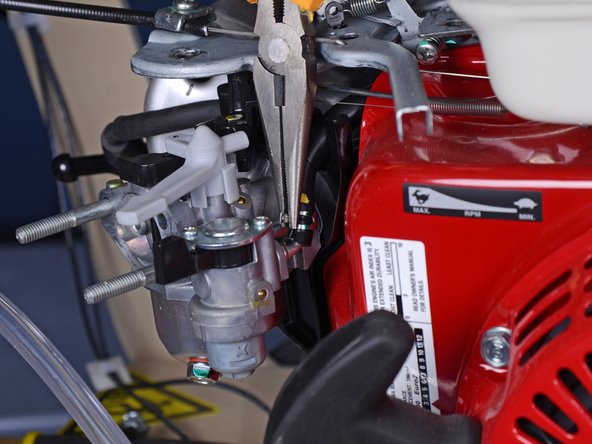

17. Move the clamp up 2-3 cm so it's not clamping down onto the end of the tube.

18. If you didn't completely drain the fuel tank beforehand, have a gasoline-safe container ready to catch the gasoline as it drains out of the hose.
19. Grab onto the end of the fuel supply hose and pull it straight up to disconnect it from the carburetor.

20. Pull the carburetor halfway out, but do not completely remove it yet.

21. Grab the throttle return spring and lift it up to remove it from the carburetor.

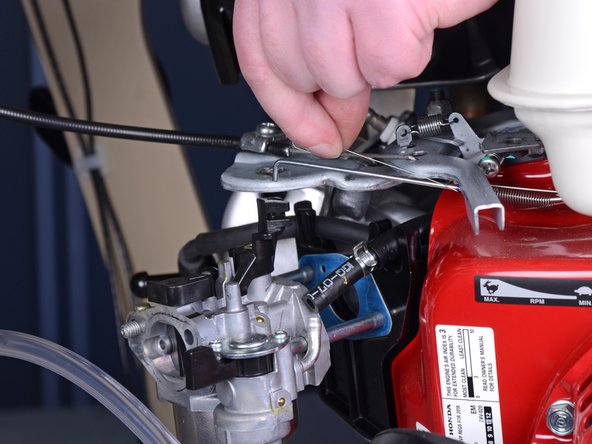

22. The governor rod is connected to the throttle return spring, so it should lift up and off with the spring. If not, lift it straight up to remove it from the carburetor.

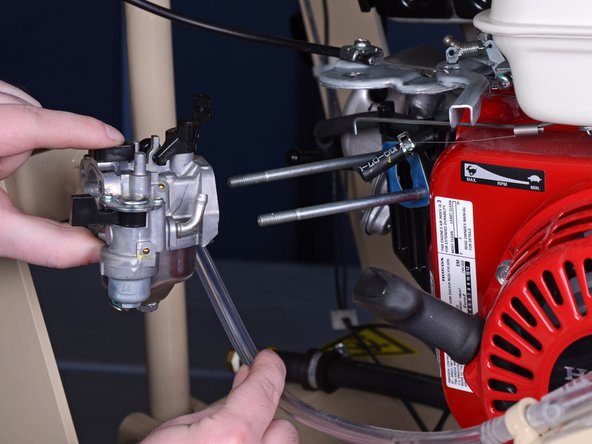

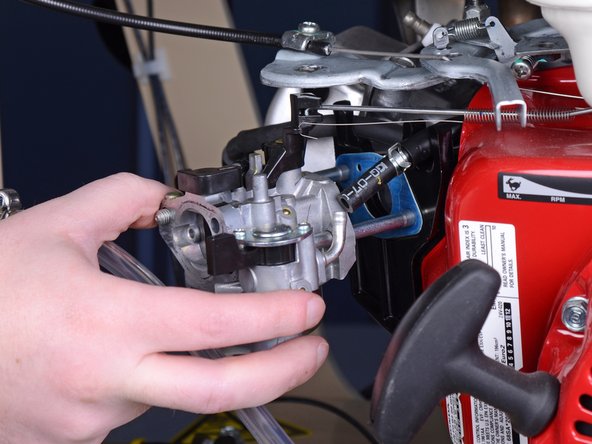

23. Pull the carburetor straight off of the threaded rods to remove it.
