2012 Ford Focus Oil And Filter Change

ID: 132720

Description: In this guide, I will demonstrate how to...

Steps:

  1. Run the engine for a few (~5) minutes, then turn it off.
  2. This allows the oil to drain easier.
  3. Do not work on the car while the engine is running.
  4. Step image
  5. Take off the oil cap from under the hood of the car.
  6. Step image Step image Step image
  7. Place the oil drain pan underneath the drainage bolt.
  8. Step image Step image

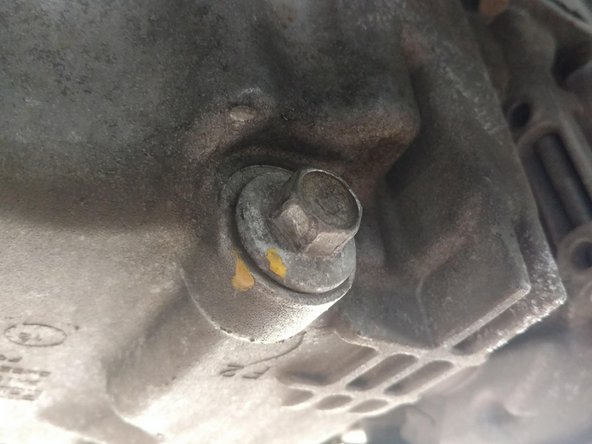

  9. Remove the drainage bolt using the 15mm wrench.
  10. Step image Step image

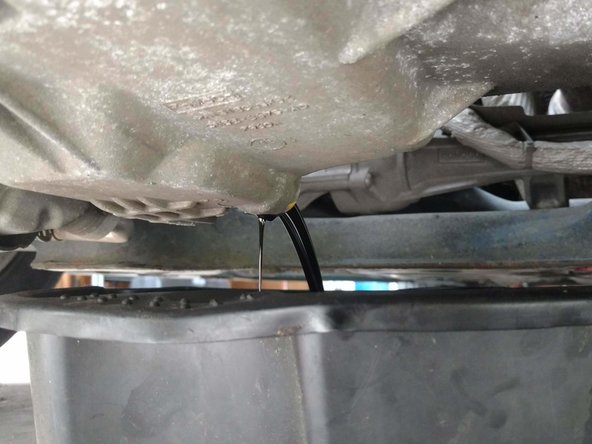

  11. Allow the oil to drain into the oil drain pan.
  12. This may take several minutes.
  13. Step image

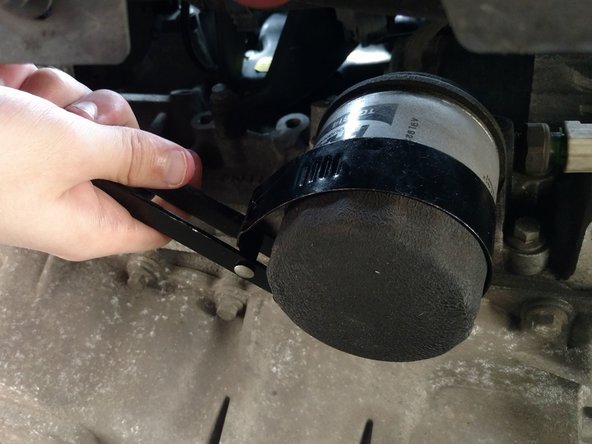

  14. Remove the old oil filter with the oil filter wrench once the oil has completely drained.
  15. Step image

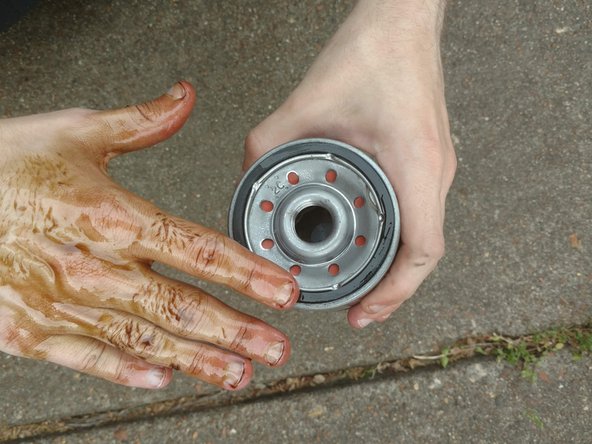

  16. Put a thin film of oil around the edge of the new oil filter.
  17. This allows for a better seal once the new filter is attached.
  18. Step image
  19. Attach the new oil filter using the oil filter wrench.
  20. Step image
  21. Reattach the drainage bolt with the 15mm wrench.
  22. Step image
  23. Place the funnel into where you removed the oil cap and pour in approximately four (4) quarts of oil.
  24. Step image

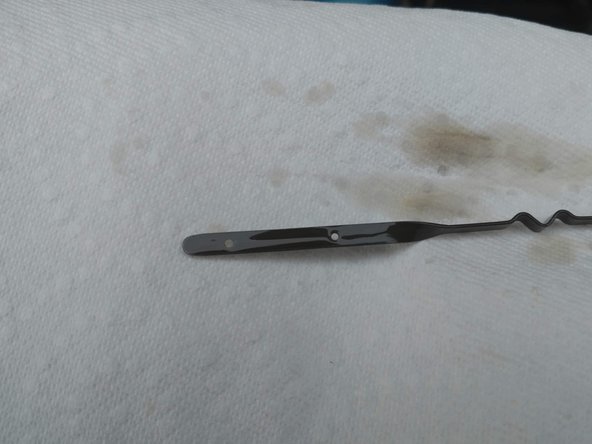

  25. Check the dipstick and ensure that the fill level is between the two holes. Add more oil if needed.
  26. Step image Step image Step image
