Kambrook KCE75 Heater Disassembly

ID: 133109

Description: Tools Required: # Phillips head screw driver...

Steps:

1. 4 x phillip screws located in the rear
2. Phillips head screw driver required
3. Remove the screw and take apart the top cover facing upwards
4. 2 wires are attatched to the top housing

5. 4x Phillips screws
6. Phillips head screw driver required
7. The front grill should fall out after screws are removed

8. Remove the switches that are attatched to the main shell
9. Using Needle nose plyer unclip the negative (black) cable first, then the red
10. Both switches have the same connecting plugs
11. The plugs of the swithces should have no corrision or wear, replace if cable if freyed or torn

12. Phillips head screw driver required
13. 4 phillips head screws are holding the plastic housing to the shell
14. Unscrew the 4 screws and remove the housing by hand
15. Heater should not have burn marks or heat damages, replace if damag is visible

16. This step requires a flat head or a pry tool
17. There are 4 tabs holding the heater core in place
18. Another 4 tabs that connects to the thermo switch
19. Pry the pins where the tab meets the connector plugs
20. Replace Pins if wires are freyed or damaged

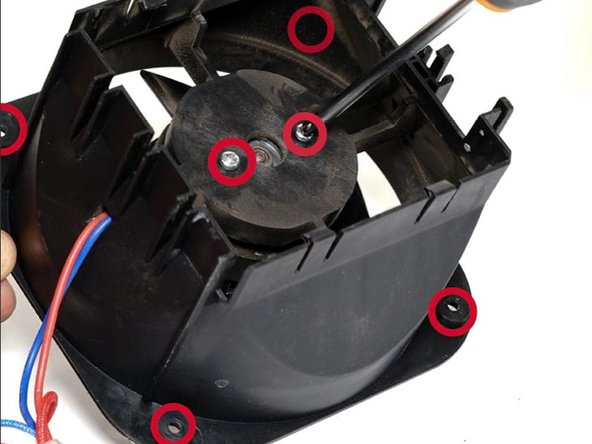

21. 2 Phillips head screw are holding the motor and blade in place
22. Phillips head Screw drive required
23. From the rear unscrew the 2 screws
24. Removed the motor and fan from the front
25. Disconnect the wires piror to pulling the moto out

26. Needle nose plyers and pry tool/flat head are required for this step
27. Micro switch is connected with a tab plug.
28. Using a small flat head or pry tool, release the tab from the switch
29. Leave the thermostat connected
