Nintendo Switch Heat Sink Replacement

ID: 139951

Description: Follow this guide to replace the heat sink on a...

Steps:

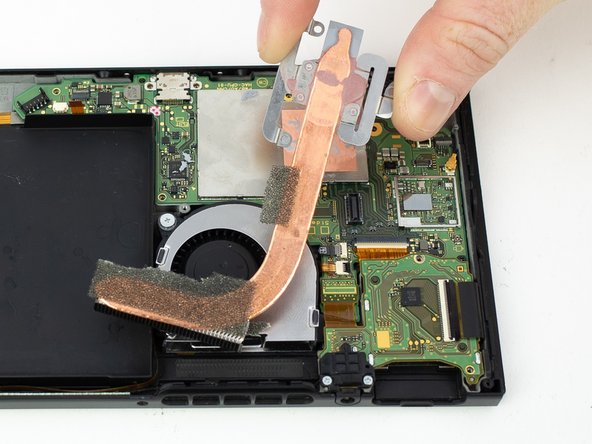

1. Remove the three 3.1mm Phillips #000 screws from the heatsink.

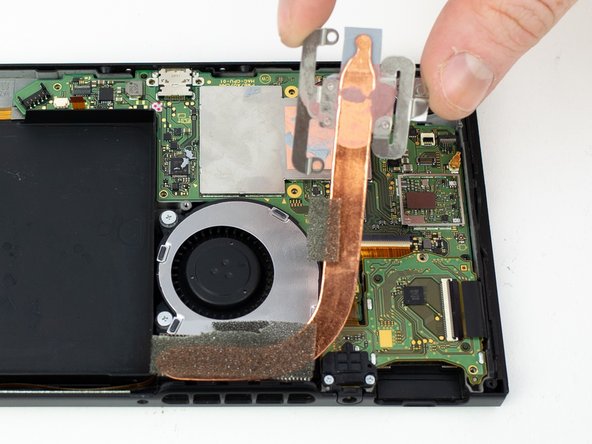

2. Pull the heatsink up 45 degrees and rotate it to the right to remove.
3. Before reassembly, follow the thermal paste guide.
4. Clean all the thermal paste off the underside of the heat sink using isopropyl alcohol (>90%) or Artic Silver ArctiClean.
5. Clean and replace the thermal paste on the processor cover.
