Shark Rocket Zero-M Belt Replacement

ID: 142549

Description: This guide is intended to show how to access,...

Steps:

1. Flip the vacuum on its right side.

2. Turn the T10 Security Bit screwdriver counterclockwise to remove the 15mm screw.

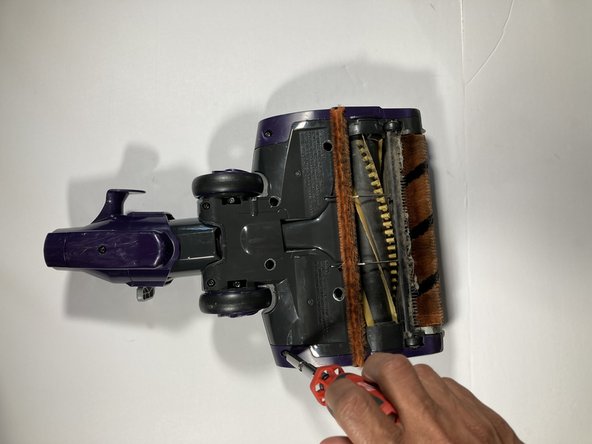

3. Turn the vacuum face down.

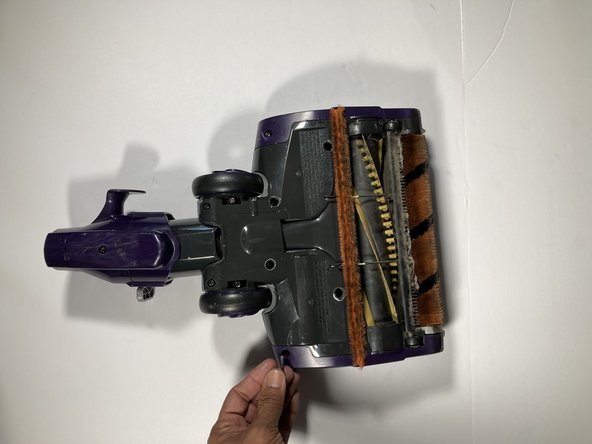

4. Turn the T10 Security Bit screwdriver counterclockwise to remove the 15mm screw.

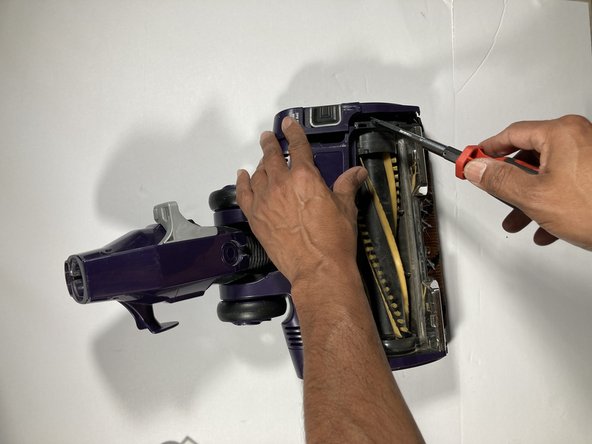

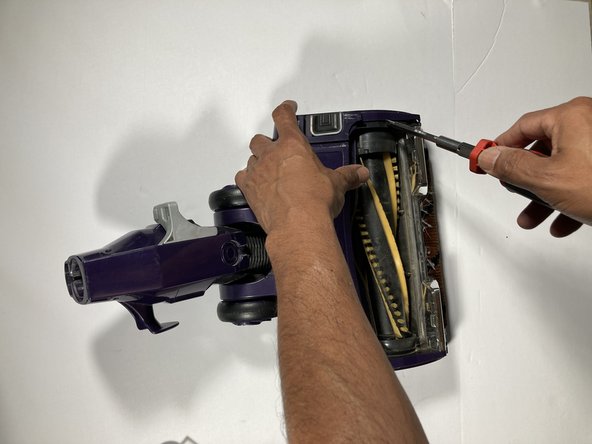

5. Use a spudger to pry the side of the vacuum open.

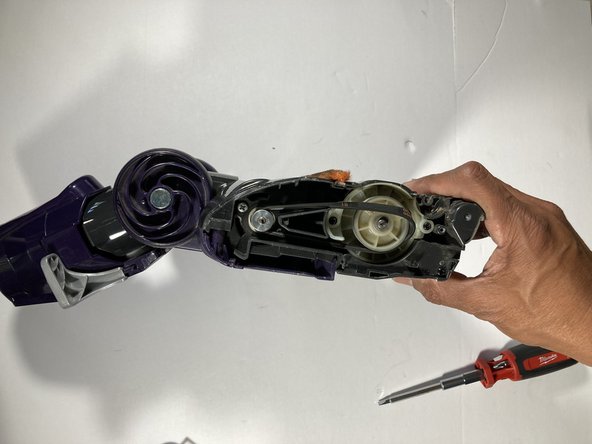

6. Use a spudger to pry the old belt away from the two gears.
7. The new belt will be tight and difficult to put back on. In order to reinstall, place the belt on the brushroll, then rotate the brushroll a couple rotations to make sure the belt is aligned correctly.

8. Repeat on the other side of the vacuum.
