Razer Blade Stealth 2016 RAM Replacement

ID: 145336

Description: The RAM or random access memory in your Razer...

Steps:

1. Use a Torx (T5) screwdriver to remove the eight 3 mm screws on the back case.
2. Remove the rear cover by prying up lightly starting in one of the corners.

3. Use a Phillips screwdriver to remove the six screws securing the battery.

4. Unplug the battery connector from the motherboard.
5. Remove the battery from the device.

6. Remove the red and black cables that are attached to the motherboard.

7. Remove the four 3.4 mm screws around the black square using a T4 Torx screwdriver.
8. Remove the heat sink.

9. Remove the 3.4 mm screws to the cooling fans using a T4 Torx screwdriver.
10. Remove the cooling fans.

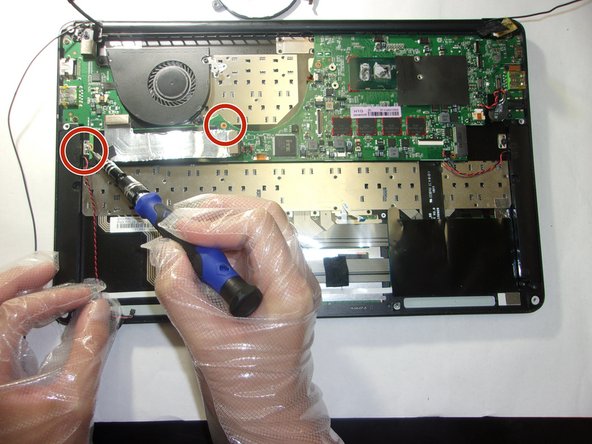

11. Remove the 3.4 mm screws on the perimeter of the motherboard using a T4 Torx screwdriver.

12. Remove the motherboard.

13. Desolder the pins on the motherboard to remove the RAM.
14. WARNING: Be careful while using the soldering iron.
