Replace or add RAM

ID: 145420

Description:

Steps:

1. remove the feet with a spudger

2. Remove the 11 screw with a PH0 screwdriver.
3. The screws are identical

4. Insert a spudger between the bottom cover and the keyboard module, then go around the whole cover to uncip everything.
5. Remove the bottom cover from the computer.

6. You now have acces to the inside of the machine.

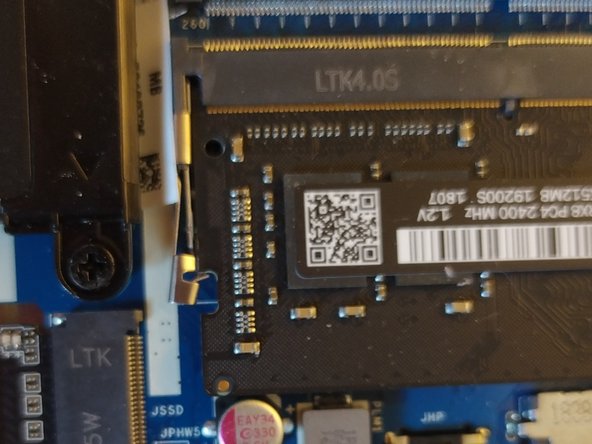

7. Flex the metal retaining clips on the side of the RAM away from one another.
8. If done correctly, the RAM will pop out of its lock.

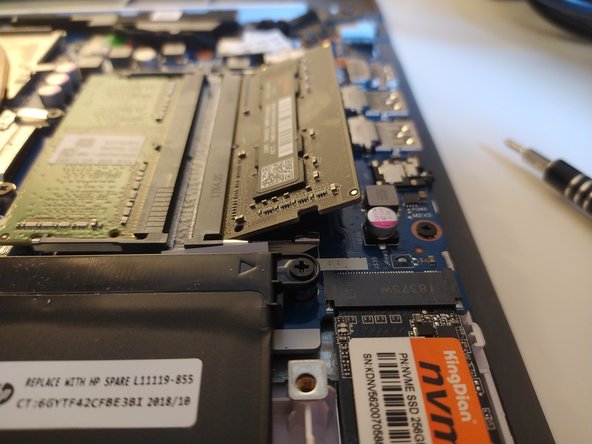

9. To insert a module, angle it as shown in the third picture, then insert it and push it down until it locks.
