Busch+Müller IXON Core Connecting rechargeable battery

ID: 147174

Description:

Steps:

1. Here the loose connection is displayed.

2. Remove the three Torx-screws.

3. The focusing mirror is clamped behind the rubberized housing. It can be levered out of the holder with a screwdriver.

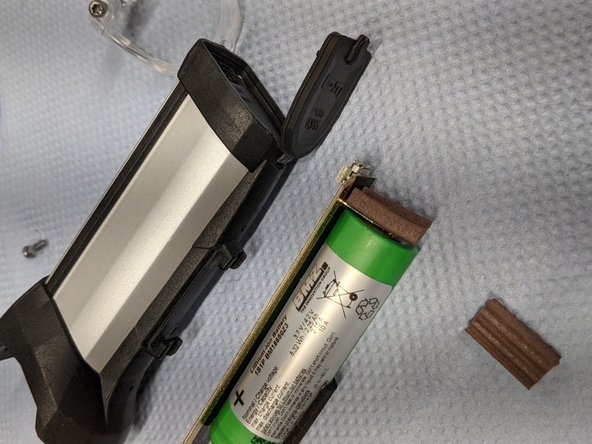

4. With a little bit of shaking, the circuit board should come out along with the battery pack. It may be necessary to push the inner part of the ON button a little to the side.

5. The contact arm must be bent slightly so that it presses against the battery. Then connect it to the battery it with some solder.
6. This work step should be carried out by a specialist, since the battery can be thermally damaged by temperatures of 180°C and this could be dangerous. During normal work with a soldering iron, the battery should never reach that temperature range.

7. This step is optional. A little foam should be used to prevent the battery unit from moving in the housing.
