PlayStation VR2 Chip ID

ID: 158337

Description: Here's a chip identification summary for the...

Steps:

  1. Sony CXD90067GQ applications processor
  2. Samsung K4U6E3S4AA-MGCL 2 GB LPDDR4X SDRAM memory
  3. Samsung KLM4G1FETE-B041 4 GB NAND flash memory w/ controller
  4. Cirrus Logic WM1801B audio CODEC
  5. NXP Semiconductor PCA9957 24-ch. LED driver
  6. Texas Instruments TPS2553D adjustable USB power switch
  7. Nisshinbo Micro Devices R1161N121D 300 mA / 1.2 V LDO regulator
    8. Step image Step image
  8. Sony CXD90068GF power management
  9. Realtek RTS5443H USB type-C port controller
  10. Samsung S2DOS15 display power management
  11. Mitsumi MM3736BRLE 20 A synchronous buck DC-DC converter
  12. Richtek RT6052GF current shunt monitor
  13. Texas Instruments TPS2553D adjustable USB power switch
  14. Nisshinbo Micro Devices R1161N281D 300 mA / 2.8 V LDO regulator
    15. Step image Step image

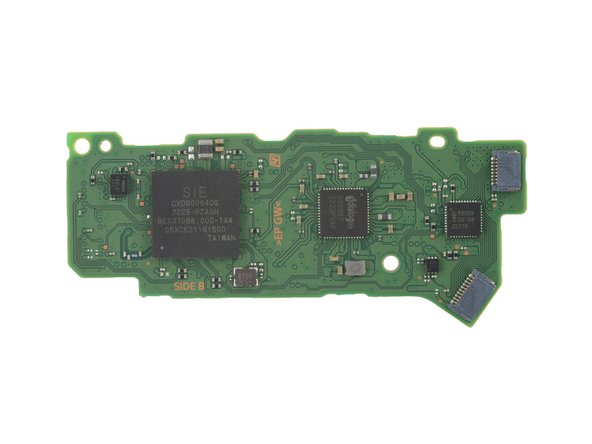

  15. Sony CXD90064GG Bluetooth SoC
  16. Renesas DA9087 power management
  17. NXP Semiconductor PCA9957 24-ch. LED driver
    18. Step image Step image

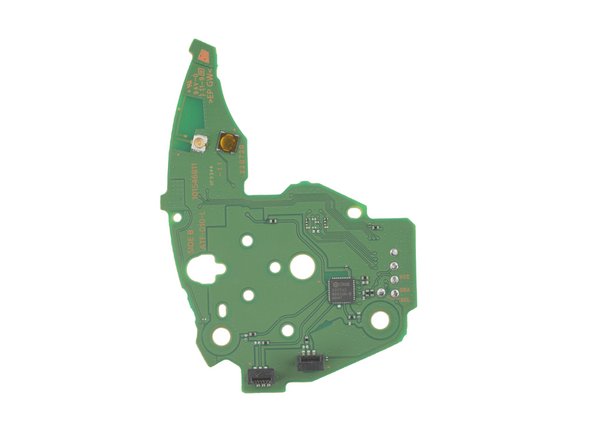

  18. TDK-InvenSense ICM-42682 6-axis MEMS accelerometer & gyroscope
    19. Step image
  19. Nuvoton NAU8225YG 3.0 W class-D audio amplifier
    20. Step image Step image
  20. Cirque 6G06A3 touch controller
    21. Step image Step image
