Mazda Miata Blower motor Replacement

ID: 158364

Description: A common problem in Miata AC systems is that...

Steps:

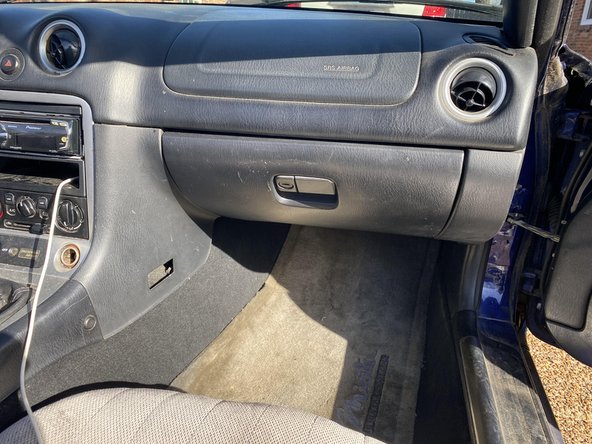

1. The blower motor is located underneath the passenger side glove box.

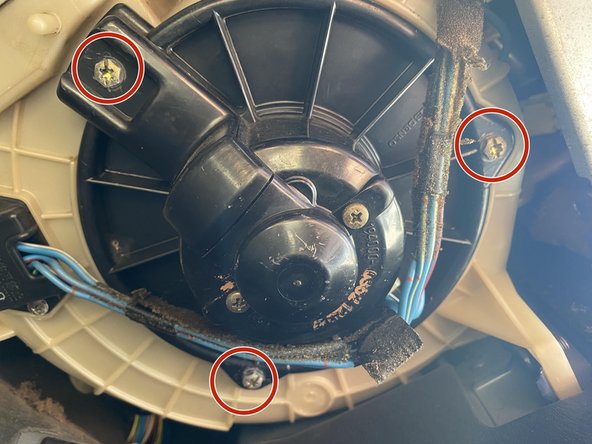

2. 3 screws fasten the motor housing to the system. These screws can be removed with a flathead screwdriver.

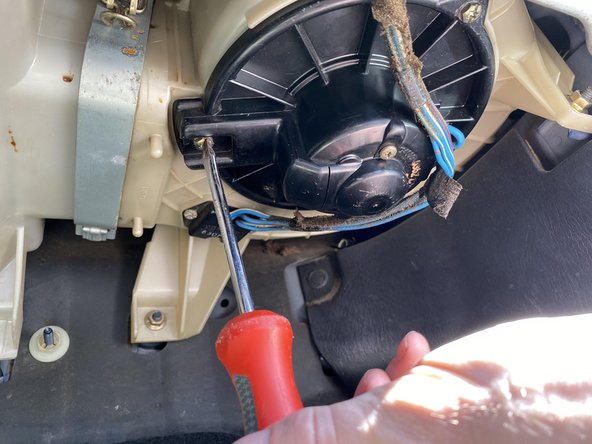

3. Use the flathead screwdriver to remove all 3 screws from the housing.
4. Remove the rear screw first for easier disassembly.

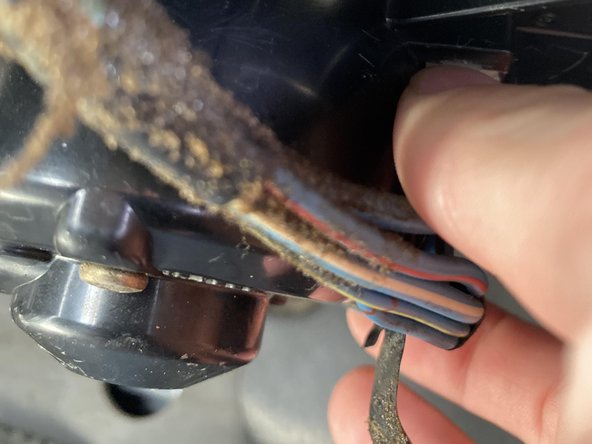

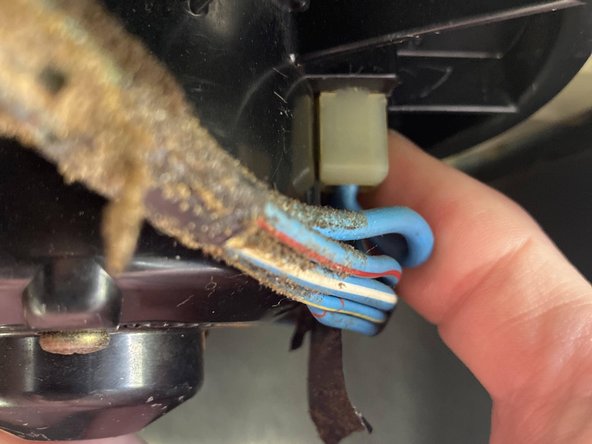

5. Squeeze both sides of the plug, and pull firmly. The plug should slide out with minimal force.

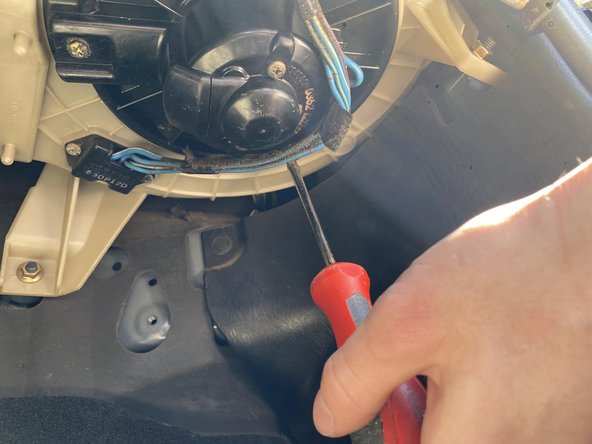

6. A flathead screwdriver can be used to depress the tab if the plug is difficult to remove.

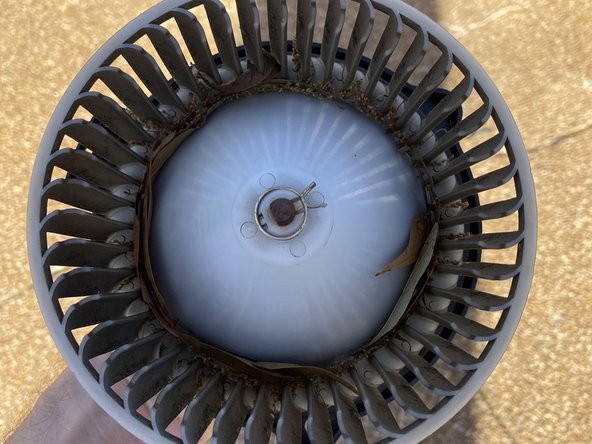

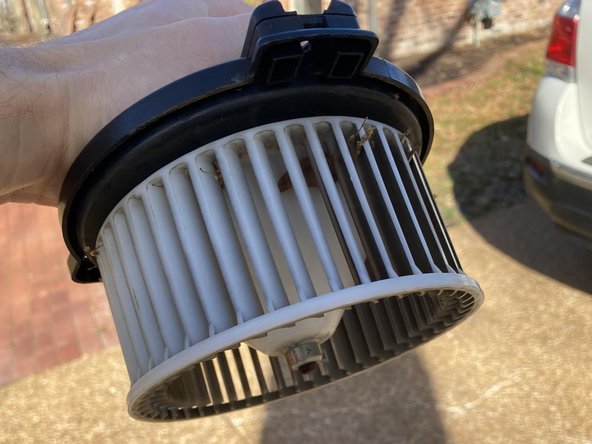

7. Pull the blower motor assembly out of the housing and clear any debris.
