Mac Studio 2023 Antenna 3 Replacement

ID: 165080

Description: Use this guide to replace the front antenna...

Flip your Mac Studio over and lay it down so the bottom faces up and the SD card slot and two front USB‑C ports are facing you.

Adhesive strips secure the bottom cover screw pad.
Heat an iOpener and lay it over one of the bottom cover screws for two minutes to soften the adhesive near the screw—this is where you'll insert a spudger in the next step.
You can also use a hair dryer or heat gun, but be careful as extreme heat will warp the pad.

Insert the point of a spudger under the pad's inner edge, near the screw you applied heat to in the previous step.
This may take some force. If you're having trouble, apply more heat and try again.
Use the spudger to lift the pad and separate the adhesive.

During reassembly:
If the adhesive strips are still sticky, you can reuse them.
If you're applying new adhesive:
Use the flat end of a spudger and your fingers to scrape up and remove the old adhesive strips.
Use isopropyl alcohol and a microfiber cloth to remove the old adhesive residue.
If you don't have replacement adhesive, you can use strips of thin, double-sided tape 2–3 mm wide.
Apply the new adhesive strips to the bottom cover and remove their liners.
Firmly press the bottom cover screw pad into its recess to secure it.

While the Mac Studio uses Torx Plus screws, standard Torx bits work. Make sure to apply constant, downward force to prevent stripping.
Use a T10 Torx screwdriver to remove the four 8 mm‑long screws securing the bottom cover.
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came.

Insert the point of a spudger in one of the bottom cover's ventilation holes and lift the cover until you can grab it with your fingers.
Remove the bottom cover.
To orient the bottom cover, align the Kensington lock cutout in the top left corner with the corresponding one on the internal frame.

Use a T10 Torx screwdriver to remove the six screws securing the power supply:
Four 6 mm‑long screws
Two 7 mm‑long screws with washers
You may need to remove a sticker to access these screws. If you do, save it for reassembly.

A tight plastic latch secures the power cord port cable.
Firmly hold the power supply with one hand and lift up the edge near the power cord port.
With your free hand, pinch the head of the power cord port connector to unclip it and pull straight down to disconnect the cable.

Only grab the power supply by its edges. Various power components and capacitors are left exposed.
Carefully tilt the power supply away from the power cord port so it's at a 90-degree angle.
Be careful not to strain the cable that's still connected to the power supply.
Keep the power supply tilted up for the next step.

A delicate plastic clip secures the power supply signal cable.
With your free hand, pinch the head of the power supply connector to unclip it and pull straight away from the socket to disconnect the cable.

Flip your Mac Studio around so the SD card reader and two front USB‑C ports are facing you.

Use a T6 Torx screwdriver to remove the eight screws securing the internal frame:
Seven 5 mm‑long screws
One 4 mm‑long screw

Slowly lift the internal frame straight up and remove it, making sure no cables get snagged.
During reassembly, make sure the power supply signal cable and power cord port cable don't get stuck under the frame when lowering it into place.

Use a T3 Torx screwdriver to remove the two 2 mm‑long screws securing the antenna cable cover.
Use tweezers or your fingers to remove the cover.

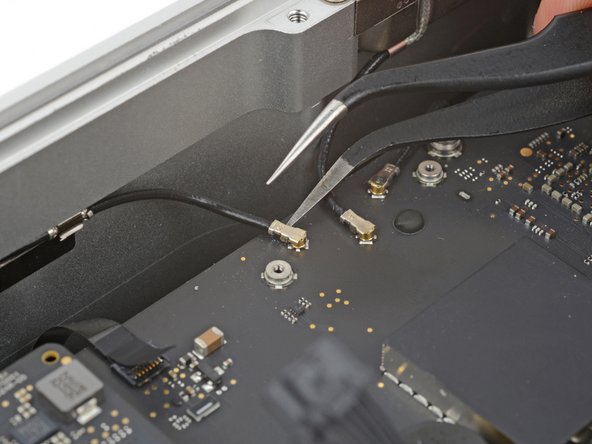

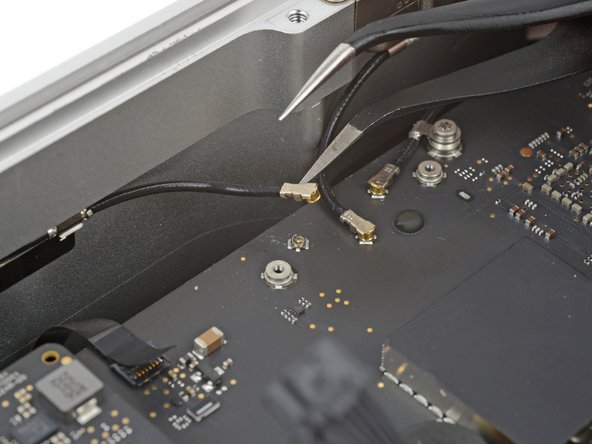

Insert one arm of a pair of angled tweezers under the metal neck of antenna 3's coaxial connector (next to antenna 2's connector) and lift straight up to disconnect it.
To reconnect the cable, hold the connector in place over its socket and press down with the flat end of a spudger—the connector should snap into place. If you're having trouble, don't try to force the connector over the socket. Reposition it and try again.

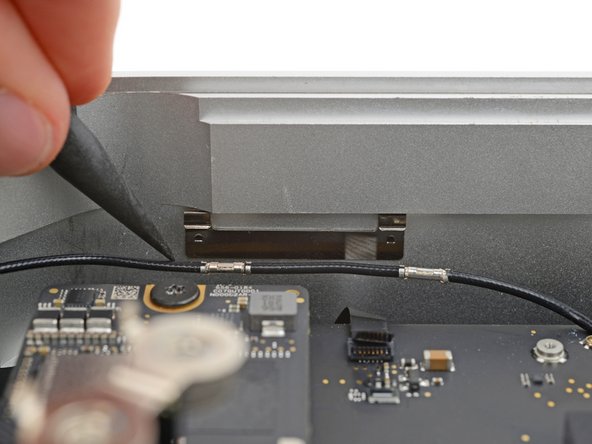

Use the point of a spudger to push antenna 3's cable down and unclip it.

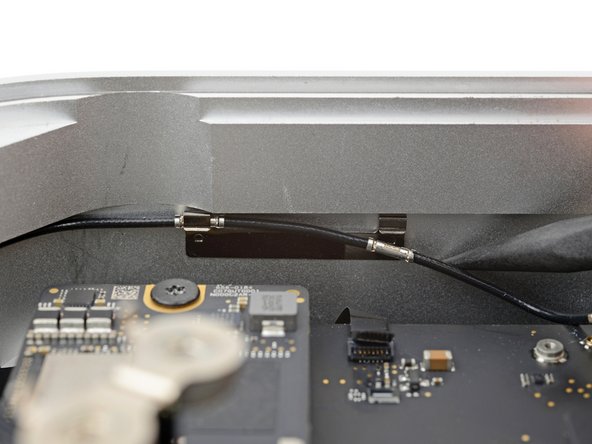

During reassembly, use the flat end of a spudger to push the cable's metal sleeves into their clips.

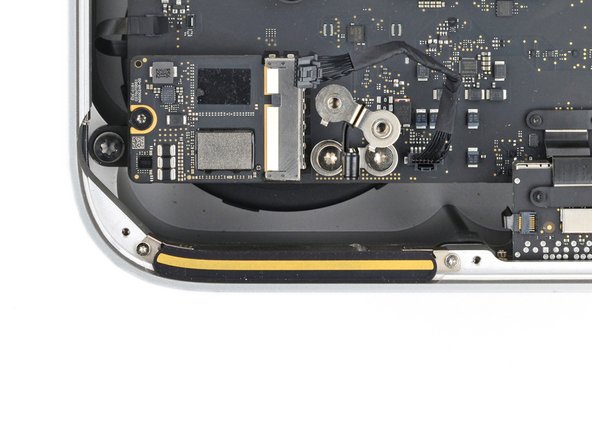

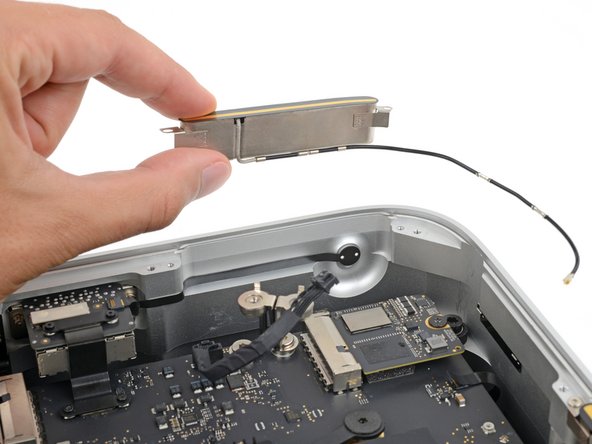

Use a T5 Torx screwdriver to remove the two 3.5 mm‑long screws securing antenna 3.
