Swiffer WetJet Motor Replacement

ID: 165597

Description: These days disposing of things that do not work...

Steps:

1. Remove the cleaning solution, batteries and the battery container.
2. Use a Phillips #1 screwdriver to remove the screw (1.4x6.0mm) at the bottom of the WetJet.

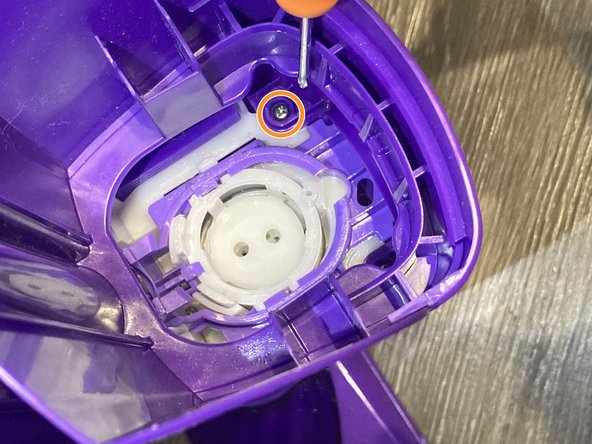

3. Remove two more screws (1.4x5.0mm) in the interior where the cleaning solution is placed.

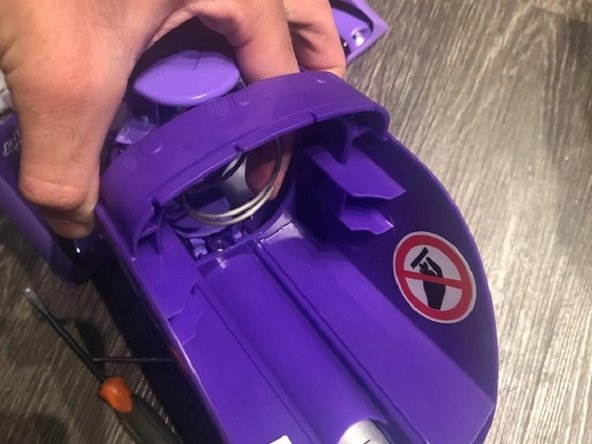

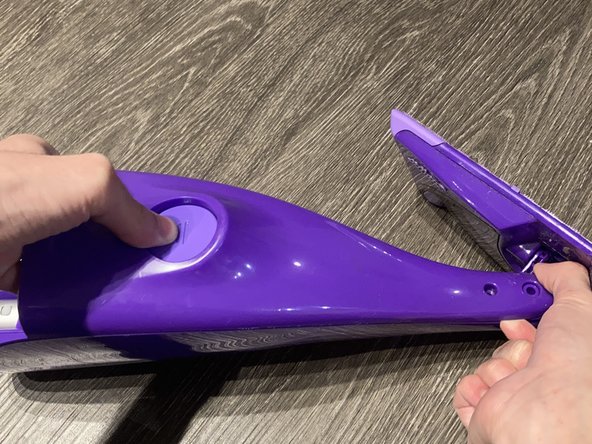

4. Use two hands to remove the cover of the Swiffer by lifting the bottom part with one hand while with the other hand pull the cover from the cleaning solution release button.

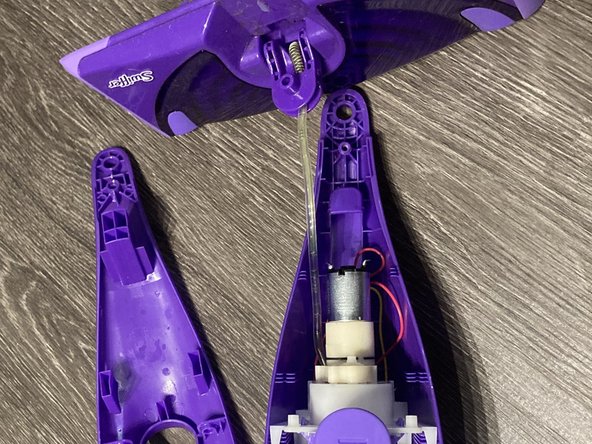

5. Dissasemble the head of the Swiffer WetJet to leave the engine alone and be able to work with it freely.

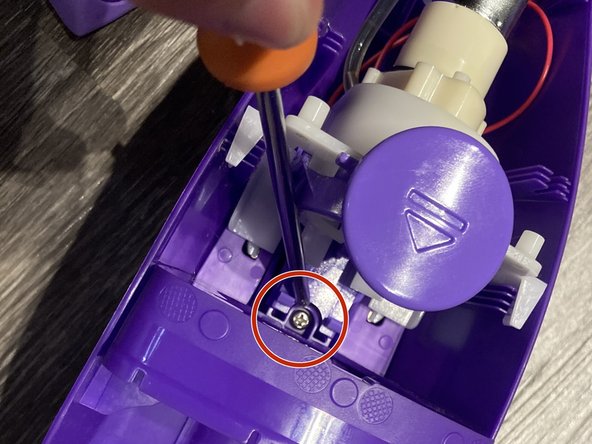

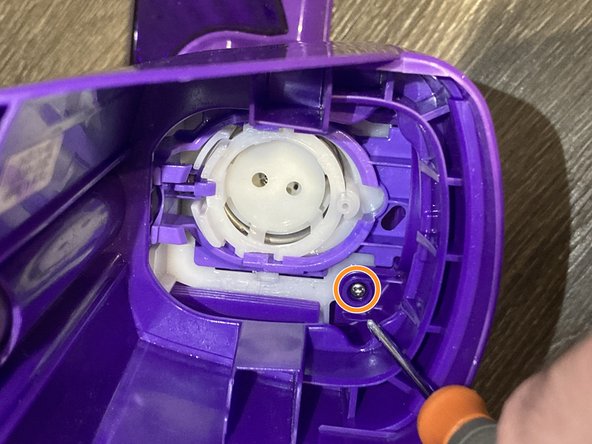

6. Remove the internal screw (1.4x5.0mm) that holds the release cleaning solution button.

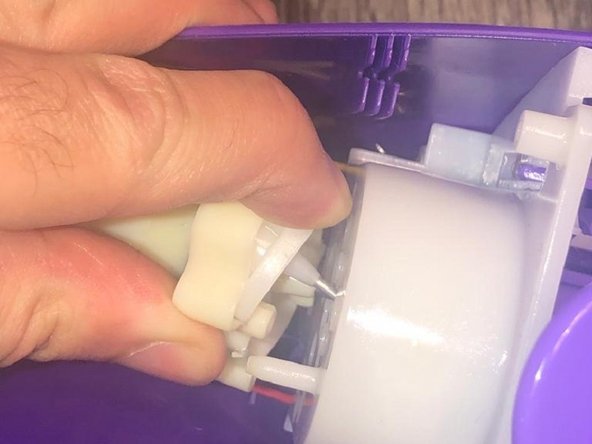

7. With a flathead screwdriver (1/4), deatach the button to release the cleaning solution by lifting it with your hands.

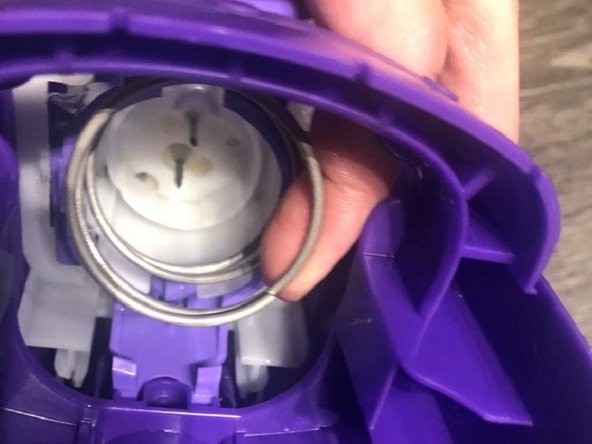

8. Remove the spring of the release button.

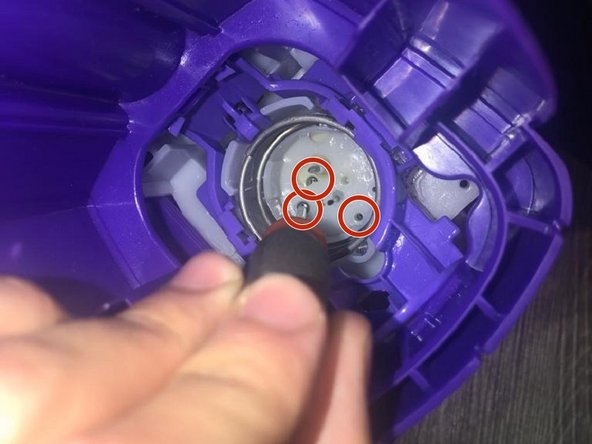

9. Use a Phillips #0 screwdriver to remove the three screws (1.4x6.0mm) that hold the motor compartment.

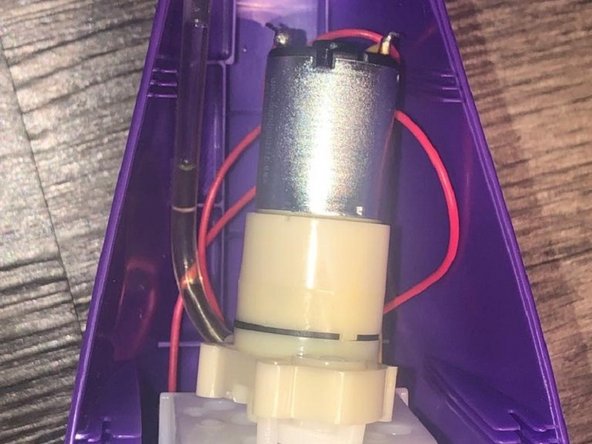

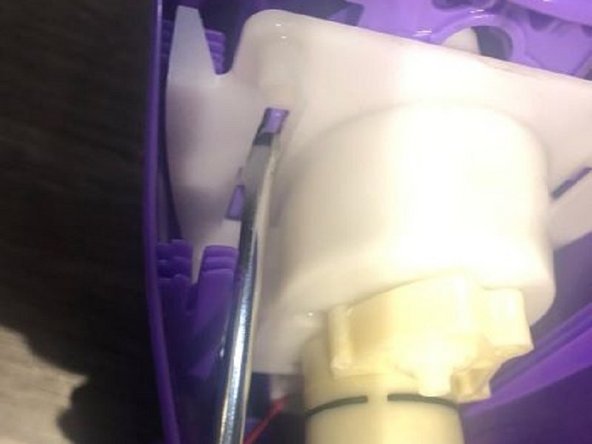

10. Once removed detach the motor.

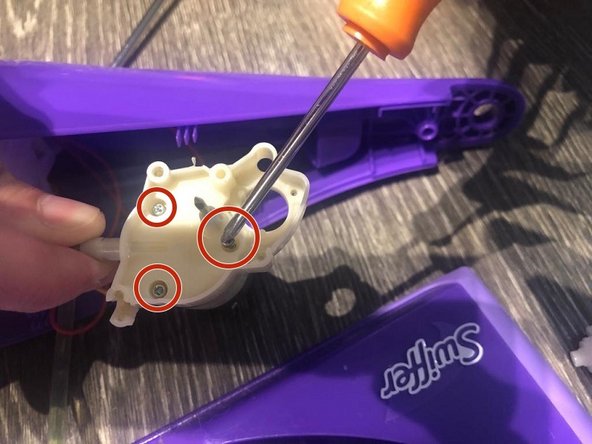

11. Using the same Phillips screwdriver (#0) remove another three screws (1.2x10mm) to release the motor.

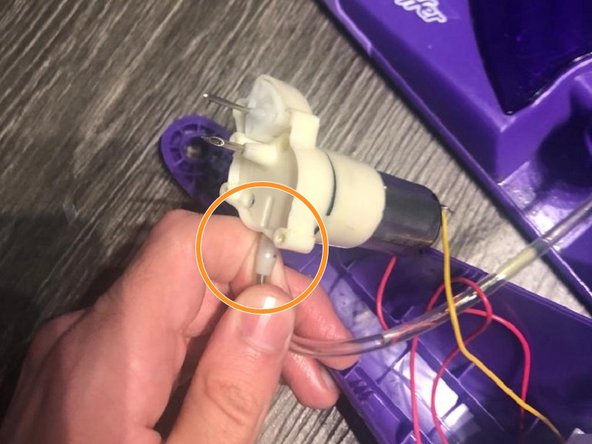

12. Detach the cleaning solution tube.

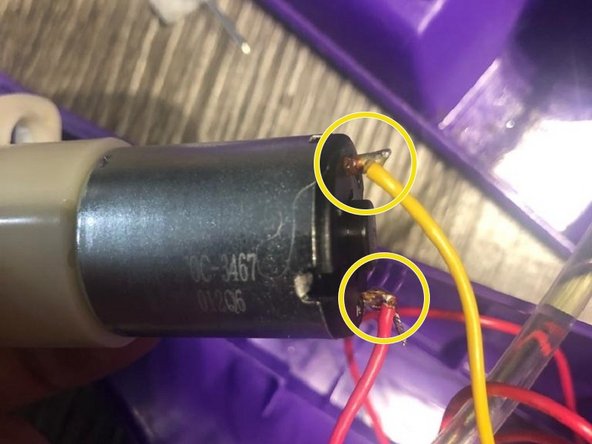

13. Remove the two power cables and the motor will be released.
