Admiral AGD4675YQ3 Drum Belt Replacement

ID: 165618

Description: The unthinkable has happened. Your AGD4675YQ3...

Steps:

  1. Unplug the dryer's power cord.
    2. Step image
  2. Remove the lint catcher.
    3. Step image
  3. When removing the screws, ensure that they do not fall into the lint chute. If this happens, a deeper disassembly will be required that this guide does not cover.
  4. Use your Phillips #1 screwdriver and remove both 25.4 mm Phillips #1 screws.
    5. Step image Step image

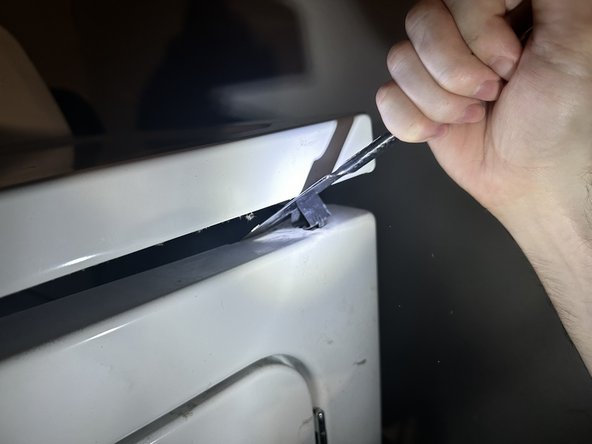

  5. While keeping to the right corner, slip the butter knife in the slit above the dryer door.
  6. If you cannot push the butter knife in, you are likely hitting the clip. Simply move the knife a bit more to the left till it slips in deep.
  7. Pry up with moderate force and the clip holding the lid will pop up.
  8. Repeat on the left side.
    9. Step image Step image
  9. Fully lift the lid so that it stays in an upright position.
    10. Step image
  10. Disconnect the electrical harness on the right side.
    11. Step image
  11. Remove the 18.4 mm hex cap screws on the left and right side with the 8 mm socket wrench.
  12. Remove the clips underneath the screws on the left and right side.
    13. Step image Step image
  13. Using your thumb to hold the drum in place, pull the front panel of the dryer away from the drum.
  14. There are two clips in the bottom left and right sides that will pop out when you pull.
  15. Set the front panel to the side.
    16. Step image Step image
  16. Place a shoebox sized item under the drum to hold the drum in place.
  17. Keep the item as far to the left as possible so you will have room to work on the assembly underneath, located on the right.
    18. Step image
  18. If your drum belt has snapped, you can just pull the old belt out and proceed to step 13.

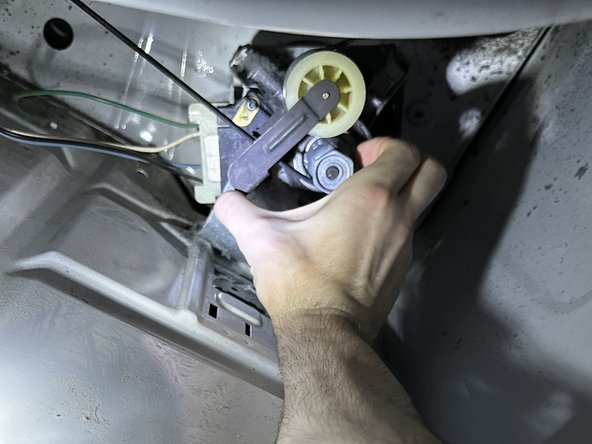

  19. Grip the pulley bar and squeeze to push the pulley away from the drum.
  20. Pull the belt off of the gear.
    21. Step image Step image Step image
  21. Remove the belt from the drum.
    22. Step image
  22. Place the new belt around the drum.
  23. Make sure the grooved part of the belt is facing the grooved part of the drum.
  24. The serial number and other identifying information on the belt should be facing up.
    25. Step image

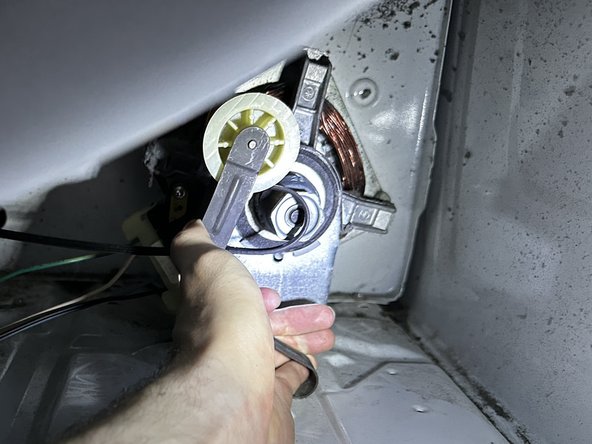

  25. Form a loop with the belt and pull the loop under the pulley.
  26. Squeeze the pulley bar and place the loop around the gear.
    27. Step image Step image Step image
  27. Rotate the drum counter clockwise and ensure the belt is covering the drum groove all the way around.
  28. If the belt is out of place, simply tap it into place with your fingertips.
    29. Step image
