How to Apply the Power Button Board Adhesive in your Kobo Clara eReader

ID: 170957

Description: Use this guide to replace the adhesive...

Steps:

1. If you're transferring your power button board to a new screen, follow the next three steps. Otherwise, skip to this step to install a new power button board.
2. Use tweezers, or your fingers, to remove any remaining adhesive on the bottom of your power button board.
3. Make sure the board is as clean as possible so the replacement adhesive sits evenly on the frame.

4. Measure and cut a few strips of a thin double-sided tape, like Tesa tape, and apply it to the bottom of the power button board.
5. Peel off the liners from the strips to expose the adhesive.

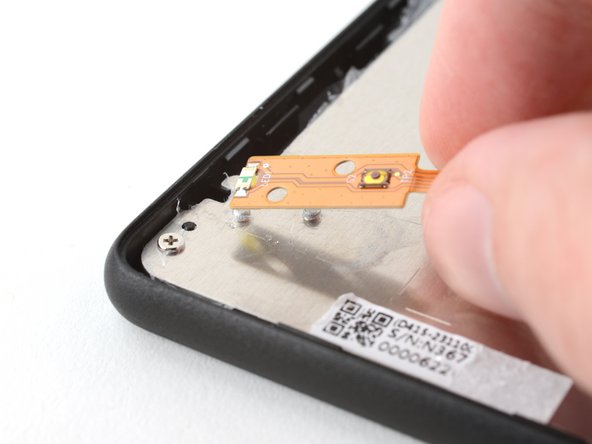

6. Place the power button board on its spot on the frame, making sure it's aligned with its two pegs.

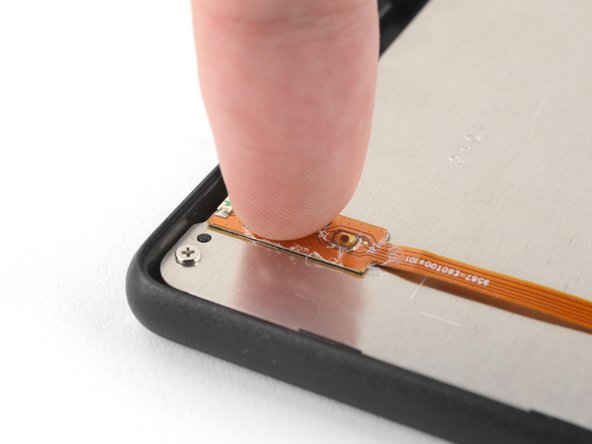

7. Press down on the power button board to adhere it.

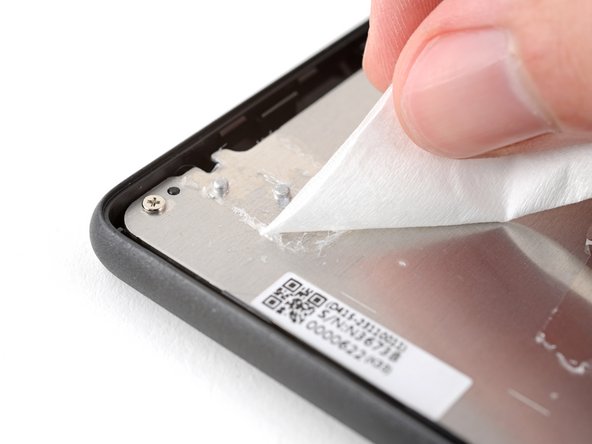

8. Use a spudger, or your fingers, to remove the remaining adhesive at the power button board's spot on the frame.
9. Apply a few drops of isopropyl alcohol (>90%) to the power button board's spot on the frame.
10. Use a coffee filter or a lint-free cloth to wipe off any remaining adhesive residue.
11. Make sure the spot is as clean as possible so the replacement adhesive sits evenly on the frame.

12. Peel off the liner on the bottom of the new power button board to expose the adhesive.
13. Place the power button board on its spot on the frame, making its aligned with its two pegs.

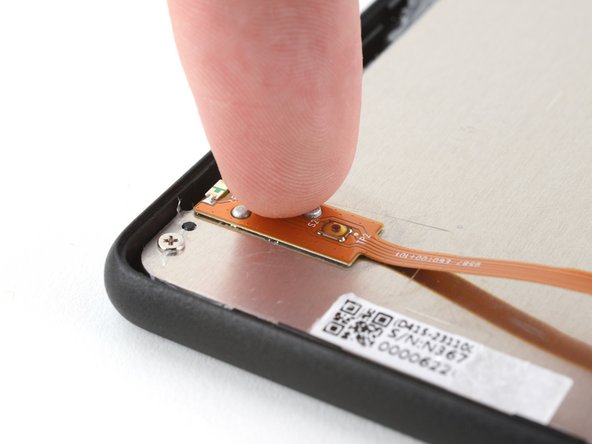

14. Press down on the power button board to adhere it.
